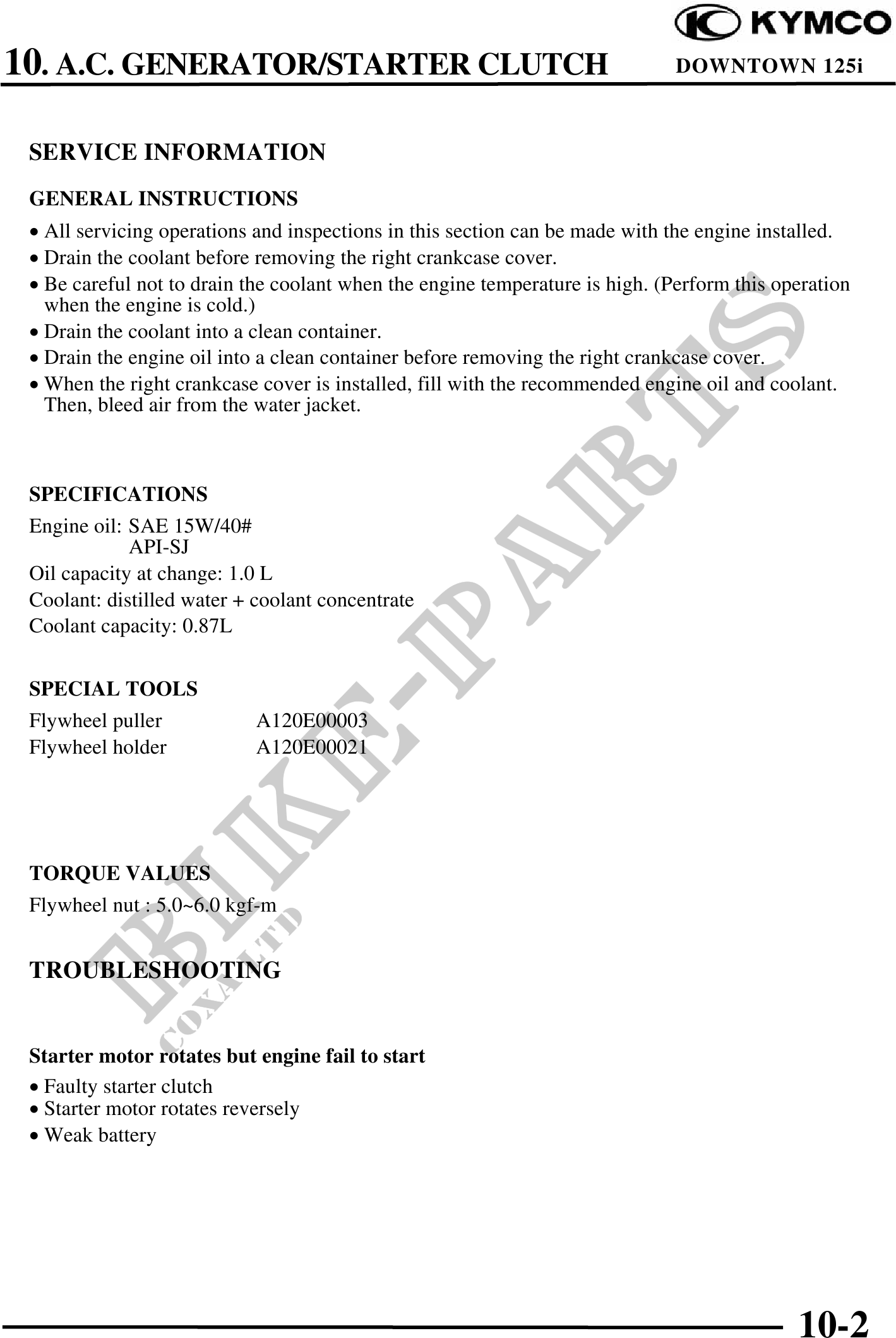

10. A.C. GENERATOR/STARTER CLUTCH DOWNTOWN 125i
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· All servicing operations and inspections in this section can be made with the engine installed.
· Drain the coolant before removing the right crankcase cover.
· Be careful not to drain the coolant when the engine temperature is high. (Perform this operation
when the engine is cold.)
· Drain the coolant into a clean container.
· Drain the engine oil into a clean container before removing the right crankcase cover.
· When the right crankcase cover is installed, fill with the recommended engine oil and coolant.
Then, bleed air from the water jacket.
SPECIFICATIONS
Engine oil: SAE 15W/40#
API-SJ
Oil capacity at change: 1.0 L
Coolant: distilled water + coolant concentrate
Coolant capacity: 0.87L
SPECIAL TOOLS
Flywheel puller A120E00003
Flywheel holder A120E00021
TORQUE VALUES
Flywheel nut : 5.0~6.0 kgf-m
TROUBLESHOOTING
Starter motor rotates but engine fail to start
· Faulty starter clutch
· Starter motor rotates reversely
· Weak battery
10-2
