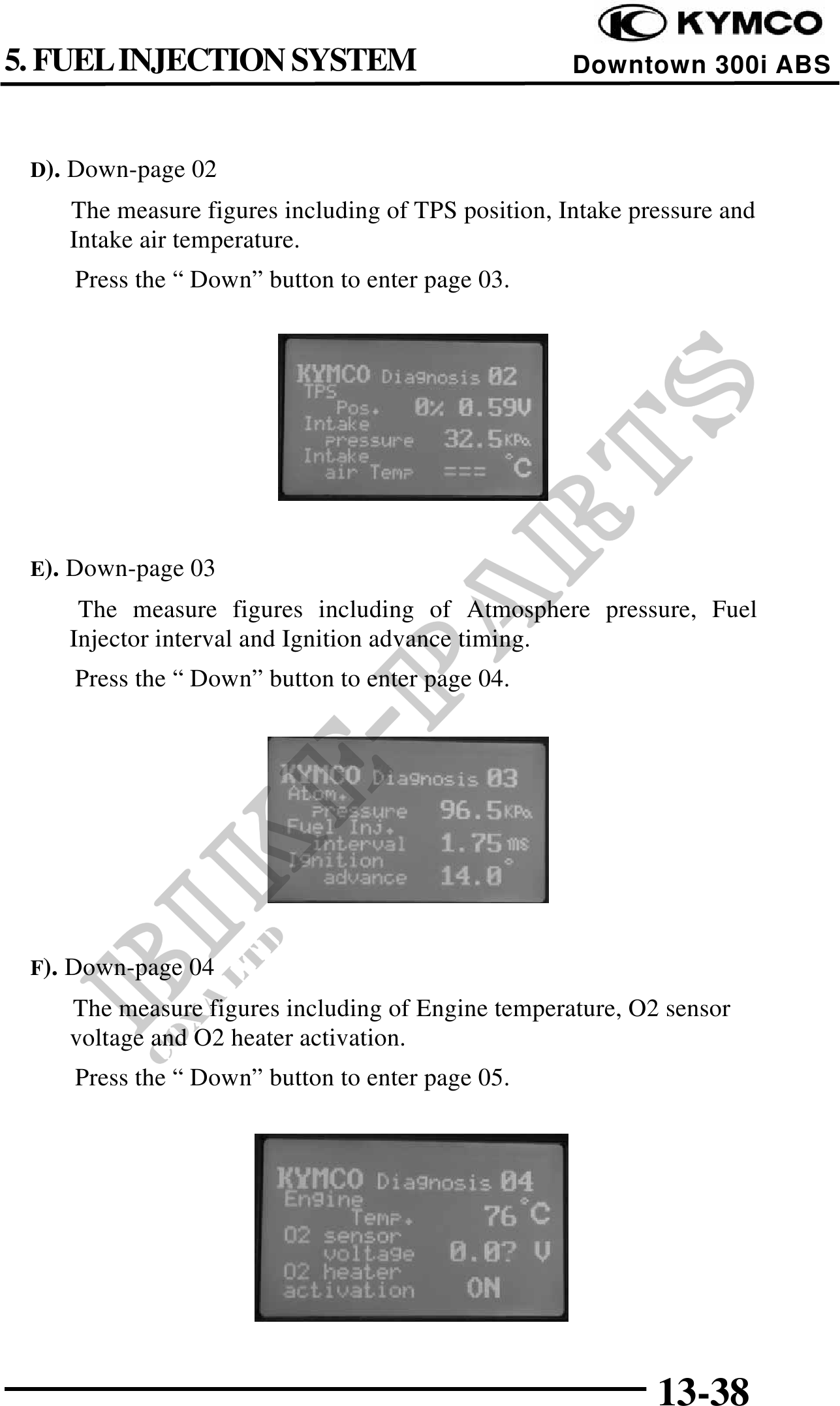

          5. FUEL INJECTION SYSTEM                            Downtown 300i ABS



 D). Down-page 02
    The measure figures including of TPS position, Intake pressure and
    Intake air temperature.
    Press the " Down" button to enter page 03.




 E). Down-page 03
     The measure figures including of Atmosphere pressure, Fuel
    Injector interval and Ignition advance timing.
    Press the " Down" button to enter page 04.




 F). Down-page 04
    The measure figures including of Engine temperature, O2 sensor
    voltage and O2 heater activation.
    Press the " Down" button to enter page 05.




                                                            13-38
