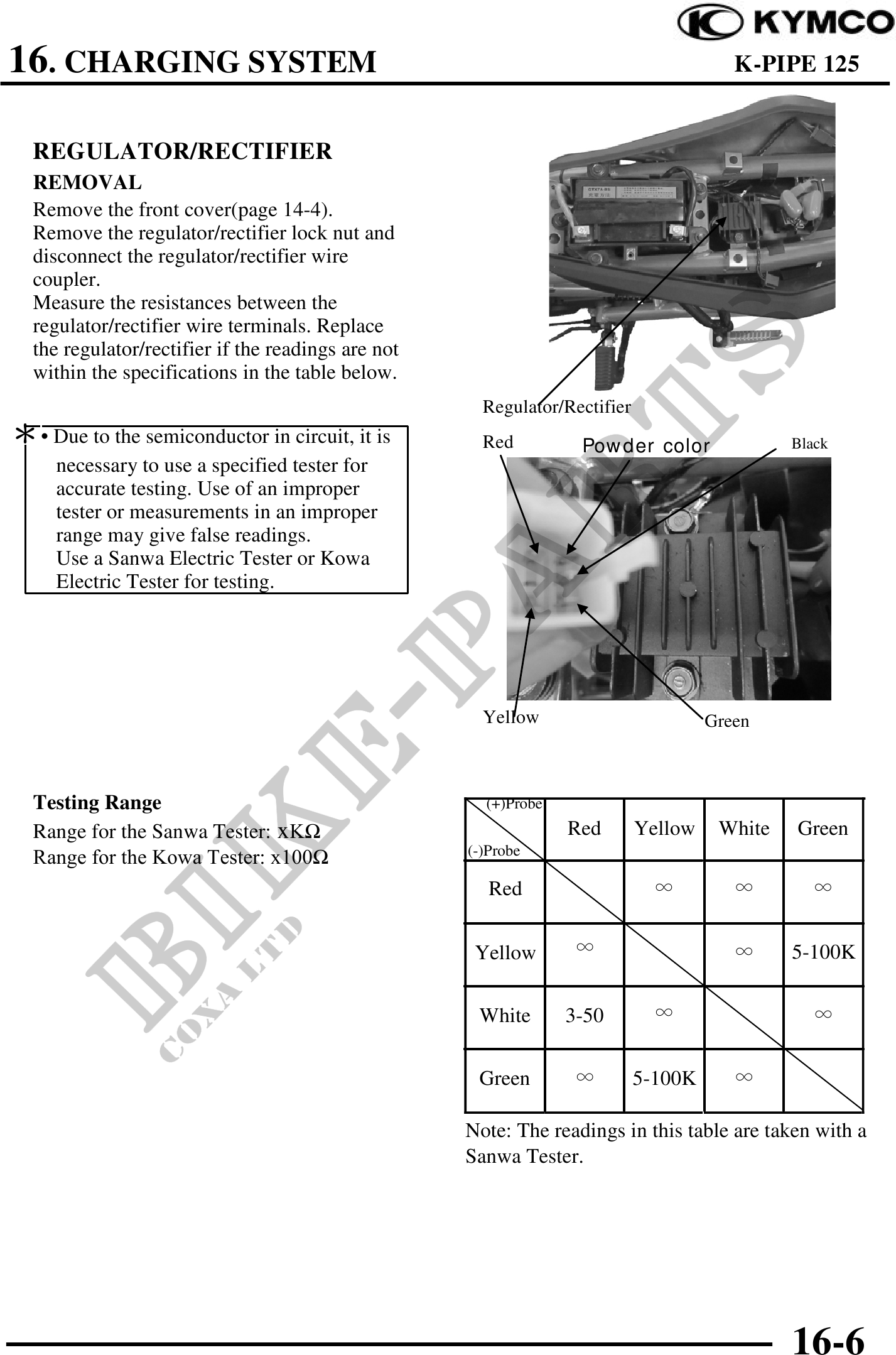

16. CHARGING SYSTEM SPORT CUB 125
K-PIPE 125
REGULATOR/RECTIFIER
REMOVAL
Remove the front cover(page 14-4).
Remove the regulator/rectifier lock nut and
disconnect the regulator/rectifier wire
coupler.
Measure the resistances between the
regulator/rectifier wire terminals. Replace
the regulator/rectifier if the readings are not
within the specifications in the table below.
Regulator/Rectifier
· Due to the semiconductor in circuit, it is Red Powder color Black
necessary to use a specified tester for
accurate testing. Use of an improper
tester or measurements in an improper
range may give false readings.
Use a Sanwa Electric Tester or Kowa
Electric Tester for testing.
Green
Yellow Green
Testing Range (+)Probe
Range for the Sanwa Tester: xK Red Yellow White Green
Range for the Kowa Tester: x100 (-)Probe
Red
Yellow 5-100K
White 3-50
Green 5-100K
Note: The readings in this table are taken with a
Sanwa Tester.
16-6
