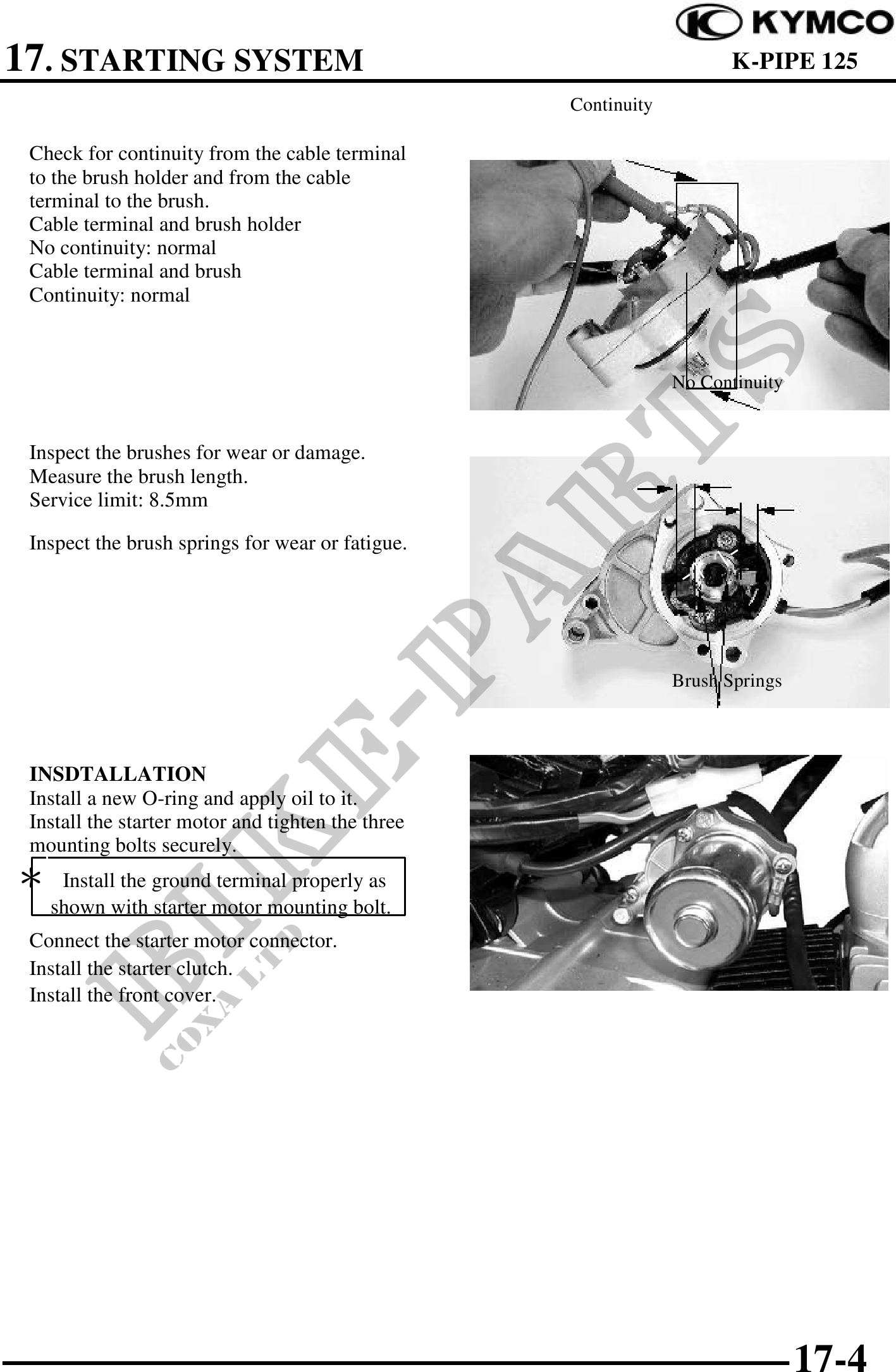

17. STARTING SYSTEM K-PIPE 125
Continuity
Check for continuity from the cable terminal
to the brush holder and from the cable
terminal to the brush.
Cable terminal and brush holder
No continuity: normal
Cable terminal and brush
Continuity: normal
No Continuity
Inspect the brushes for wear or damage.
Measure the brush length.
Service limit: 8.5mm
Inspect the brush springs for wear or fatigue.
Brush Springs
INSDTALLATION
Install a new O-ring and apply oil to it.
Install the starter motor and tighten the three
mounting bolts securely.
Install the ground terminal properly as
shown with starter motor mounting bolt.
Connect the starter motor connector.
Install the starter clutch.
Install the front cover.
17-4
