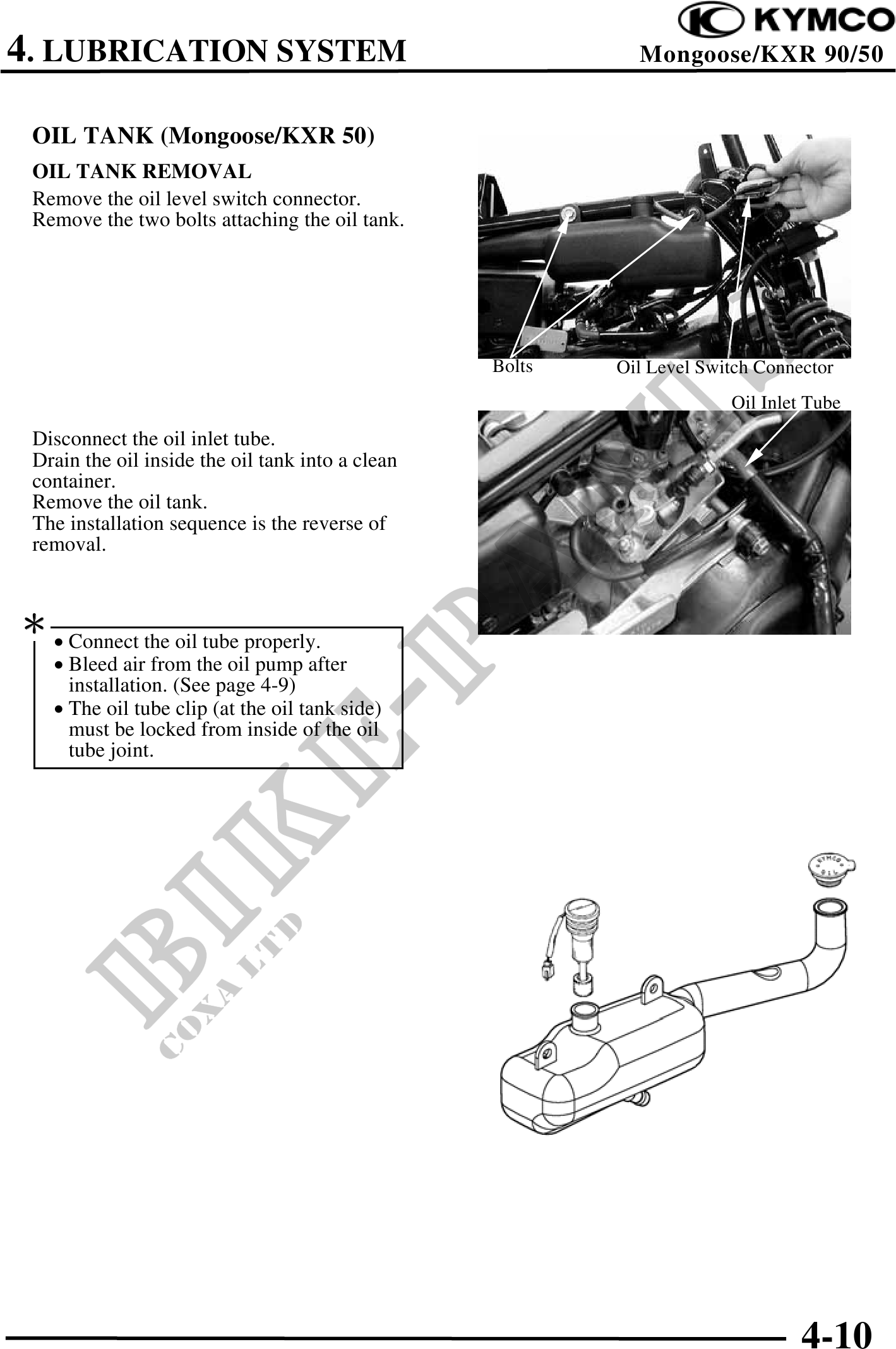

4. LUBRICATION SYSTEM Mongoose/KXR 90/50
OIL TANK (Mongoose/KXR 50)
OIL TANK REMOVAL
Remove the oil level switch connector.
Remove the two bolts attaching the oil tank.
Bolts Oil Level Switch Connector
Oil Inlet Tube
Disconnect the oil inlet tube.
Drain the oil inside the oil tank into a clean
container.
Remove the oil tank.
The installation sequence is the reverse of
removal.
· Connect the oil tube properly.
· Bleed air from the oil pump after
installation. (See page 4-9)
· The oil tube clip (at the oil tank side)
must be locked from inside of the oil
tube joint.
4-10
