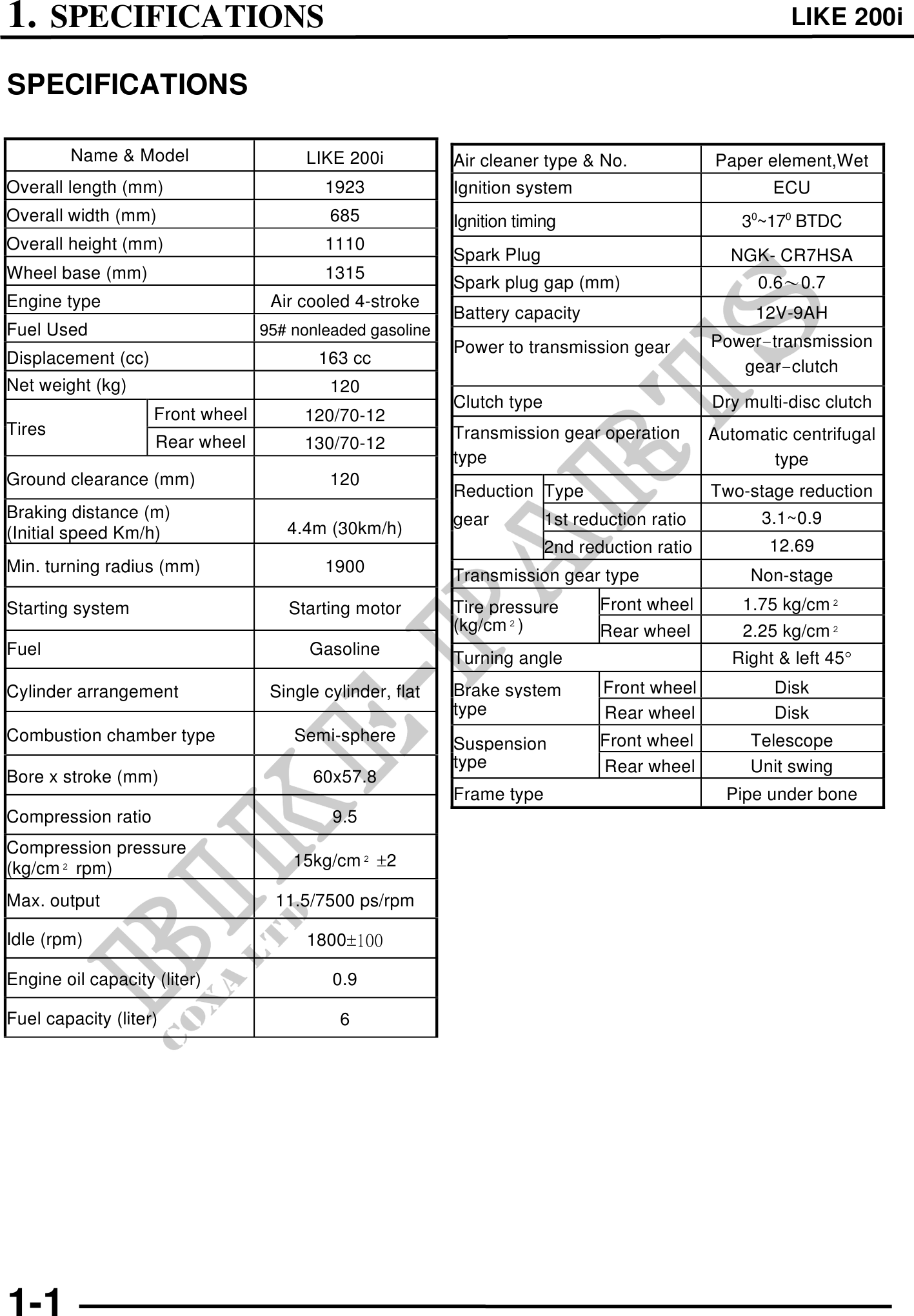

1. SPECIFICATIONS LIKE 200i
SPECIFICATIONS
Name & Model LIKE 200i Air cleaner type & No. Paper element,Wet
Overall length (mm) 1923 Ignition system ECU
Overall width (mm) 685 Ignition timing 30~170 BTDC
Overall height (mm) 1110
Spark Plug NGK- CR7HSA
Wheel base (mm) 1315
Spark plug gap (mm) 0.60.7
Engine type Air cooled 4-stroke
Battery capacity 12V-9AH
Fuel Used 95# nonleaded gasoline
Power to transmission gear Power-transmission
Displacement (cc) 163 cc gear-clutch
Net weight (kg) 120
Clutch type Dry multi-disc clutch
Front wheel 120/70-12
Tires Transmission gear operation Automatic centrifugal
Rear wheel 130/70-12
type type
Ground clearance (mm) 120
Reduction Type Two-stage reduction
Braking distance (m) gear 1st reduction ratio 3.1~0.9
(Initial speed Km/h) 4.4m (30km/h)
2nd reduction ratio 12.69
Min. turning radius (mm) 1900
Transmission gear type Non-stage
Starting system Starting motor Tire pressure Front wheel 1.75 kg/cm
(kg/cm) Rear wheel 2.25 kg/cm
Fuel Gasoline Turning angle Right & left 45
Cylinder arrangement Single cylinder, flat Brake system Front wheel Disk
type Rear wheel Disk
Combustion chamber type Semi-sphere Suspension Front wheel Telescope
type Rear wheel Unit swing
Bore x stroke (mm) 60x57.8
Frame type Pipe under bone
Compression ratio 9.5
Compression pressure
(kg/cm rpm) 15kg/cm 2
Max. output 11.5/7500 ps/rpm
Idle (rpm) 1800100
Engine oil capacity (liter) 0.9
Fuel capacity (liter) 6
1-1
