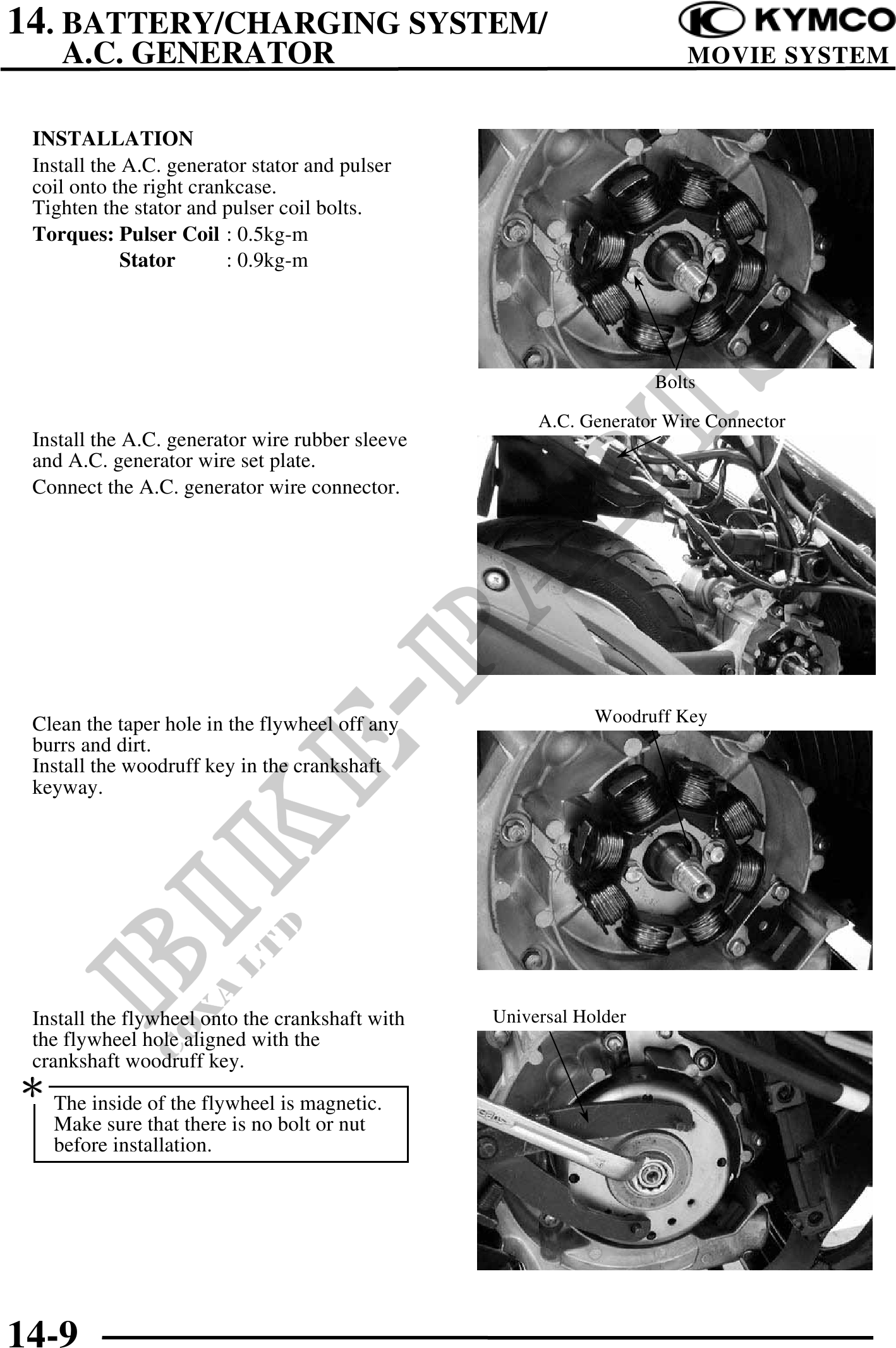

14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR MOVIE SYSTEM
INSTALLATION
Install the A.C. generator stator and pulser
coil onto the right crankcase.
Tighten the stator and pulser coil bolts.
Torques: Pulser Coil : 0.5kg-m
Stator : 0.9kg-m
Bolts
A.C. Generator Wire Connector
Install the A.C. generator wire rubber sleeve
and A.C. generator wire set plate.
Connect the A.C. generator wire connector.
Clean the taper hole in the flywheel off any Woodruff Key
burrs and dirt.
Install the woodruff key in the crankshaft
keyway.
Install the flywheel onto the crankshaft with Universal Holder
the flywheel hole aligned with the
crankshaft woodruff key.
The inside of the flywheel is magnetic.
Make sure that there is no bolt or nut
before installation.
14-9
