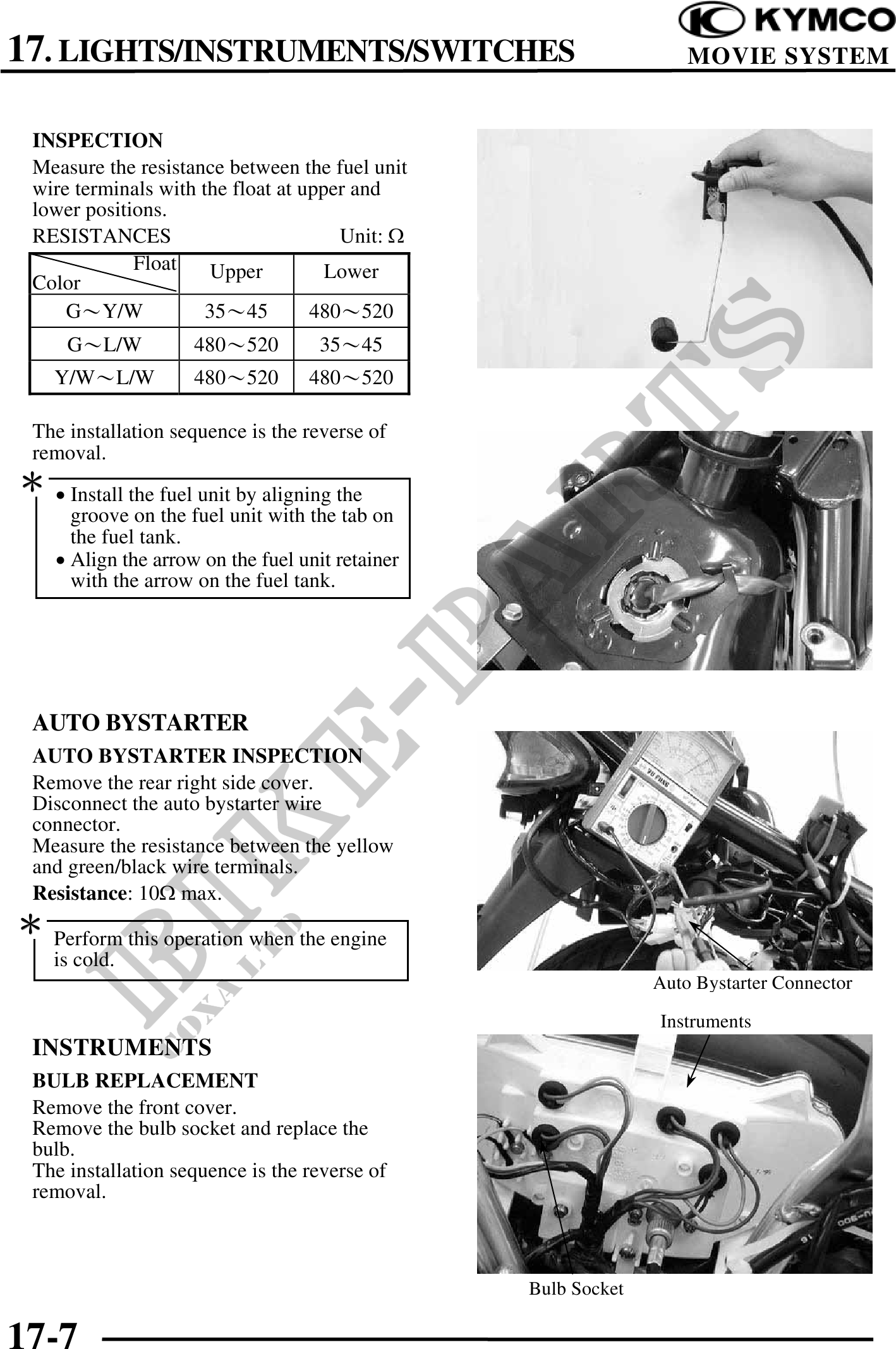

          17. LIGHTS/INSTRUMENTS/SWITCHES                                     MOVIE SYSTEM


 INSPECTION
 Measure the resistance between the fuel unit
 wire terminals with the float at upper and
 lower positions.
 RESISTANCES                          Unit:
             Float    Upper          Lower
 Color
     GY/W             3545         480520
     GL/W            480520          3545
    Y/WL/W           480520        480520

 The installation sequence is the reverse of
 removal.
 · Install the fuel unit by aligning the
      groove on the fuel unit with the tab on
      the fuel tank.
    · Align the arrow on the fuel unit retainer
      with the arrow on the fuel tank.




 AUTO BYSTARTER
 AUTO BYSTARTER INSPECTION
 Remove the rear right side cover.
 Disconnect the auto bystarter wire
 connector.
 Measure the resistance between the yellow
 and green/black wire terminals.
 Resistance: 10 max.
 Perform this operation when the engine
    is cold.
                                                                Auto Bystarter Connector

                                                                Instruments
 INSTRUMENTS
 BULB REPLACEMENT
 Remove the front cover.
 Remove the bulb socket and replace the
 bulb.
 The installation sequence is the reverse of
 removal.



                                                  Bulb Socket

17-7
