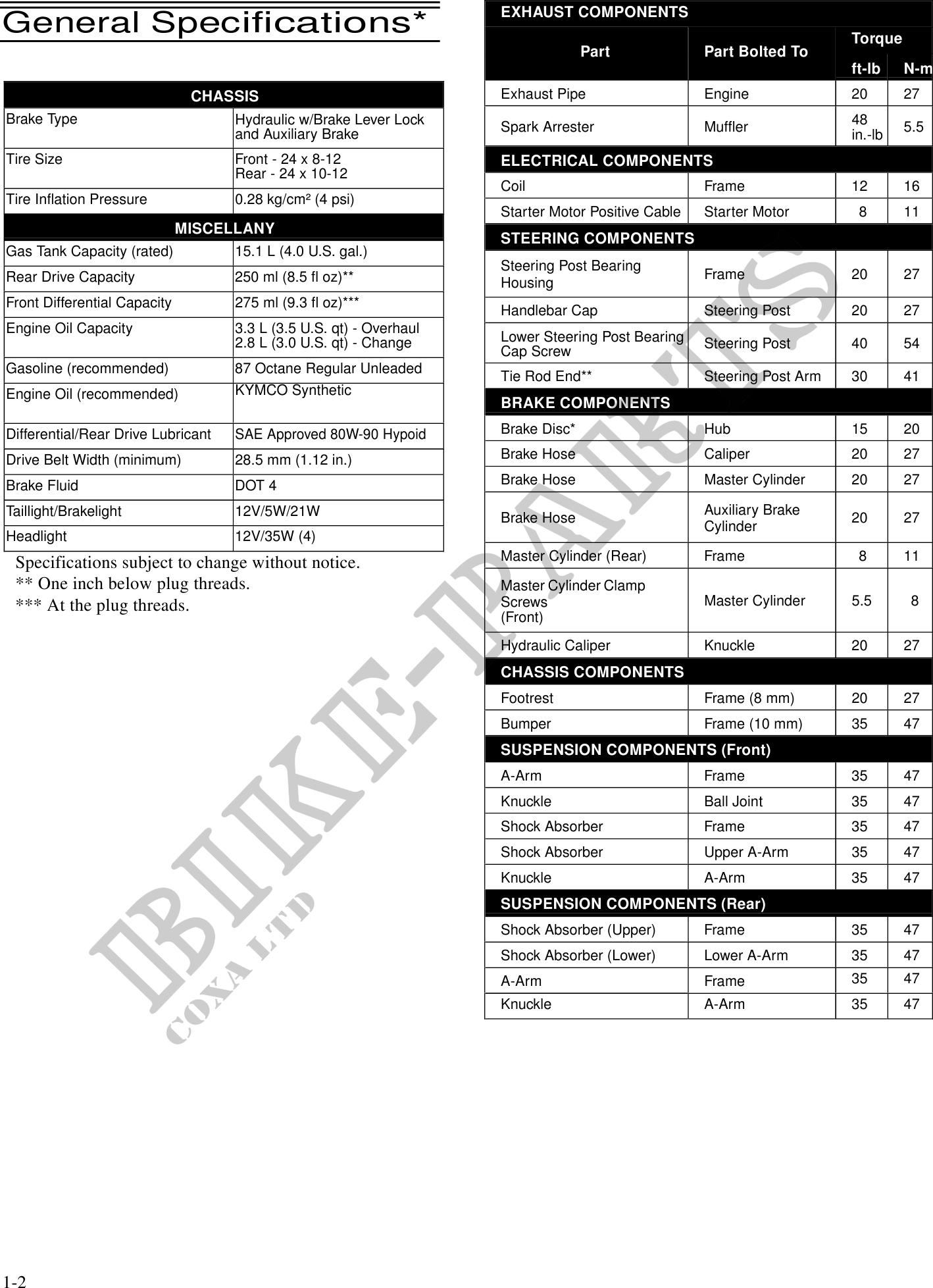

EXHAUST COMPONENTS General Specifications* Torque Part Part Bolted To ft-lb N-m CHASSIS Exhaust Pipe Engine 20 27 Brake Type Hydraulic w/Brake Lever Lock 48 Spark Arrester Muffler 5.5 and Auxiliary Brake in.-lb Tire Size Front - 24 x 8-12 ELECTRICAL COMPONENTS Rear - 24 x 10-12 Coil Frame 12 16 Tire Inflation Pressure 0.28 kg/cm (4 psi) Starter Motor Positive Cable Starter Motor 8 11 MISCELLANY STEERING COMPONENTS Gas Tank Capacity (rated) 15.1 L (4.0 U.S. gal.) Steering Post Bearing Rear Drive Capacity 250 ml (8.5 fl oz)** Frame 20 27 Housing Front Differential Capacity 275 ml (9.3 fl oz)*** Handlebar Cap Steering Post 20 27 Engine Oil Capacity 3.3 L (3.5 U.S. qt) - Overhaul 2.8 L (3.0 U.S. qt) - Change Lower Steering Post Bearing Steering Post 40 54 Cap Screw Gasoline (recommended) 87 Octane Regular Unleaded Tie Rod End** Steering Post Arm 30 41 Engine Oil (recommended) KYMCO Synthetic BRAKE COMPONENTS Differential/Rear Drive Lubricant SAE Approved 80W-90 Hypoid Brake Disc* Hub 15 20 Drive Belt Width (minimum) 28.5 mm (1.12 in.) Brake Hose Caliper 20 27 Brake Fluid DOT 4 Brake Hose Master Cylinder 20 27 Taillight/Brakelight 12V/5W/21W Auxiliary Brake Brake Hose 20 27 Cylinder Headlight 12V/35W (4) Master Cylinder (Rear) Frame 8 11 Specifications subject to change without notice. ** One inch below plug threads. Master Cylinder Clamp *** At the plug threads. Screws Master Cylinder 5.5 8 (Front) Hydraulic Caliper Knuckle 20 27 CHASSIS COMPONENTS Footrest Frame (8 mm) 20 27 Bumper Frame (10 mm) 35 47 SUSPENSION COMPONENTS (Front) A-Arm Frame 35 47 Knuckle Ball Joint 35 47 Shock Absorber Frame 35 47 Shock Absorber Upper A-Arm 35 47 Knuckle A-Arm 35 47 SUSPENSION COMPONENTS (Rear) Shock Absorber (Upper) Frame 35 47 Shock Absorber (Lower) Lower A-Arm 35 47 A-Arm Frame 35 47 Knuckle A-Arm 35 47 1-2
