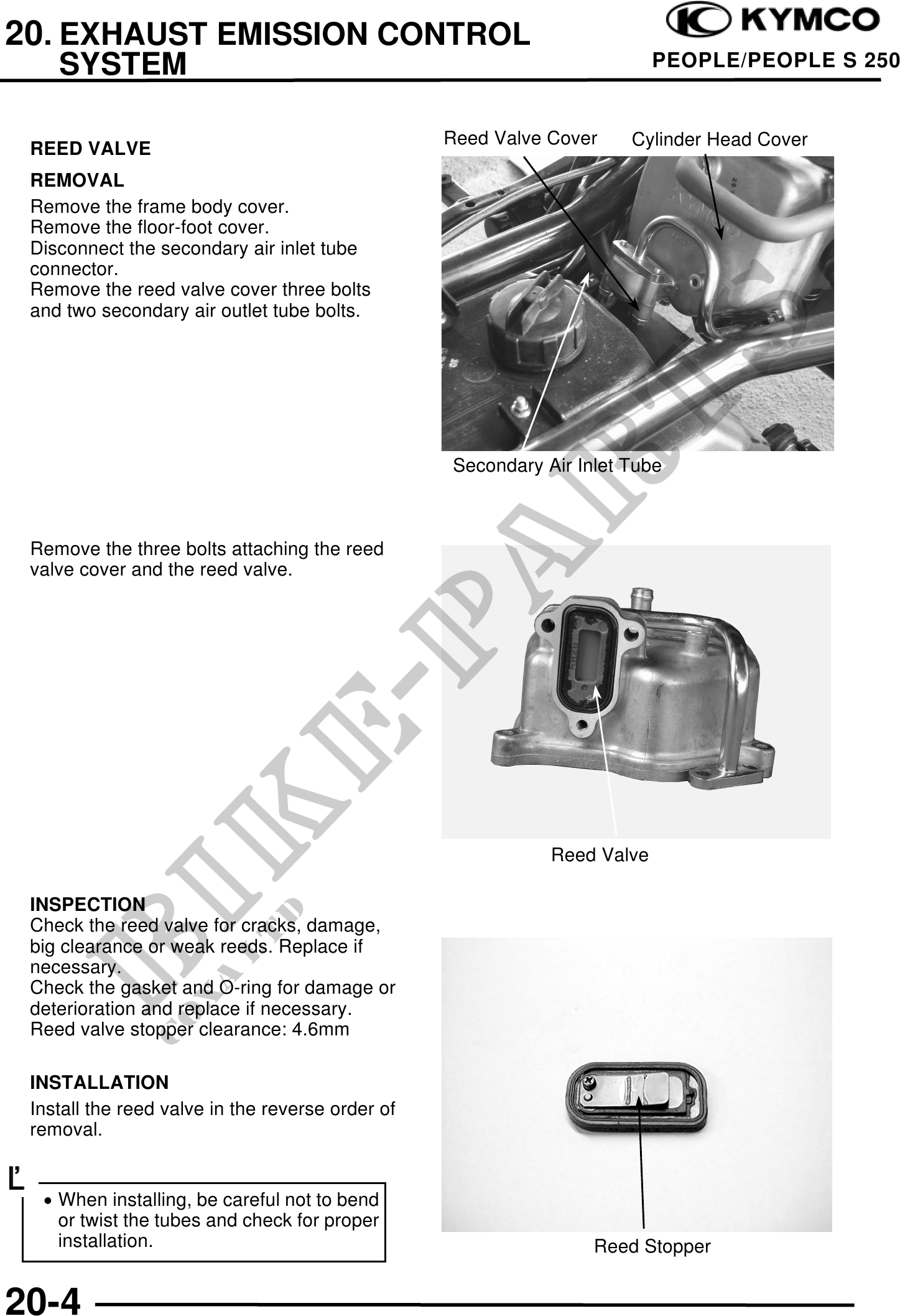

20. EXHAUST EMISSION CONTROL SYSTEM PEOPLE/PEOPLE S 250 Reed Valve Cover Cylinder Head Cover REED VALVE REMOVAL Remove the frame body cover. Remove the floor-foot cover. Disconnect the secondary air inlet tube connector. Remove the reed valve cover three bolts and two secondary air outlet tube bolts. Secondary Air Inlet Tube Remove the three bolts attaching the reed valve cover and the reed valve. Reed Valve INSPECTION Check the reed valve for cracks, damage, big clearance or weak reeds. Replace if necessary. Check the gasket and O-ring for damage or deterioration and replace if necessary. Reed valve stopper clearance: 4.6mm INSTALLATION Install the reed valve in the reverse order of removal. · When installing, be careful not to bend or twist the tubes and check for proper installation. Reed Stopper 20-4
