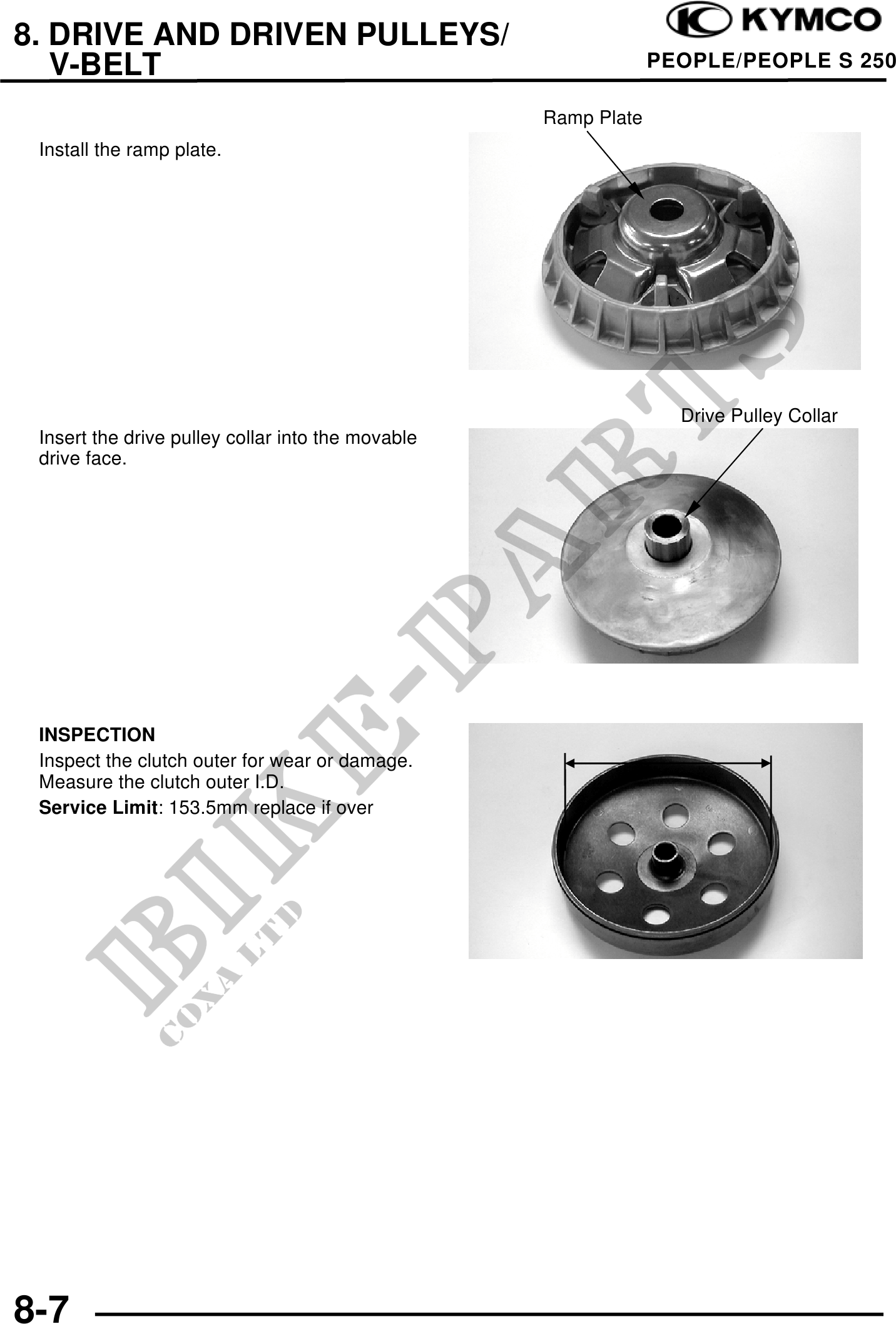

          8. DRIVE AND DRIVEN PULLEYS/
   V-BELT                                                       PEOPLE/PEOPLE S 250

                                                   Ramp Plate
 Install the ramp plate.




                                                                  Drive Pulley Collar
 Insert the drive pulley collar into the movable
 drive face.




 INSPECTION
 Inspect the clutch outer for wear or damage.
 Measure the clutch outer I.D.
 Service Limit: 153.5mm replace if over




8-7
