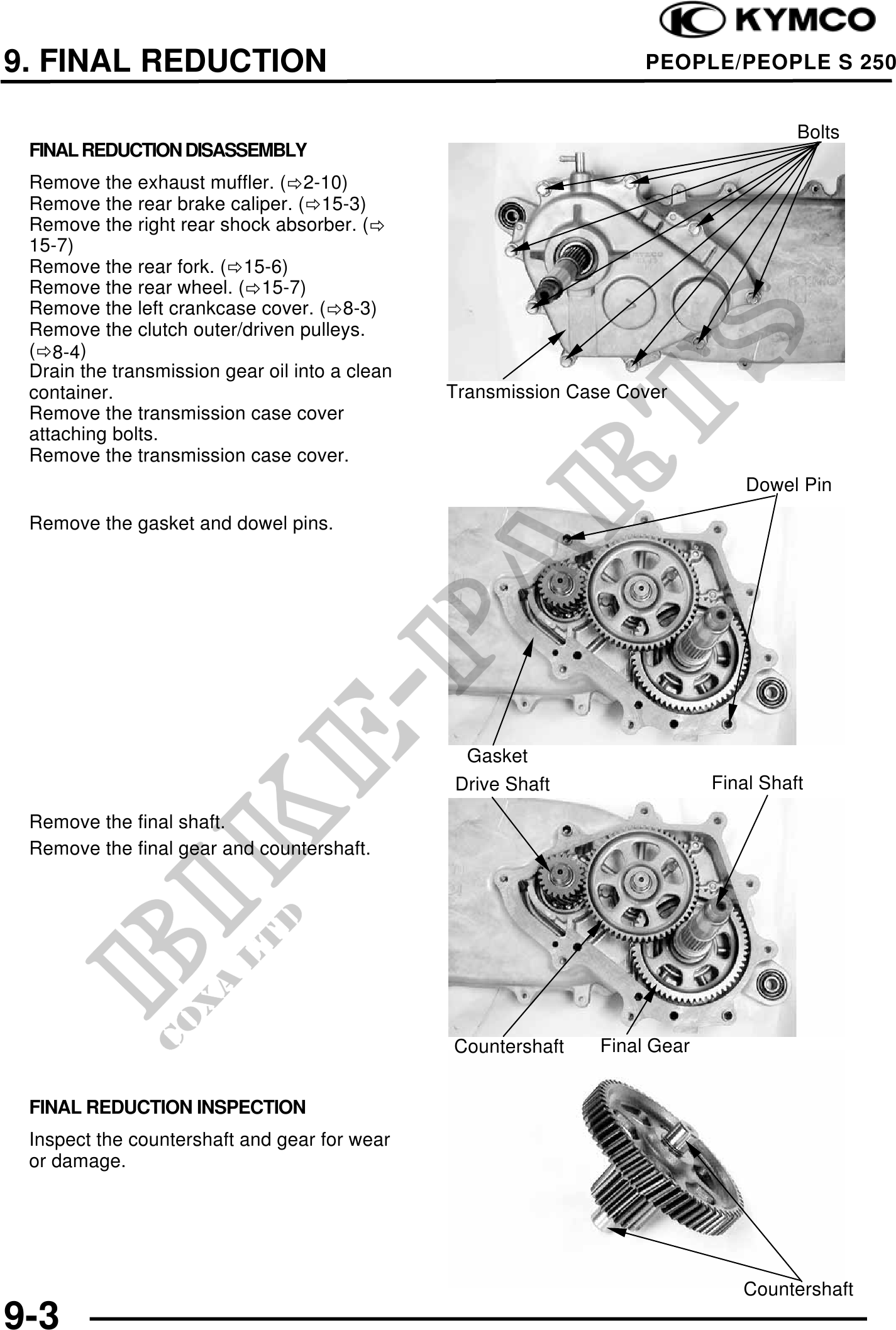

9. FINAL REDUCTION PEOPLE/PEOPLE S 250
Bolts
FINAL REDUCTION DISASSEMBLY
Remove the exhaust muffler. ( 2-10)
Remove the rear brake caliper. ( 15-3)
Remove the right rear shock absorber. (
15-7)
Remove the rear fork. ( 15-6)
Remove the rear wheel. ( 15-7)
Remove the left crankcase cover. ( 8-3)
Remove the clutch outer/driven pulleys.
( 8-4)
Drain the transmission gear oil into a clean
container. Transmission Case Cover
Remove the transmission case cover
attaching bolts.
Remove the transmission case cover.
Dowel Pin
Remove the gasket and dowel pins.
Gasket
Drive Shaft Final Shaft
Remove the final shaft.
Remove the final gear and countershaft.
Countershaft Final Gear
FINAL REDUCTION INSPECTION
Inspect the countershaft and gear for wear
or damage.
Countershaft
9-3
