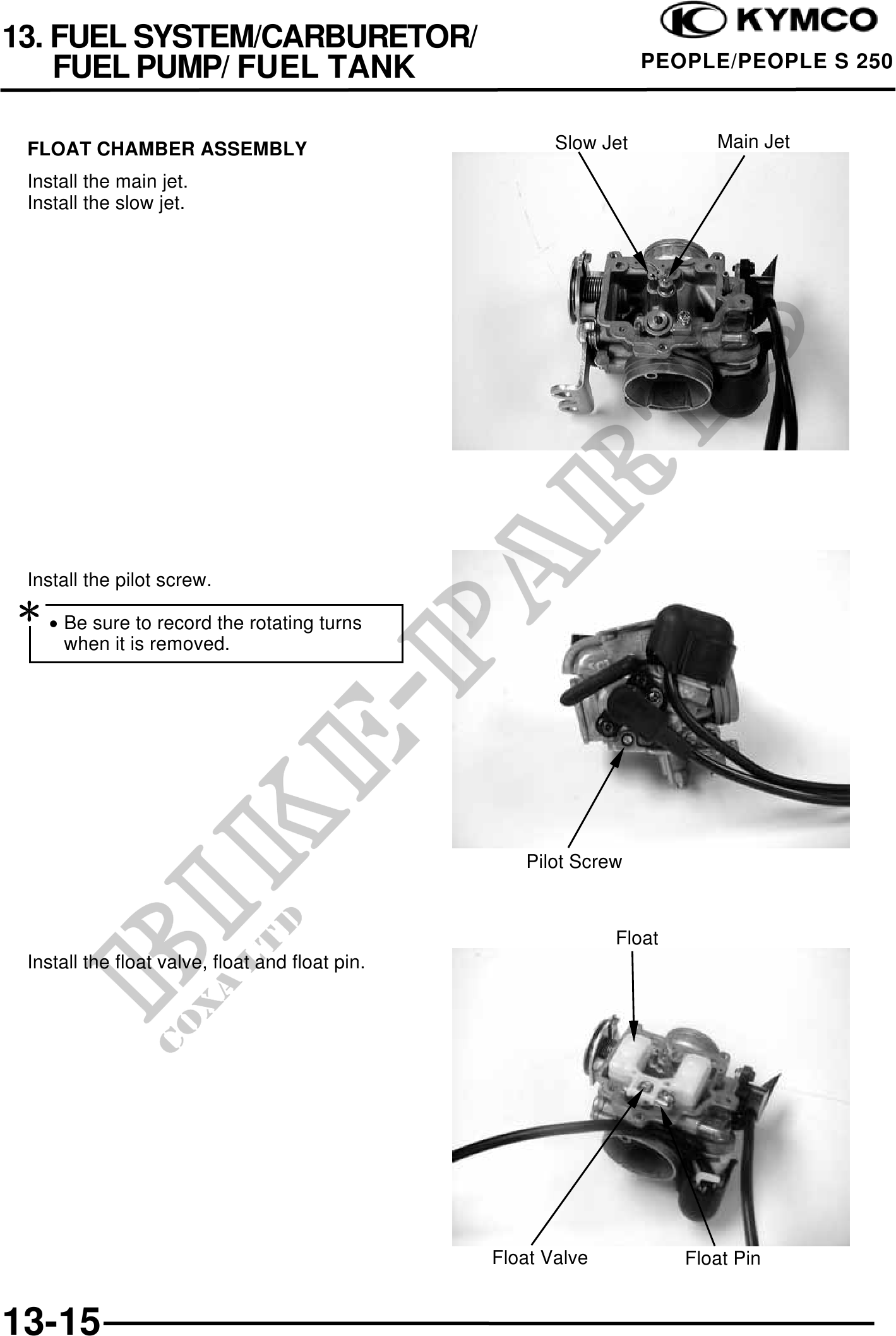

          13. FUEL SYSTEM/CARBURETOR/
    FUEL PUMP/ FUEL TANK                                           PEOPLE/PEOPLE S 250



 FLOAT CHAMBER ASSEMBLY                                 Slow Jet          Main Jet

 Install the main jet.
 Install the slow jet.




 Install the pilot screw.
 · Be sure to record the rotating turns
     when it is removed.




                                                    Pilot Screw


                                                               Float
 Install the float valve, float and float pin.




                                                 Float Valve           Float Pin


13-15
