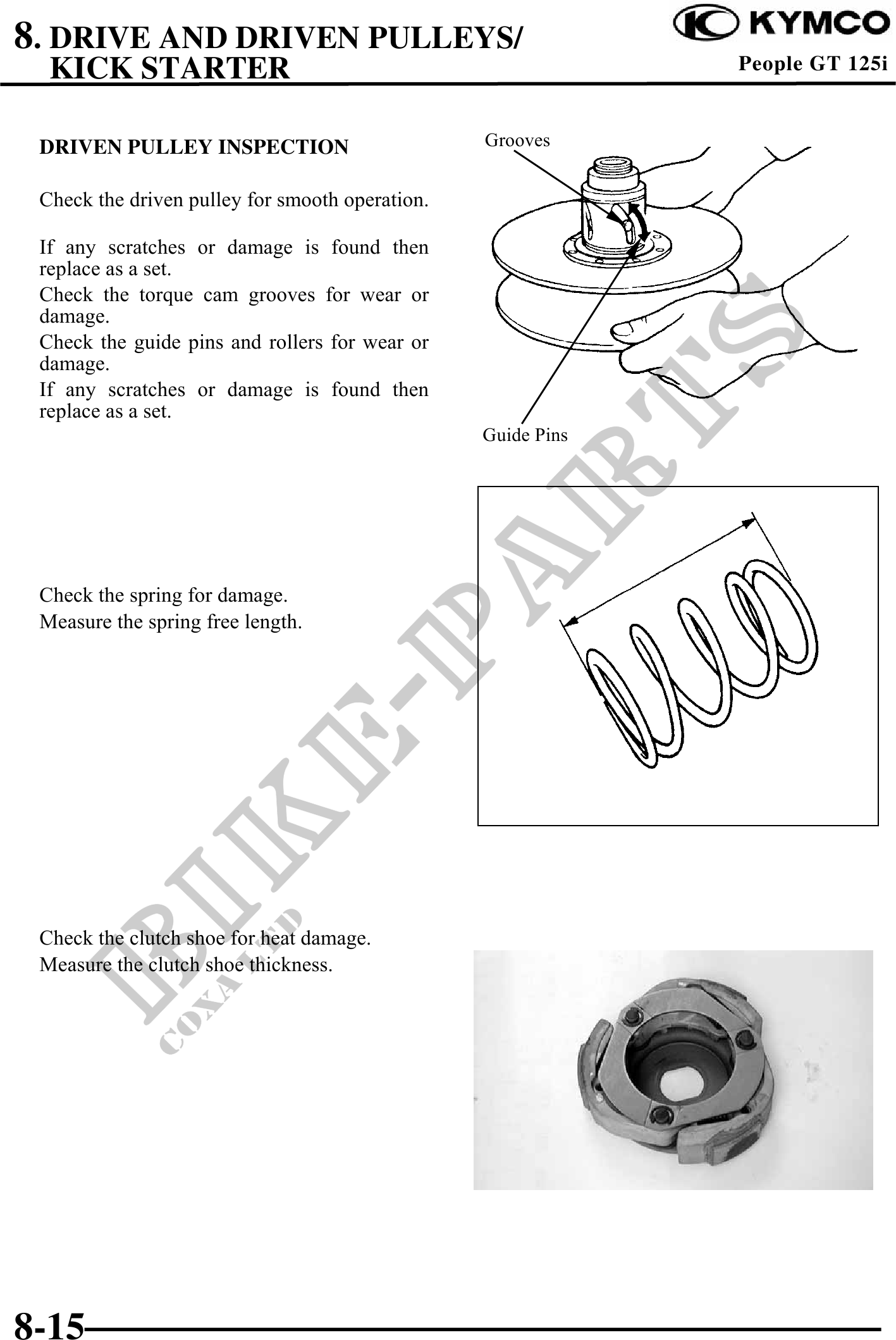

8. DRIVE AND DRIVEN PULLEYS/
KICK STARTER People GT 125i
DRIVEN PULLEY INSPECTION Grooves
Check the driven pulley for smooth operation.
If any scratches or damage is found then
replace as a set.
Check the torque cam grooves for wear or
damage.
Check the guide pins and rollers for wear or
damage.
If any scratches or damage is found then
replace as a set.
Guide Pins
Check the spring for damage.
Measure the spring free length.
Service limit:
DINK 200i: 130 mm (5.2 in)
DINK 125: 82 mm (3.28 in)
Check the clutch shoe for heat damage.
Measure the clutch shoe thickness.
Service limit (A): 2 mm (0.08 in)
8-15
