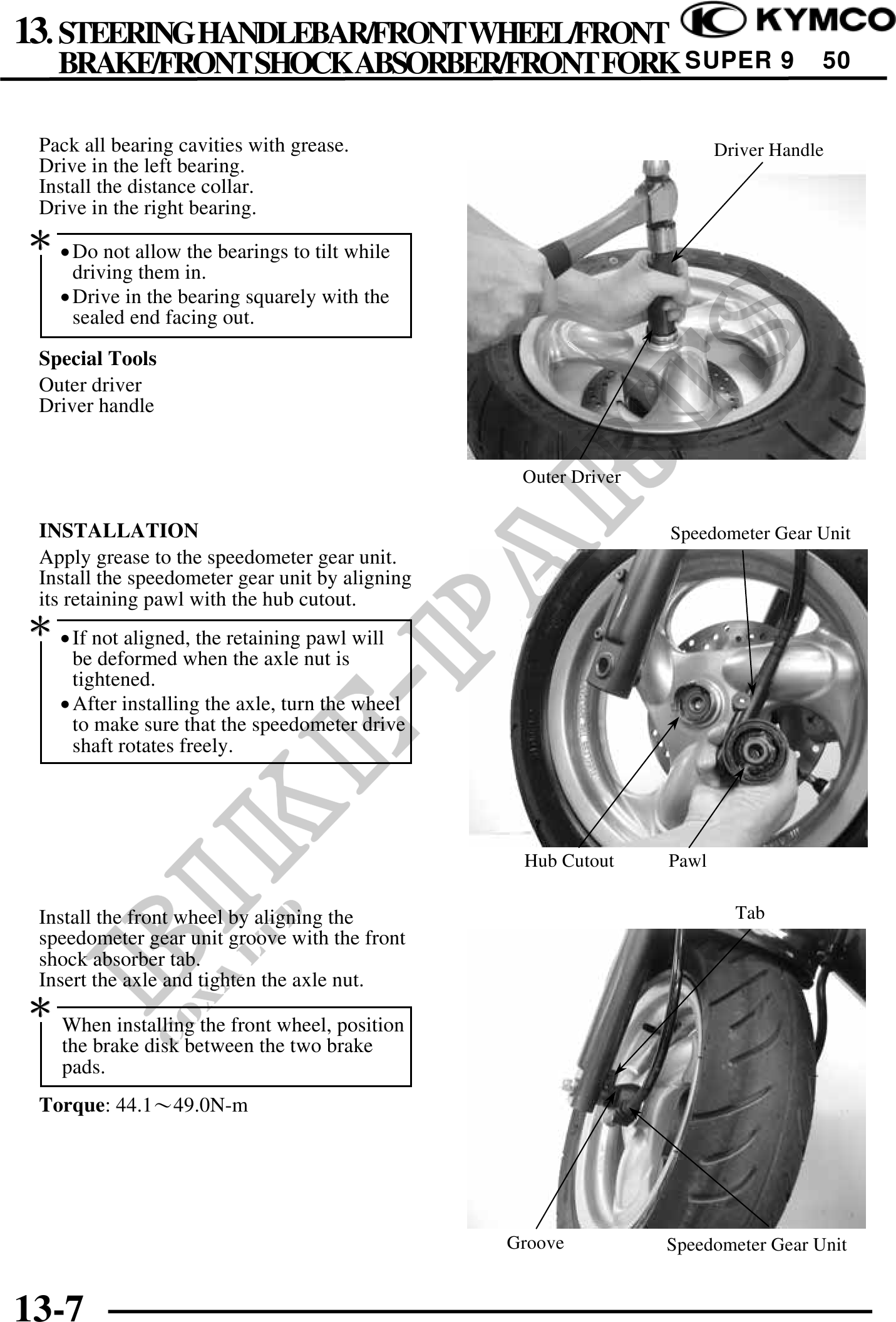

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50
Pack all bearing cavities with grease. Driver Handle
Drive in the left bearing.
Install the distance collar.
Drive in the right bearing.
· Do not allow the bearings to tilt while
driving them in.
· Drive in the bearing squarely with the
sealed end facing out.
Special Tools
Outer driver
Driver handle
Outer Driver
INSTALLATION Speedometer Gear Unit
Apply grease to the speedometer gear unit.
Install the speedometer gear unit by aligning
its retaining pawl with the hub cutout.
· If not aligned, the retaining pawl will
be deformed when the axle nut is
tightened.
· After installing the axle, turn the wheel
to make sure that the speedometer drive
shaft rotates freely.
Hub Cutout Pawl
Install the front wheel by aligning the Tab
speedometer gear unit groove with the front
shock absorber tab.
Insert the axle and tighten the axle nut.
When installing the front wheel, position
the brake disk between the two brake
pads.
Torque: 44.149.0N-m
Groove Speedometer Gear Unit
13-7
