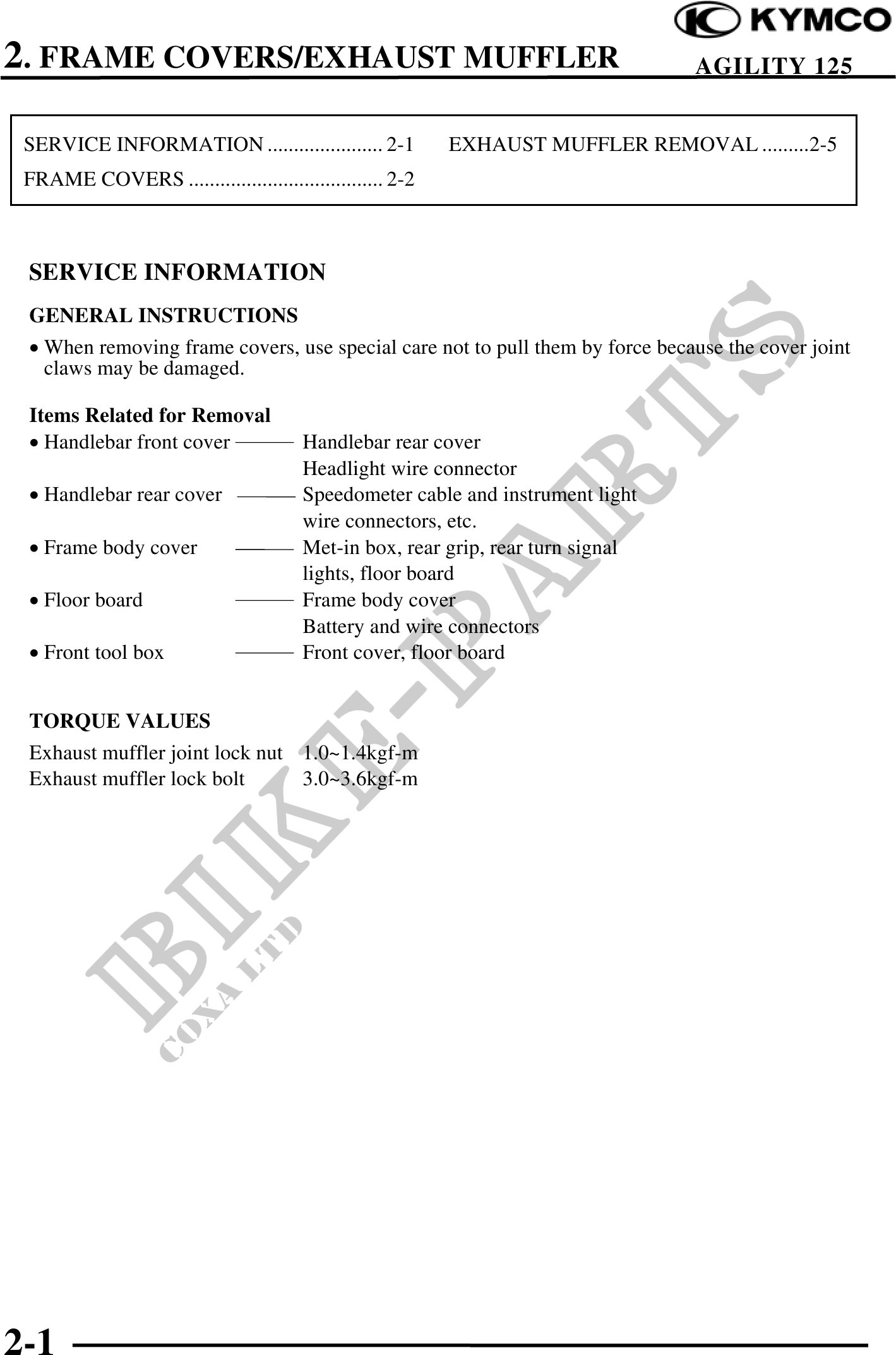

2. FRAME COVERS/EXHAUST MUFFLER AGILITY 125
SERVICE INFORMATION ...................... 2-1 EXHAUST MUFFLER REMOVAL .........2-5
FRAME COVERS ..................................... 2-2
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· When removing frame covers, use special care not to pull them by force because the cover joint
claws may be damaged.
Items Related for Removal
· Handlebar front cover Handlebar rear cover
Headlight wire connector
· Handlebar rear cover Speedometer cable and instrument light
wire connectors, etc.
· Frame body cover Met-in box, rear grip, rear turn signal
lights, floor board
· Floor board Frame body cover
Battery and wire connectors
· Front tool box Front cover, floor board
TORQUE VALUES
Exhaust muffler joint lock nut 1.0~1.4kgf-m
Exhaust muffler lock bolt 3.0~3.6kgf-m
2-1
