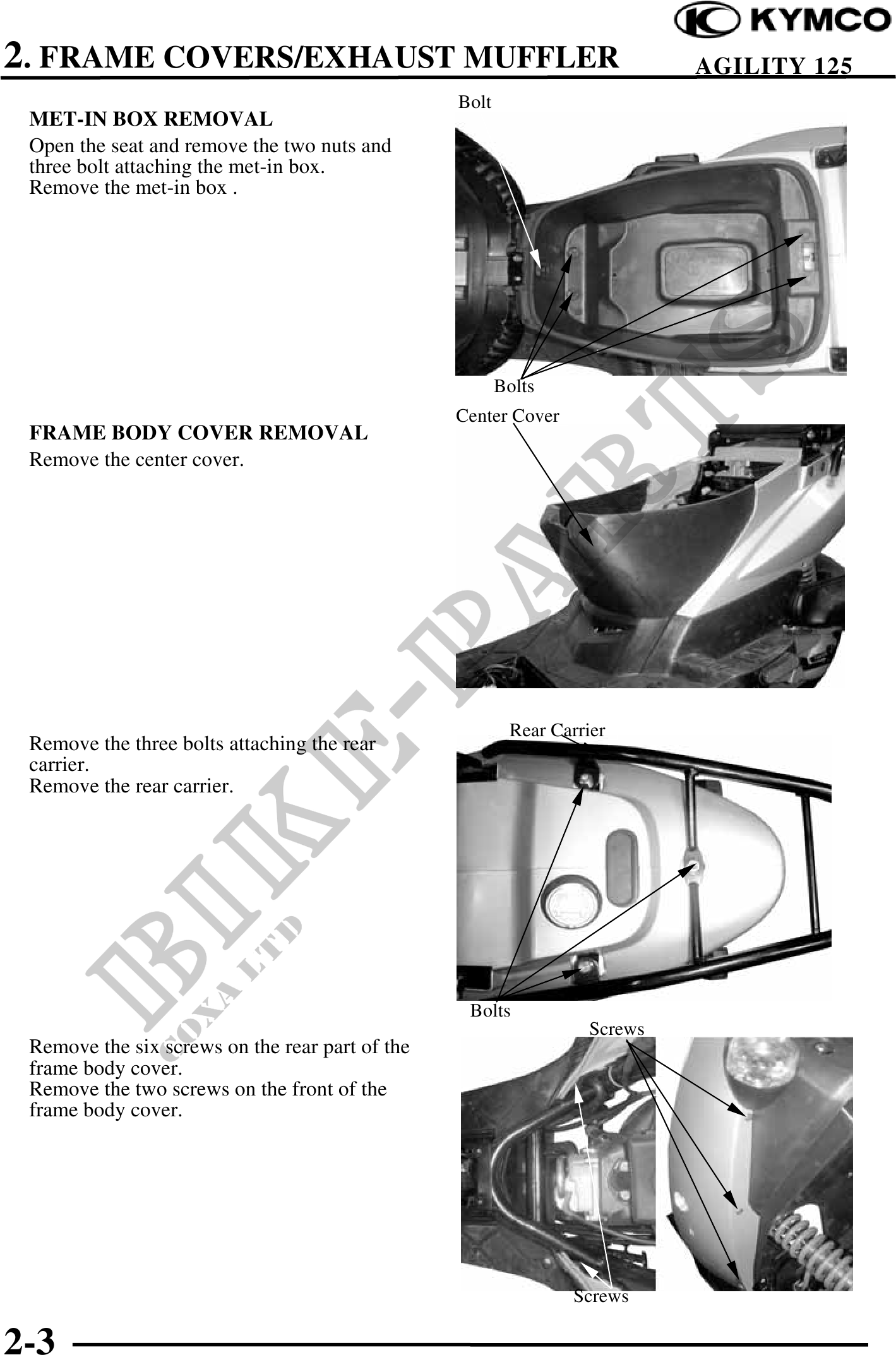

2. FRAME COVERS/EXHAUST MUFFLER AGILITY 125
Bolt
MET-IN BOX REMOVAL
Open the seat and remove the two nuts and
three bolt attaching the met-in box.
Remove the met-in box .
Bolts
Center Cover
FRAME BODY COVER REMOVAL
Remove the center cover.
Rear Carrier
Remove the three bolts attaching the rear
carrier.
Remove the rear carrier.
Bolts
Screws
Remove the six screws on the rear part of the
frame body cover.
Remove the two screws on the front of the
frame body cover.
Screws
2-3
