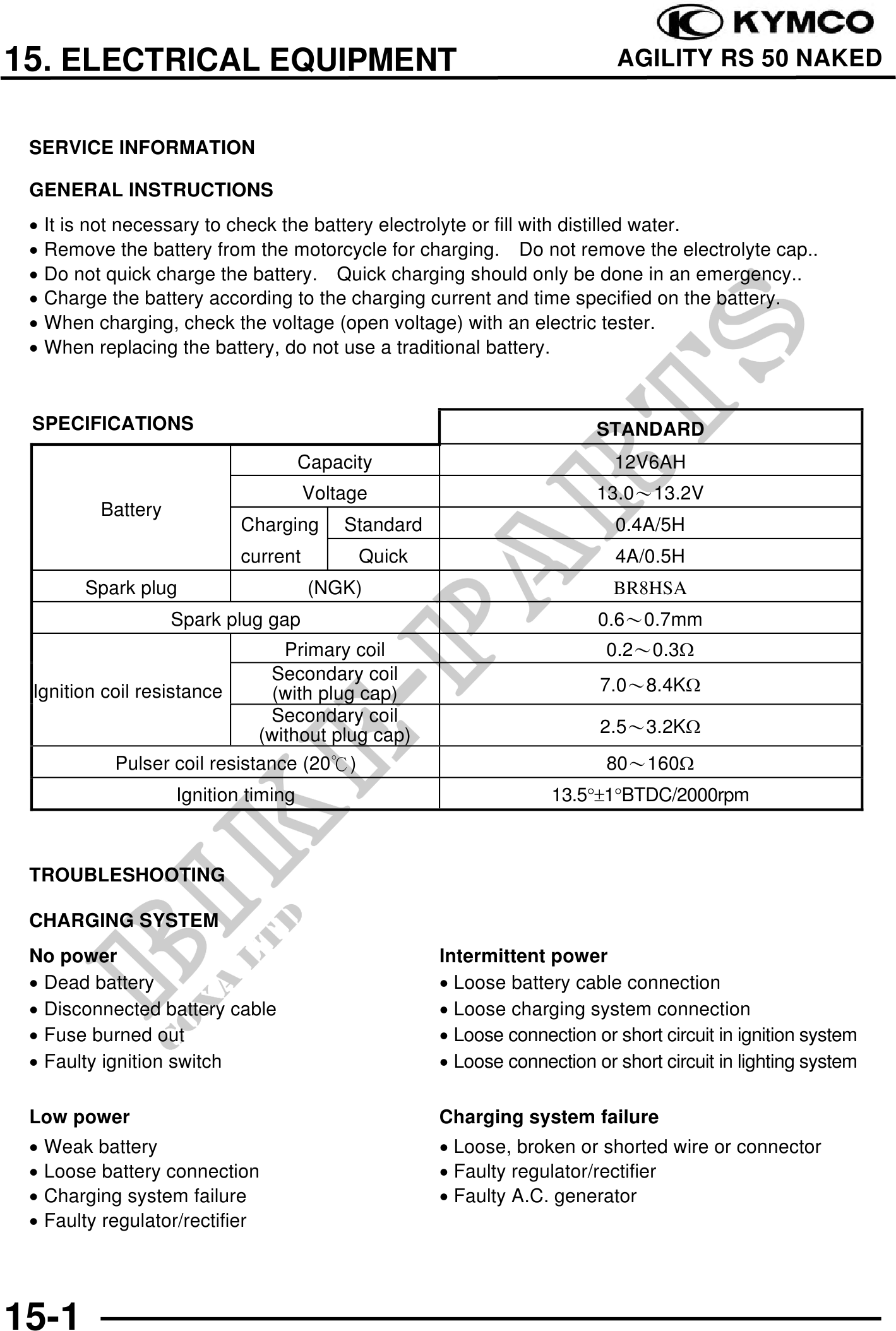

15. ELECTRICAL EQUIPMENT AGILITY RS 50 NAKED
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· It is not necessary to check the battery electrolyte or fill with distilled water.
· Remove the battery from the motorcycle for charging. Do not remove the electrolyte cap..
· Do not quick charge the battery. Quick charging should only be done in an emergency..
· Charge the battery according to the charging current and time specified on the battery.
· When charging, check the voltage (open voltage) with an electric tester.
· When replacing the battery, do not use a traditional battery.
SPECIFICATIONS STANDARD
Capacity 12V6AH
Voltage 13.013.2V
Battery
Charging Standard 0.4A/5H
current Quick 4A/0.5H
Spark plug (NGK) BR8HSA
Spark plug gap 0.60.7mm
Primary coil 0.20.3
Secondary coil
Ignition coil resistance (with plug cap) 7.08.4K
Secondary coil
(without plug cap) 2.53.2K
Pulser coil resistance (20) 80160
Ignition timing 13.5°1°BTDC/2000rpm
TROUBLESHOOTING
CHARGING SYSTEM
No power Intermittent power
· Dead battery · Loose battery cable connection
· Disconnected battery cable · Loose charging system connection
· Fuse burned out · Loose connection or short circuit in ignition system
· Faulty ignition switch · Loose connection or short circuit in lighting system
Low power Charging system failure
· Weak battery · Loose, broken or shorted wire or connector
· Loose battery connection · Faulty regulator/rectifier
· Charging system failure · Faulty A.C. generator
· Faulty regulator/rectifier
15-1
