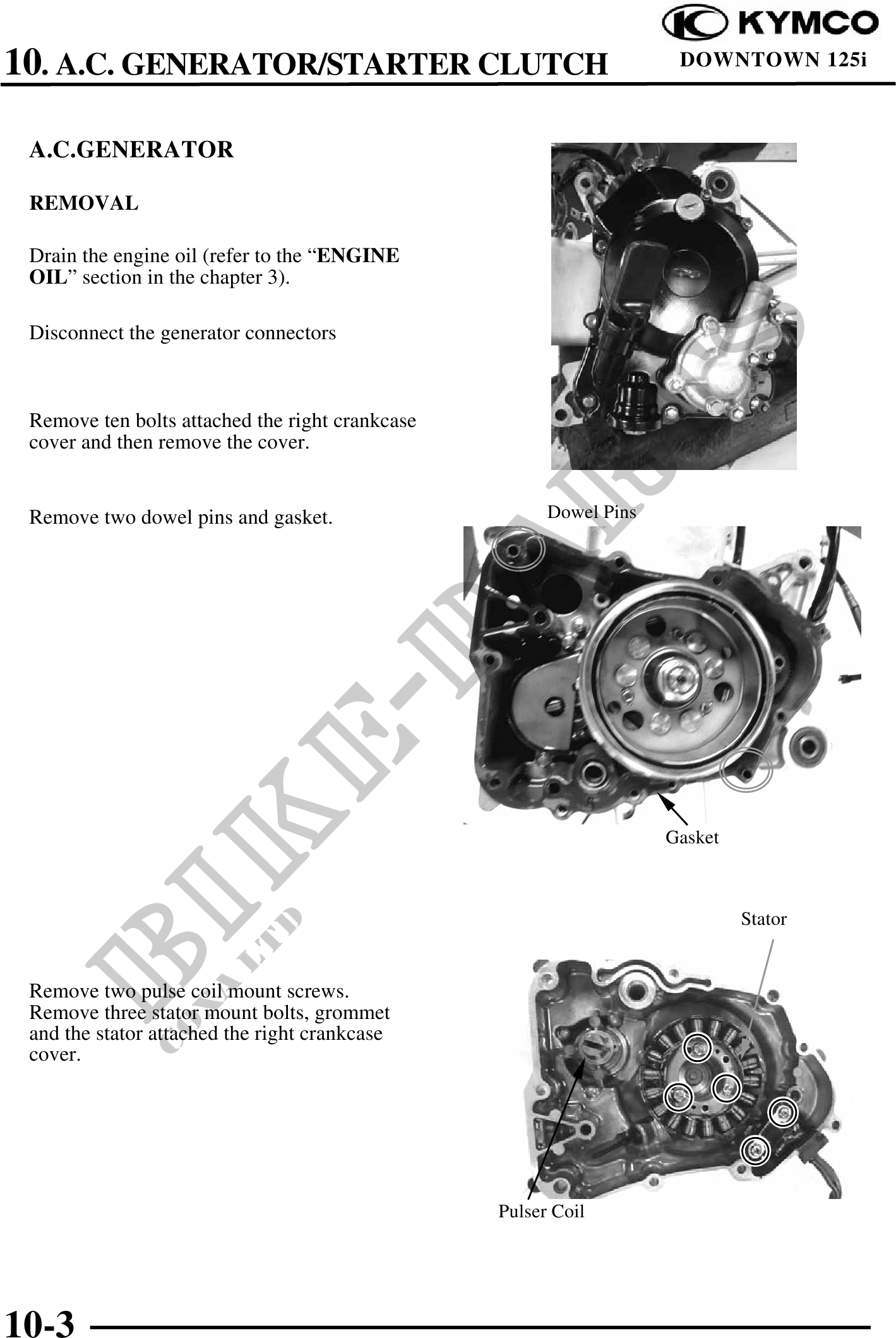

10. A.C. GENERATOR/STARTER CLUTCH DOWNTOWN 125i
A.C.GENERATOR
REMOVAL
Drain the engine oil (refer to the "ENGINE
OIL" section in the chapter 3).
Disconnect the generator connectors
Remove ten bolts attached the right crankcase
cover and then remove the cover.
Remove two dowel pins and gasket. Dowel Pins
Gasket
Stator
Remove two pulse coil mount screws.
Remove three stator mount bolts, grommet
and the stator attached the right crankcase
cover.
Pulser Coil
10-3
