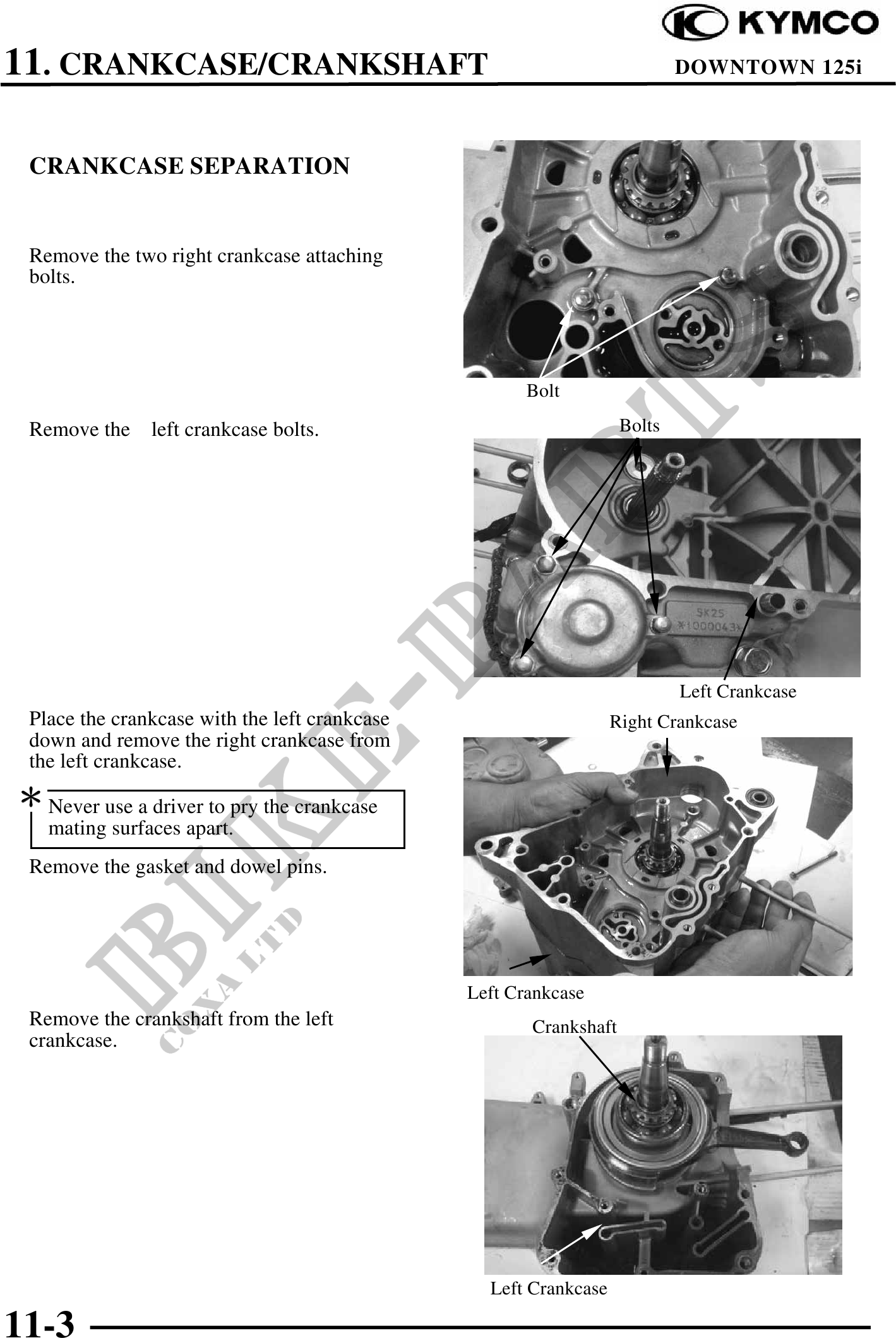

11. CRANKCASE/CRANKSHAFT DOWNTOWN 125i
CRANKCASE SEPARATION
Remove the two right crankcase attaching
bolts.
Bolt
Remove the left crankcase bolts. Bolts
Left Crankcase
Place the crankcase with the left crankcase Right Crankcase
down and remove the right crankcase from
the left crankcase.
Never use a driver to pry the crankcase
mating surfaces apart.
Remove the gasket and dowel pins.
Left Crankcase
Remove the crankshaft from the left Crankshaft
crankcase.
Left Crankcase
11-3
