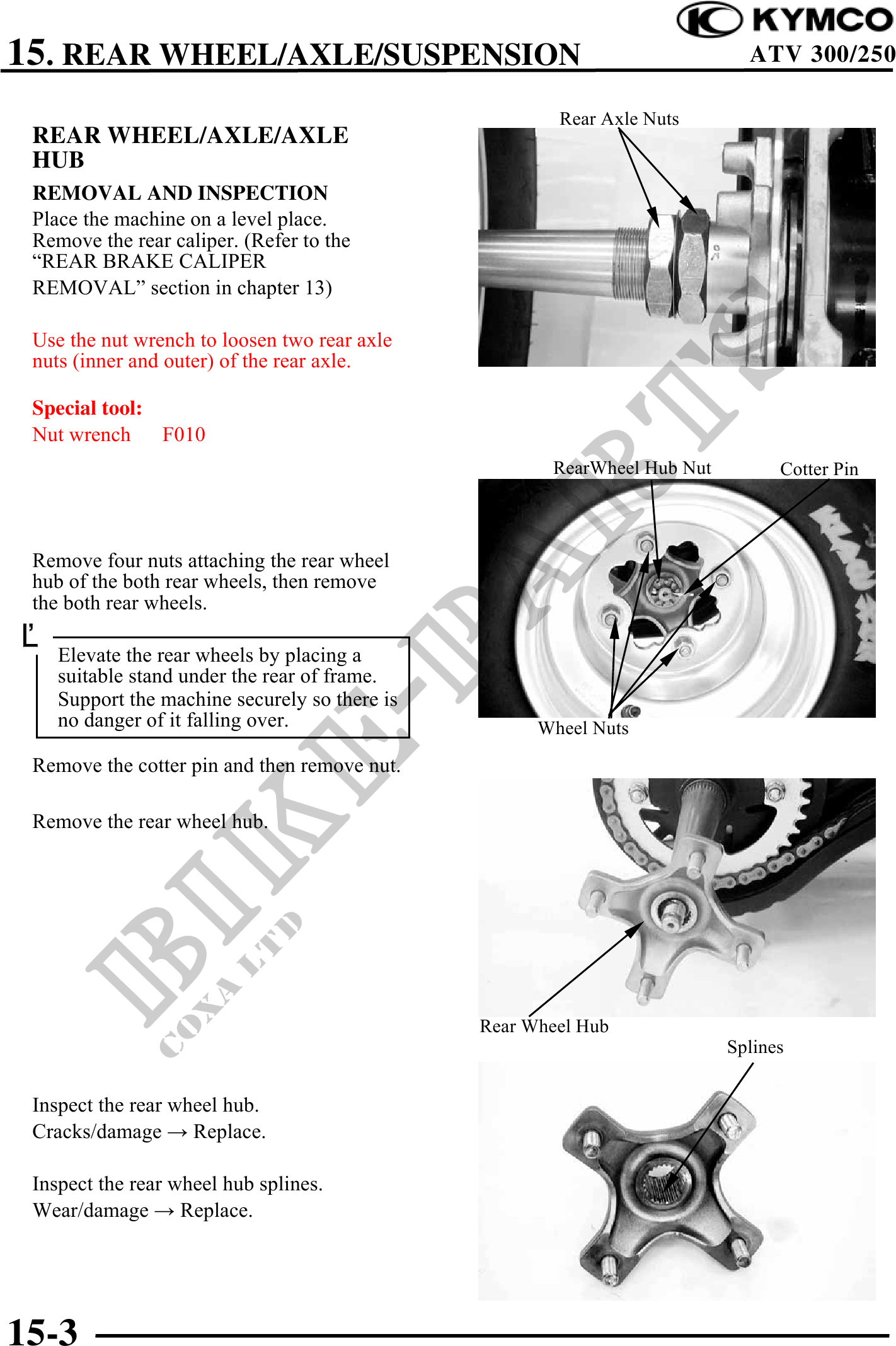

15. REAR WHEEL/AXLE/SUSPENSION ATV 300/250
Rear Axle Nuts
REAR WHEEL/AXLE/AXLE
HUB
REMOVAL AND INSPECTION
Place the machine on a level place.
Remove the rear caliper. (Refer to the
"REAR BRAKE CALIPER
REMOVAL" section in chapter 13)
Use the nut wrench to loosen two rear axle
nuts (inner and outer) of the rear axle.
Special tool:
Nut wrench F010
RearWheel Hub Nut Cotter Pin
Remove four nuts attaching the rear wheel
hub of the both rear wheels, then remove
the both rear wheels.
Elevate the rear wheels by placing a
suitable stand under the rear of frame.
Support the machine securely so there is
no danger of it falling over. Wheel Nuts
Remove the cotter pin and then remove nut.
Remove the rear wheel hub.
Rear Wheel Hub
Splines
Inspect the rear wheel hub.
Cracks/damage Replace.
Inspect the rear wheel hub splines.
Wear/damage Replace.
15-3
