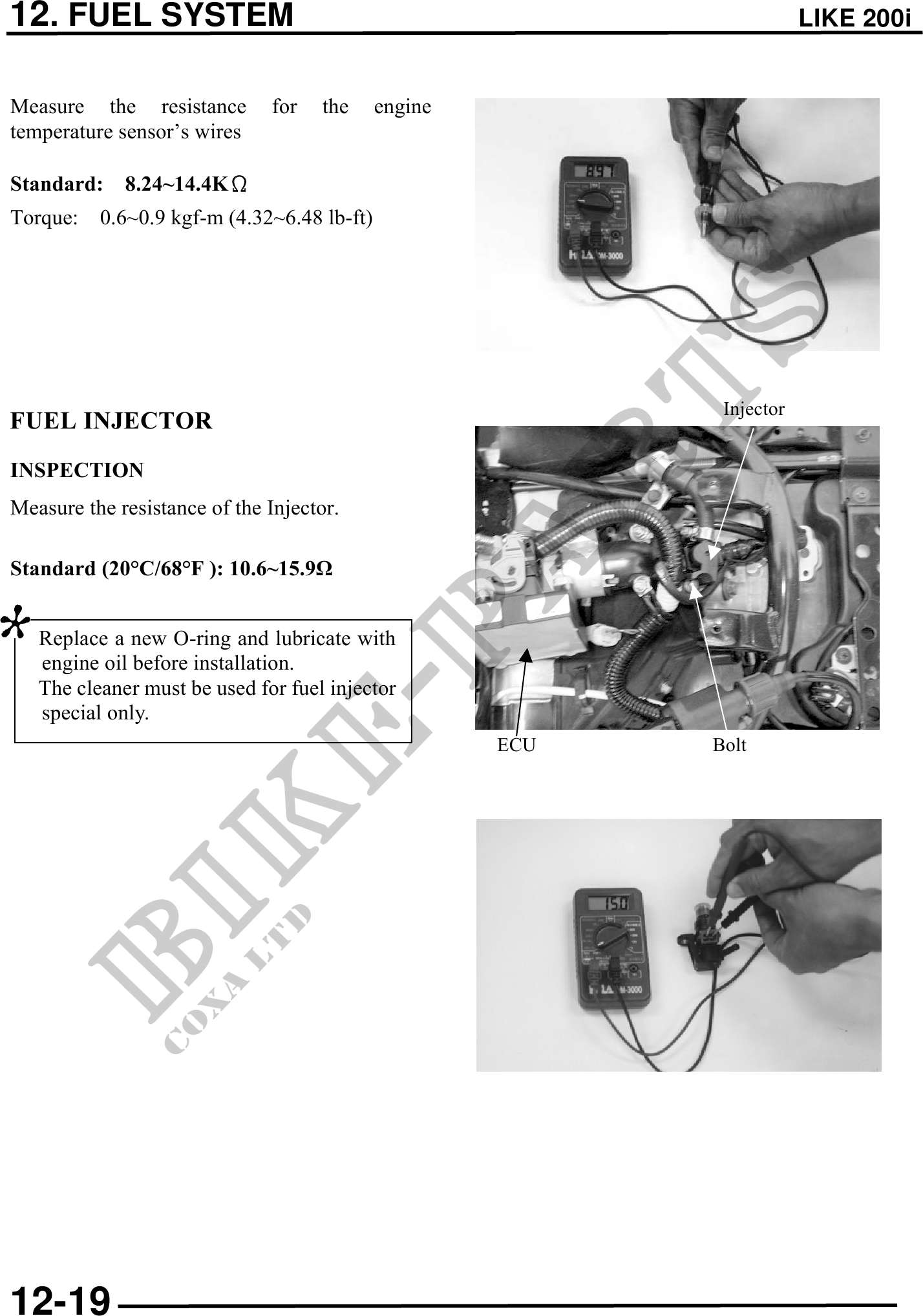

          12. FUEL SYSTEM                                                        LIKE 200i


Measure the resistance         for   the    engine
temperature sensor's wires

Standard:    8.24~14.4K
Torque:   0.6~0.9 kgf-m (4.32~6.48 lb-ft)




                                                            Injector
FUEL INJECTOR
INSPECTION
Measure the resistance of the Injector.

Standard (20°C/68°F ): 10.6~15.9


   Replace a new O-ring and lubricate with
   engine oil before installation.
   The cleaner must be used for fuel injector
   special only.
                                                     ECU   Bolt




12-19
