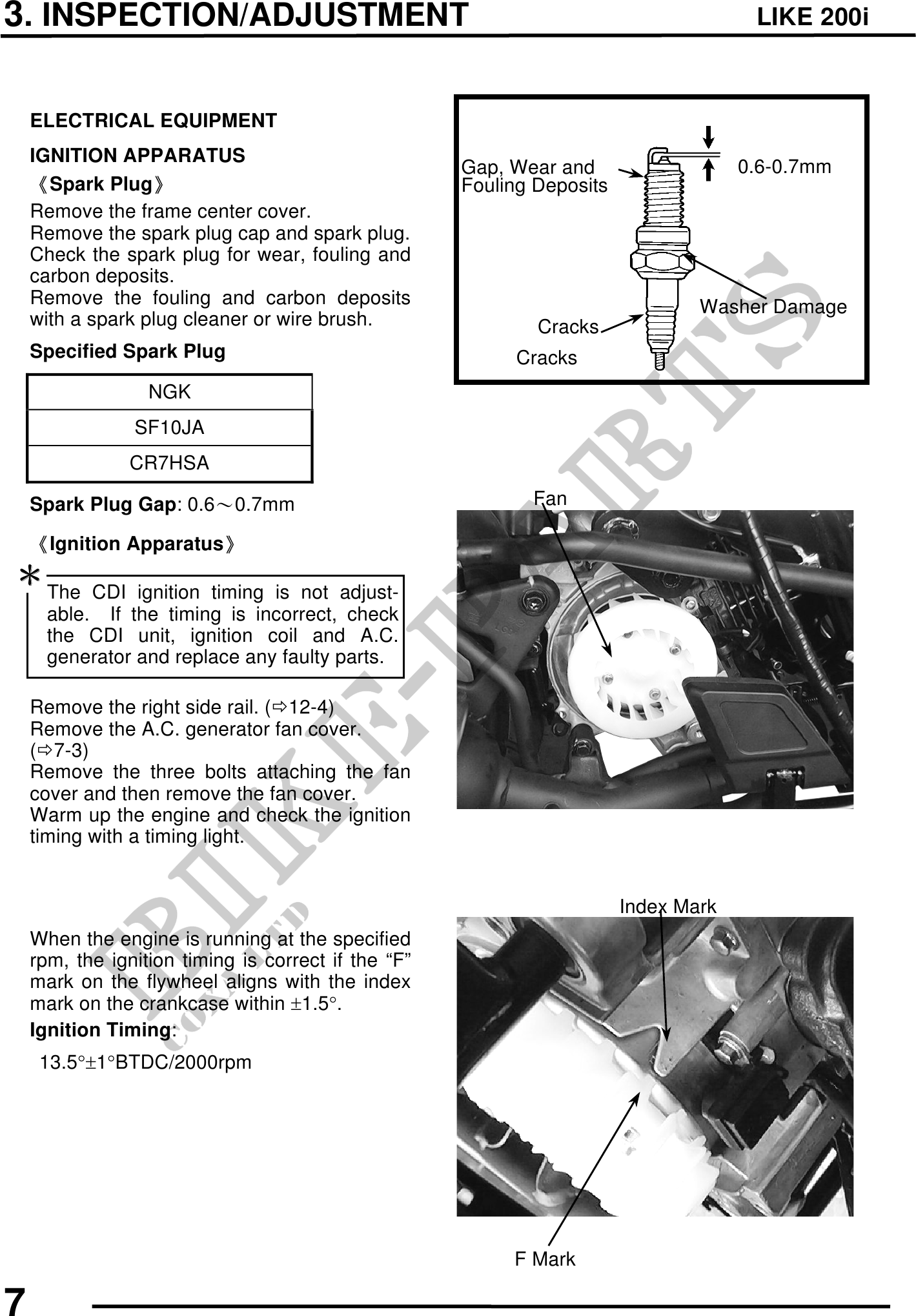

          3. INSPECTION/ADJUSTMENT                                                              LIKE 200i



    ELECTRICAL EQUIPMENT
    IGNITION APPARATUS
                                                     Gap, Wear and                   0.6-0.7mm
    Spark Plug                                       Fouling Deposits
    Remove the frame center cover.
    Remove the spark plug cap and spark plug.
    Check the spark plug for wear, fouling and
    carbon deposits.
    Remove the fouling and carbon deposits                                      Washer Damage
    with a spark plug cleaner or wire brush.                 Cracks
    Specified Spark Plug                                  Cracks
                  NGK
                SF10JA
                CR7HSA

    Spark Plug Gap: 0.60.7mm                                Fan

    Ignition Apparatus
The        CDI ignition timing is not adjust-
      able. If the timing is incorrect, check
      the CDI unit, ignition coil and A.C.
      generator and replace any faulty parts.

    Remove the right side rail. ( 12-4)
    Remove the A.C. generator fan cover.
    ( 7-3)
    Remove the three bolts attaching the fan
    cover and then remove the fan cover.
    Warm up the engine and check the ignition
    timing with a timing light.


                                                                        Index Mark
    When the engine is running at the specified
    rpm, the ignition timing is correct if the "F"
    mark on the flywheel aligns with the index
    mark on the crankcase within 1.5°.
    Ignition Timing:
     13.5°1°BTDC/2000rpm




                                                          F Mark

7
