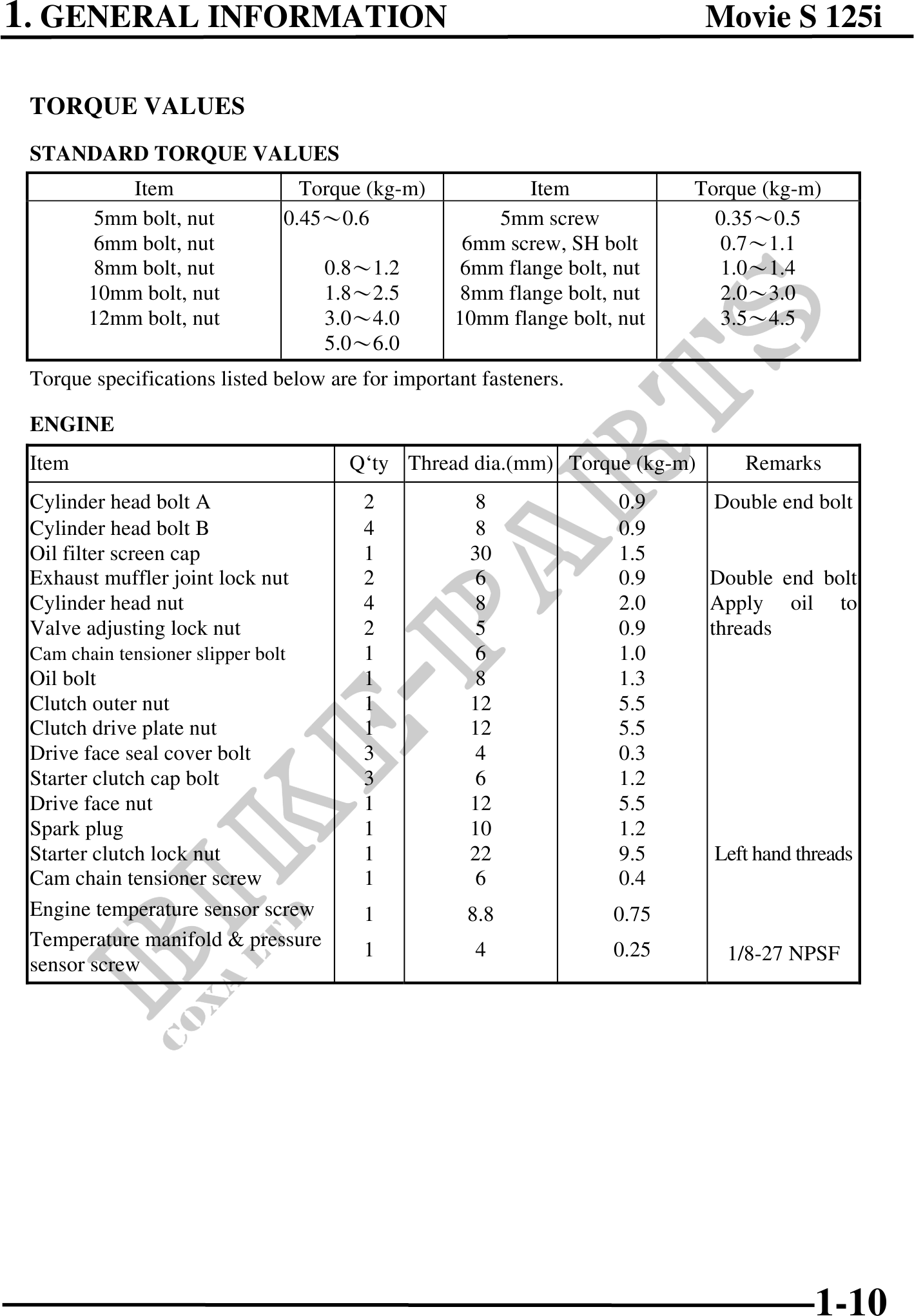

1. GENERAL INFORMATION Movie S 125i
TORQUE VALUES
STANDARD TORQUE VALUES
Item Torque (kg-m) Item Torque (kg-m)
5mm bolt, nut 0.450.6 5mm screw 0.350.5
6mm bolt, nut 6mm screw, SH bolt 0.71.1
8mm bolt, nut 0.81.2 6mm flange bolt, nut 1.01.4
10mm bolt, nut 1.82.5 8mm flange bolt, nut 2.03.0
12mm bolt, nut 3.04.0 10mm flange bolt, nut 3.54.5
5.06.0
Torque specifications listed below are for important fasteners.
ENGINE
Item Q`ty Thread dia.(mm) Torque (kg-m) Remarks
Cylinder head bolt A 2 8 0.9 Double end bolt
Cylinder head bolt B 4 8 0.9
Oil filter screen cap 1 30 1.5
Exhaust muffler joint lock nut 2 6 0.9 Double end bolt
Cylinder head nut 4 8 2.0 Apply oil to
Valve adjusting lock nut 2 5 0.9 threads
Cam chain tensioner slipper bolt 1 6 1.0
Oil bolt 1 8 1.3
Clutch outer nut 1 12 5.5
Clutch drive plate nut 1 12 5.5
Drive face seal cover bolt 3 4 0.3
Starter clutch cap bolt 3 6 1.2
Drive face nut 1 12 5.5
Spark plug 1 10 1.2
Starter clutch lock nut 1 22 9.5 Left hand threads
Cam chain tensioner screw 1 6 0.4
Engine temperature sensor screw 1 8.8 0.75
Temperature manifold & pressure 1 4 0.25 1/8-27 NPSF
sensor screw
1-10
