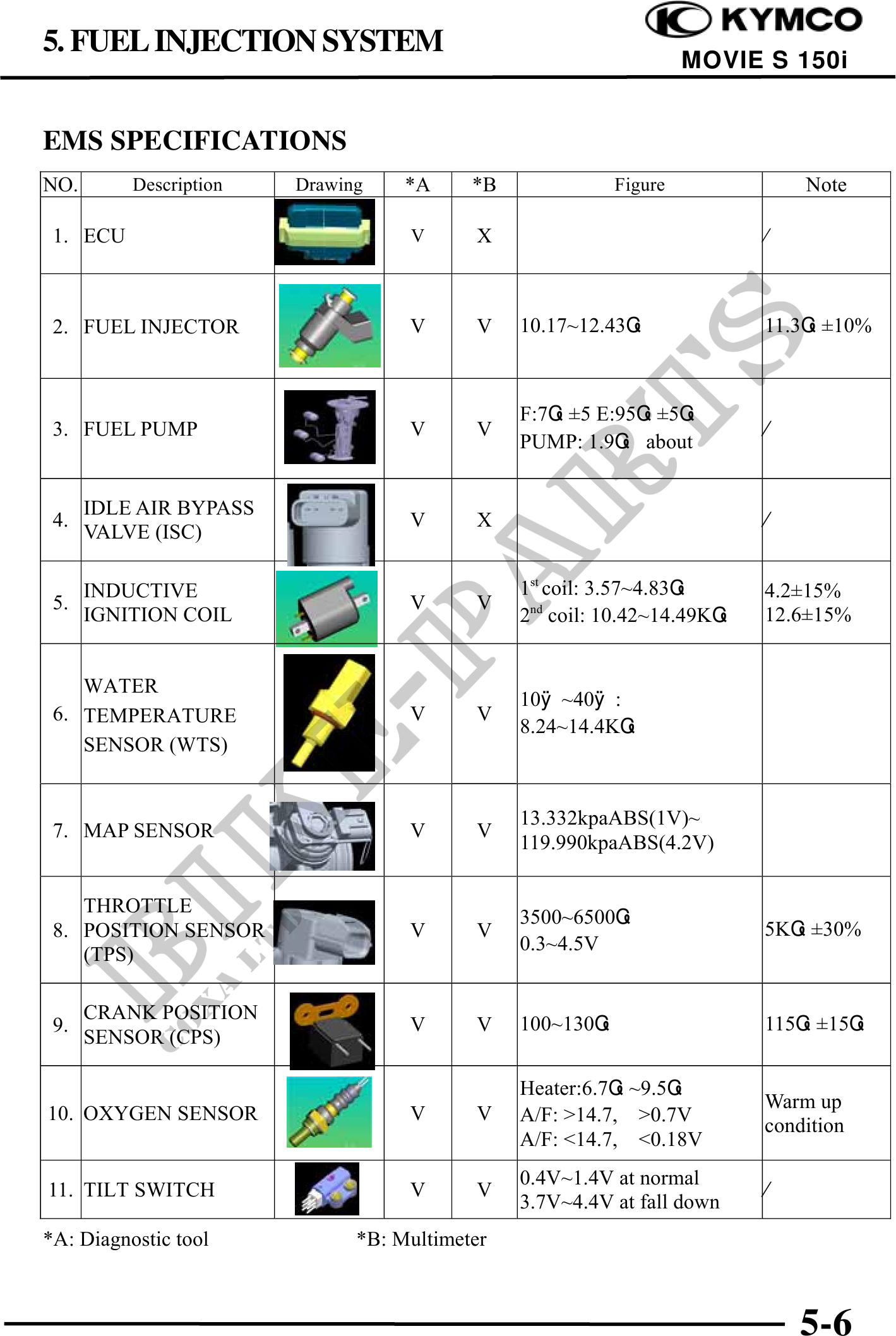

5. FUEL INJECTION SYSTEM
MOVIE S 150i
EMS SPECIFICATIONS
NO. Description Drawing *A *B Figure Note
1. ECU V X
2. FUEL INJECTOR V V 10.17~12.43 11.310%
F:75 E:955
3. FUEL PUMP V V
PUMP: 1.9 about
IDLE AIR BYPASS
4. V X
VALVE (ISC)
INDUCTIVE 1st coil: 3.57~4.83 4.215%
5. V V
IGNITION COIL 2nd coil: 10.42~14.49K 12.615%
WATER
10~40:
6. TEMPERATURE V V
8.24~14.4K
SENSOR (WTS)
13.332kpaABS(1V)~
7. MAP SENSOR V V
119.990kpaABS(4.2V)
THROTTLE
3500~6500
8. POSITION SENSOR V V 5K30%
0.3~4.5V
(TPS)
CRANK POSITION
9. V V 100~130 11515
SENSOR (CPS)
Heater:6.7~9.5
Warm up
10. OXYGEN SENSOR V V A/F: >14.7, >0.7V condition
A/F: <14.7, <0.18V
0.4V~1.4V at normal
11. TILT SWITCH V V
3.7V~4.4V at fall down
*A: Diagnostic tool *B: Multimeter
5-6
