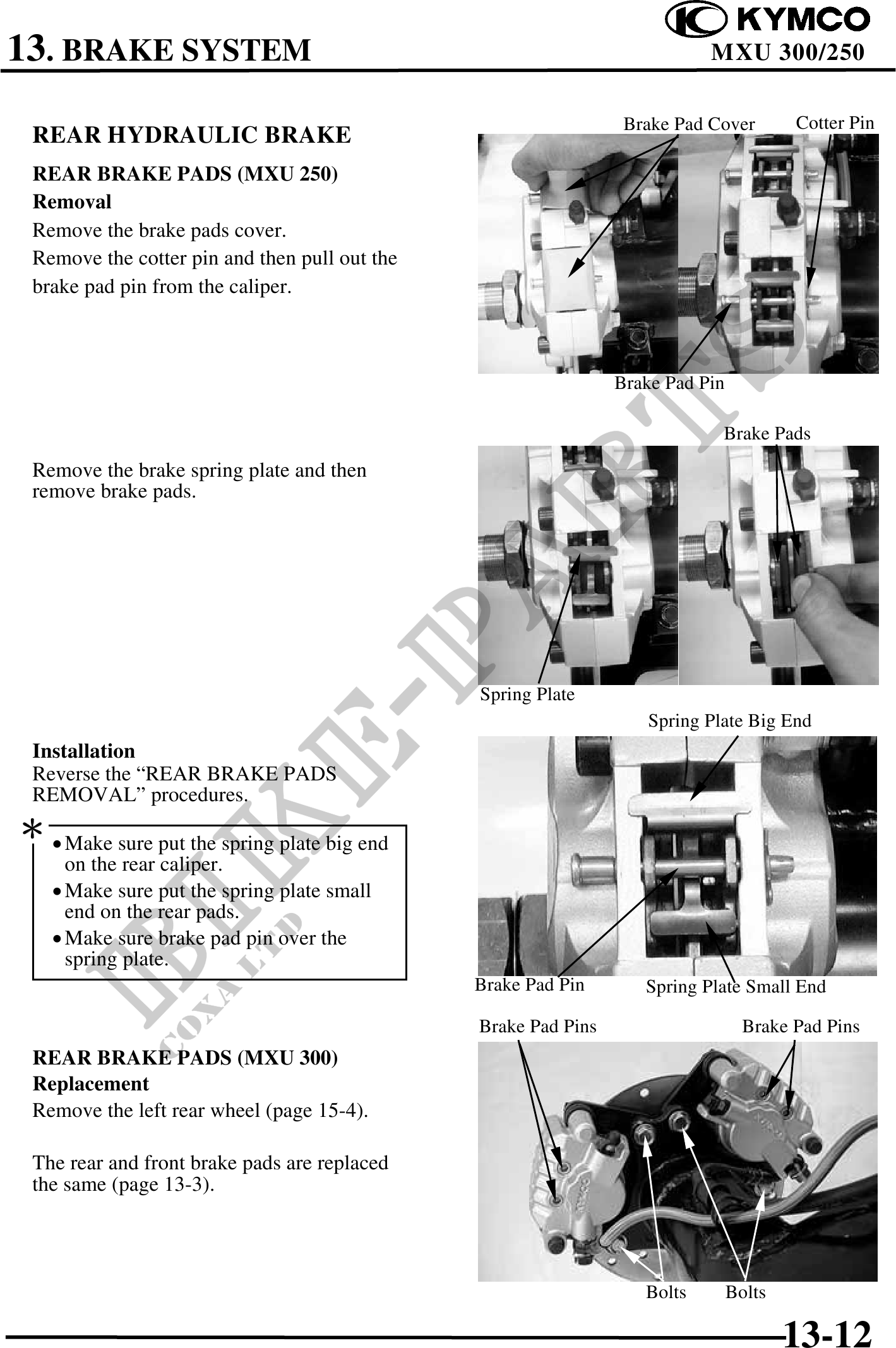

13. BRAKE SYSTEM MXU 300/250 Brake Pad Cover Cotter Pin REAR HYDRAULIC BRAKE REAR BRAKE PADS (MXU 250) Removal Remove the brake pads cover. Remove the cotter pin and then pull out the brake pad pin from the caliper. Brake Pad Pin Brake Pads Remove the brake spring plate and then remove brake pads. Spring Plate Spring Plate Big End Installation Reverse the "REAR BRAKE PADS REMOVAL" procedures. · Make sure put the spring plate big end on the rear caliper. · Make sure put the spring plate small end on the rear pads. · Make sure brake pad pin over the spring plate. Brake Pad Pin Spring Plate Small End Brake Pad Pins Brake Pad Pins REAR BRAKE PADS (MXU 300) Replacement Remove the left rear wheel (page 15-4). The rear and front brake pads are replaced the same (page 13-3). Bolts Bolts 13-12
