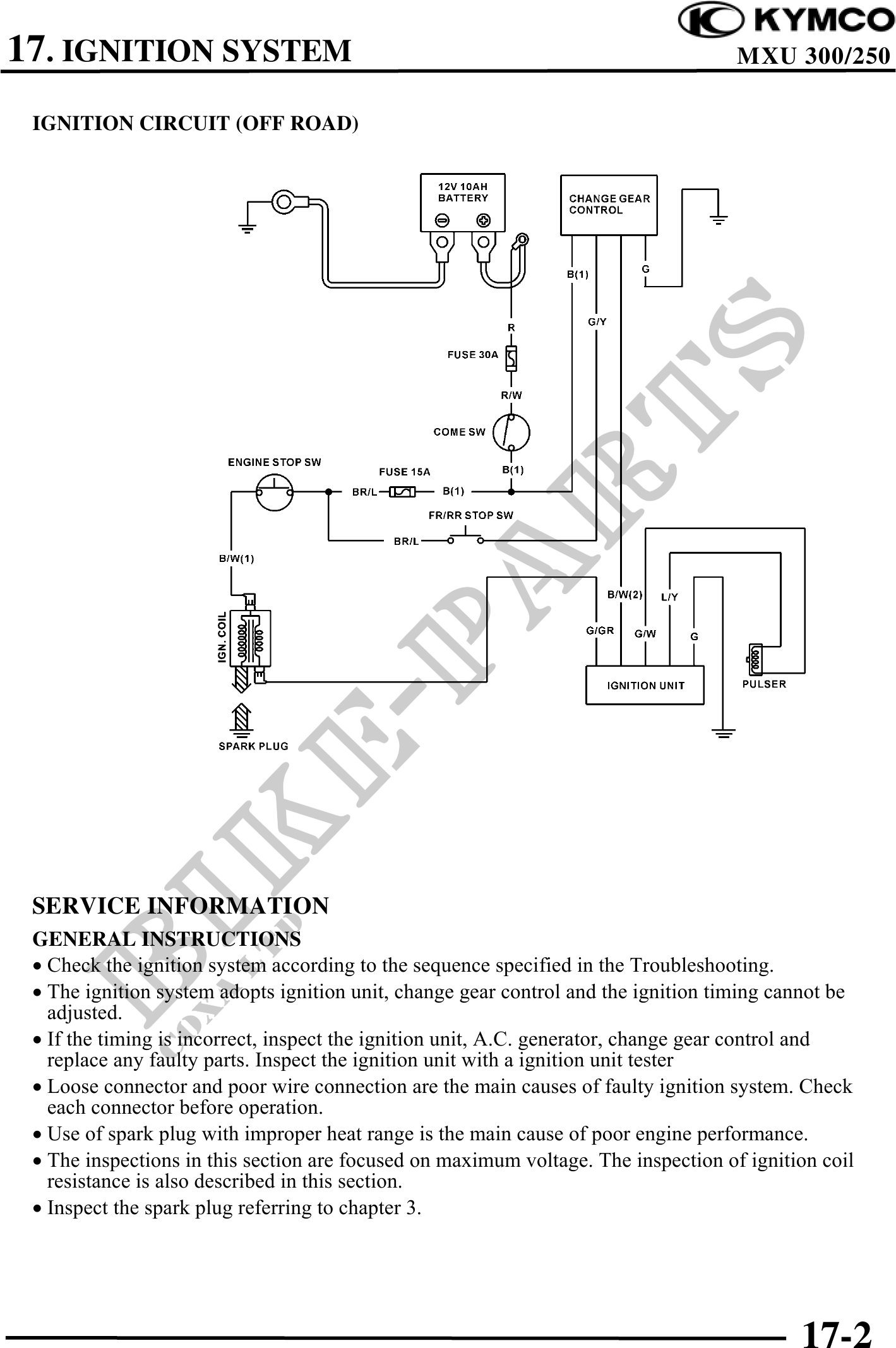

17. IGNITION SYSTEM MXU 300/250 IGNITION CIRCUIT (OFF ROAD) SERVICE INFORMATION GENERAL INSTRUCTIONS · Check the ignition system according to the sequence specified in the Troubleshooting. · The ignition system adopts ignition unit, change gear control and the ignition timing cannot be adjusted. · If the timing is incorrect, inspect the ignition unit, A.C. generator, change gear control and replace any faulty parts. Inspect the ignition unit with a ignition unit tester · Loose connector and poor wire connection are the main causes of faulty ignition system. Check each connector before operation. · Use of spark plug with improper heat range is the main cause of poor engine performance. · The inspections in this section are focused on maximum voltage. The inspection of ignition coil resistance is also described in this section. · Inspect the spark plug referring to chapter 3. 17-2
