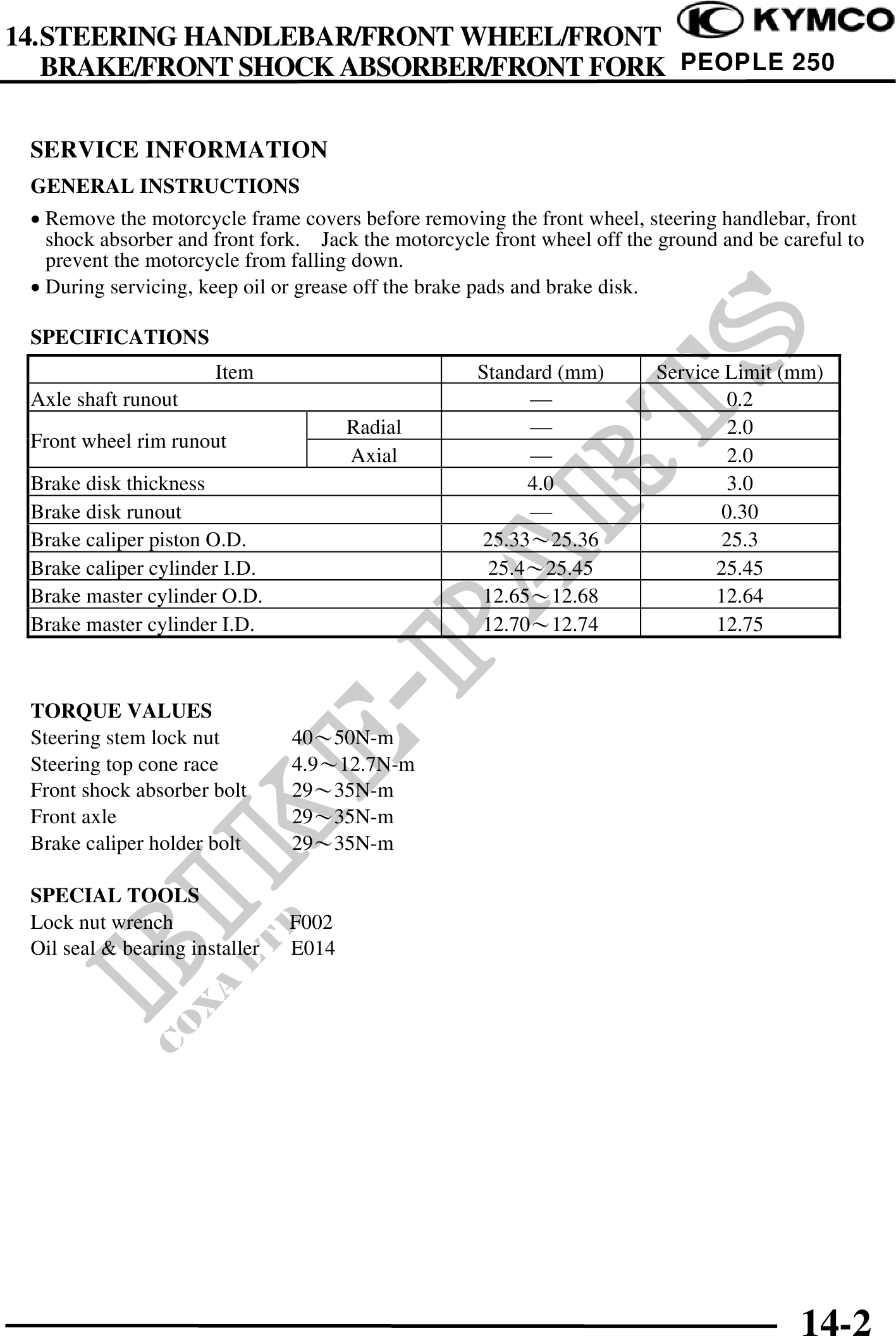

          14.STEERING HANDLEBAR/FRONT WHEEL/FRONT
   BRAKE/FRONT SHOCK ABSORBER/FRONT FORK PEOPLE 250

 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · Remove the motorcycle frame covers before removing the front wheel, steering handlebar, front
   shock absorber and front fork. Jack the motorcycle front wheel off the ground and be careful to
   prevent the motorcycle from falling down.
 · During servicing, keep oil or grease off the brake pads and brake disk.

 SPECIFICATIONS
                       Item                         Standard (mm)        Service Limit (mm)
 Axle shaft runout                                                               0.2
                                       Radial                                    2.0
 Front wheel rim runout
                                       Axial                                     2.0
 Brake disk thickness                                    4.0                     3.0
 Brake disk runout                                                              0.30
 Brake caliper piston O.D.                          25.3325.36                  25.3
 Brake caliper cylinder I.D.                         25.425.45                  25.45
 Brake master cylinder O.D.                         12.6512.68                  12.64
 Brake master cylinder I.D.                         12.7012.74                  12.75



 TORQUE VALUES
 Steering stem lock nut         4050N-m
 Steering top cone race         4.912.7N-m
 Front shock absorber bolt      2935N-m
 Front axle                     2935N-m
 Brake caliper holder bolt      2935N-m

 SPECIAL TOOLS
 Lock nut wrench                F002
 Oil seal & bearing installer   E014




                                                                                          14-2
