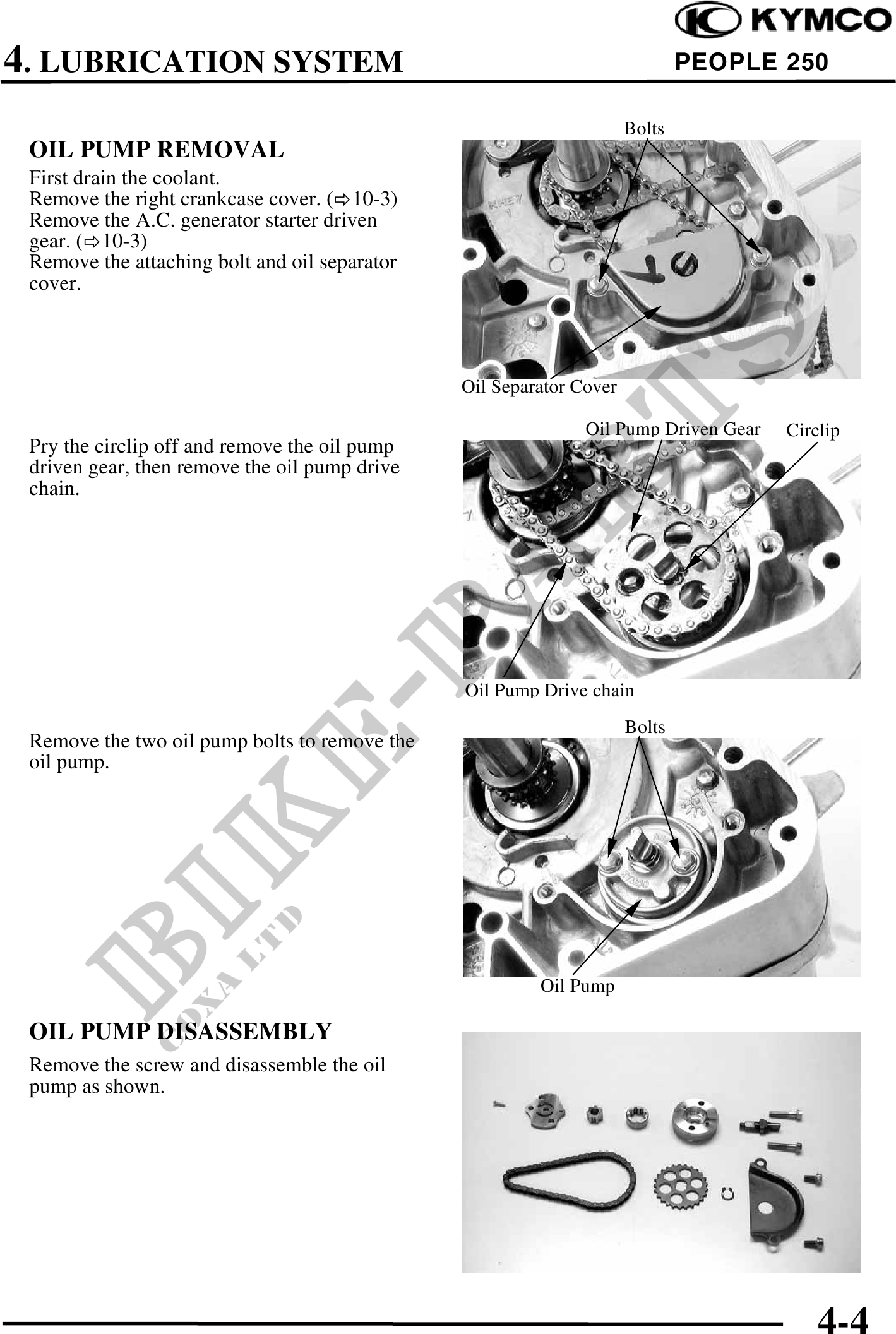

          4. LUBRICATION SYSTEM                                                        PEOPLE 250

                                                                     Bolts
 OIL PUMP REMOVAL
 First drain the coolant.
 Remove the right crankcase cover. ( 10-3)
 Remove the A.C. generator starter driven
 gear. ( 10-3)
 Remove the attaching bolt and oil separator
 cover.



                                               Oil Separator Cover

                                                              Oil Pump Driven Gear   Circlip
 Pry the circlip off and remove the oil pump
 driven gear, then remove the oil pump drive
 chain.




                                               Oil Pump Drive chain
                                                                     Bolts
 Remove the two oil pump bolts to remove the
 oil pump.




                                                        Oil Pump

 OIL PUMP DISASSEMBLY
 Remove the screw and disassemble the oil
 pump as shown.




                                                                                         4-4
