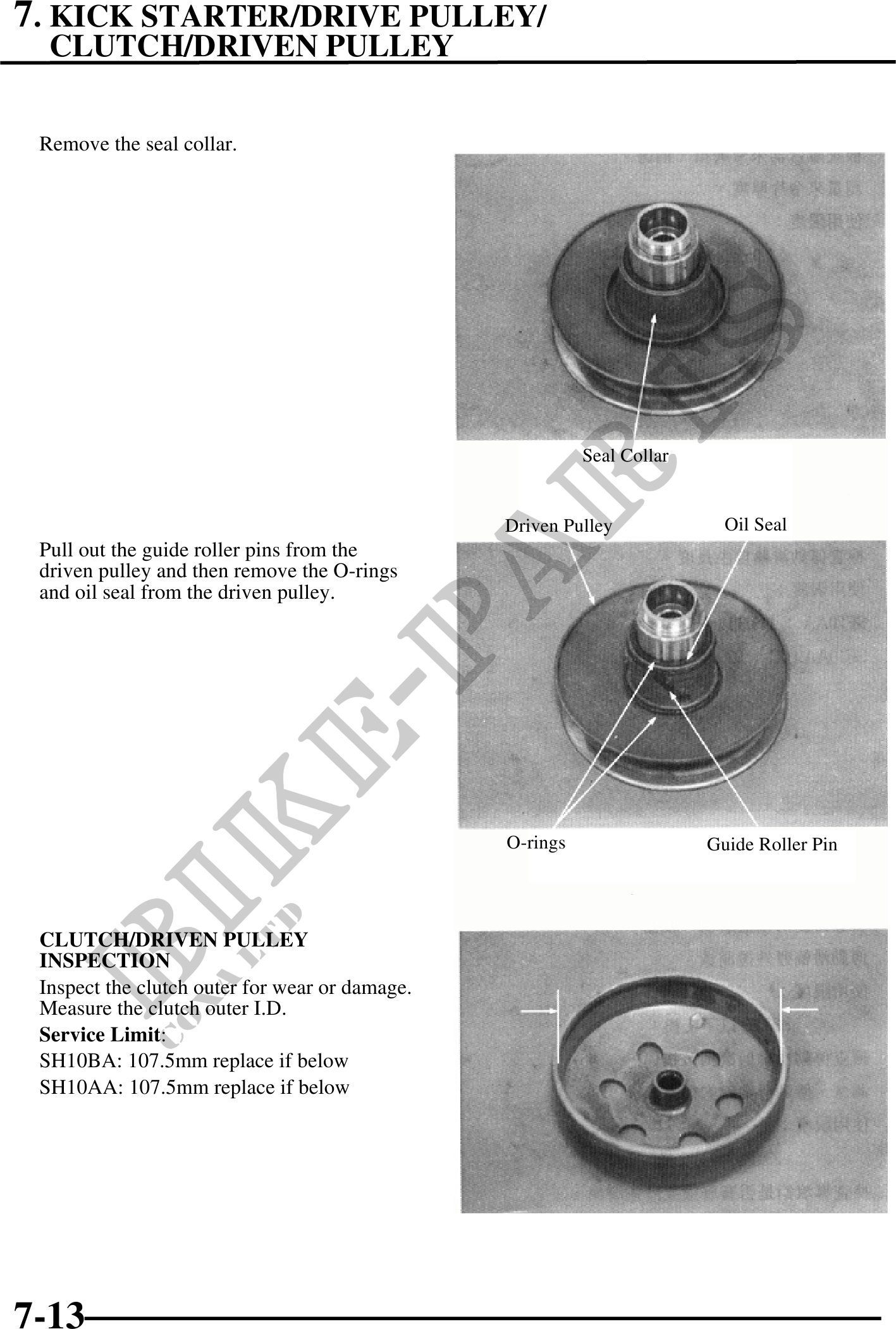

7. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
Remove the seal collar.
Seal Collar
Driven Pulley Oil Seal
Pull out the guide roller pins from the
driven pulley and then remove the O-rings
and oil seal from the driven pulley.
O-rings Guide Roller Pin
CLUTCH/DRIVEN PULLEY
INSPECTION
Inspect the clutch outer for wear or damage.
Measure the clutch outer I.D.
Service Limit:
SH10BA: 107.5mm replace if below
SH10AA: 107.5mm replace if below
7-13
