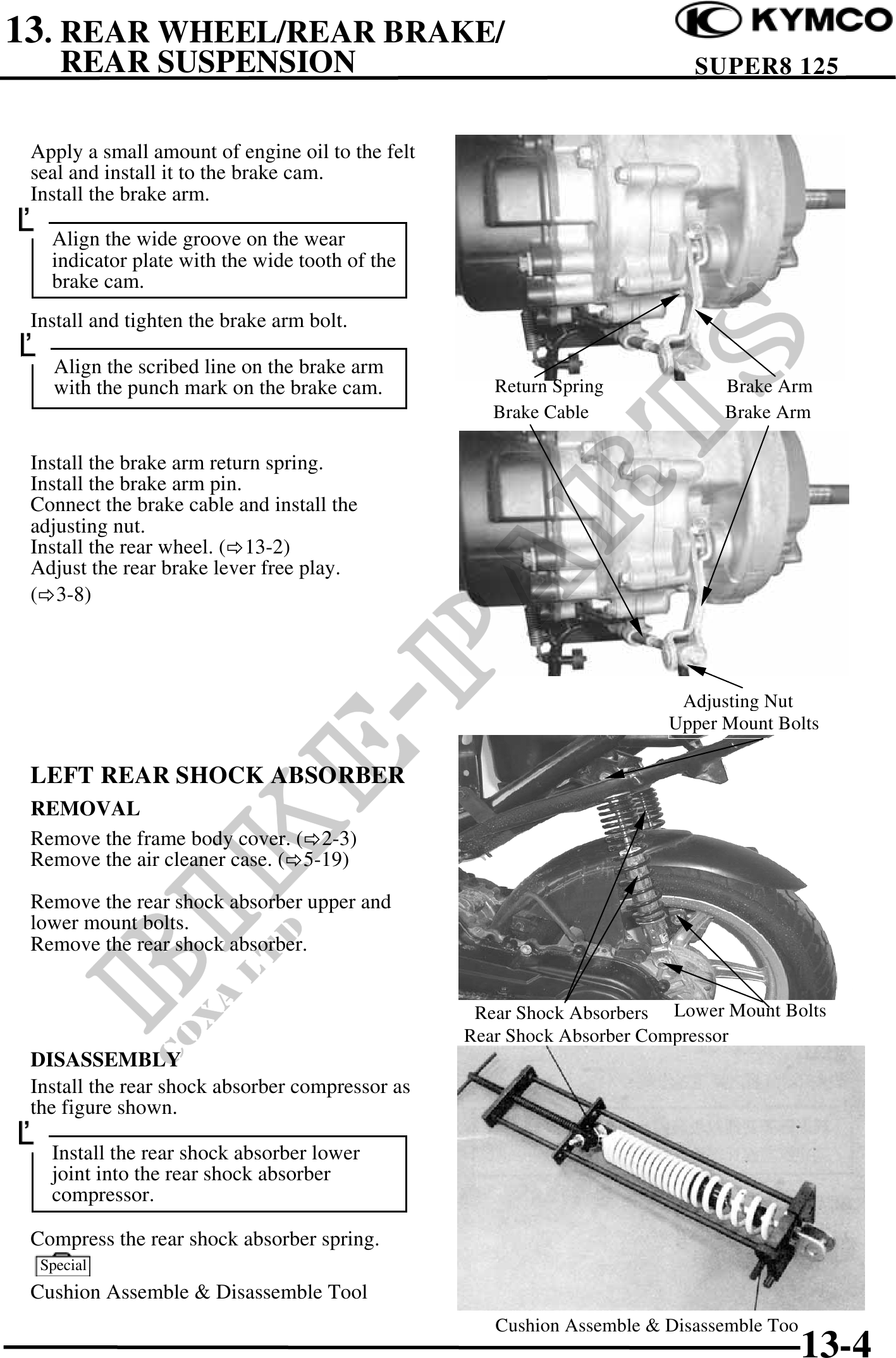

13. REAR WHEEL/REAR BRAKE/
REAR SUSPENSION SUPER8 125
Apply a small amount of engine oil to the felt
seal and install it to the brake cam.
Install the brake arm.
Align the wide groove on the wear
indicator plate with the wide tooth of the
brake cam.
Install and tighten the brake arm bolt.
Align the scribed line on the brake arm
with the punch mark on the brake cam. Return Spring Brake Arm
Brake Cable Brake Arm
Install the brake arm return spring.
Install the brake arm pin.
Connect the brake cable and install the
adjusting nut.
Install the rear wheel. ( 13-2)
Adjust the rear brake lever free play.
( 3-8)
Adjusting Nut
Upper Mount Bolts
LEFT REAR SHOCK ABSORBER
REMOVAL
Remove the frame body cover. ( 2-3)
Remove the air cleaner case. ( 5-19)
Remove the rear shock absorber upper and
lower mount bolts.
Remove the rear shock absorber.
Rear Shock Absorbers Lower Mount Bolts
Rear Shock Absorber Compressor
DISASSEMBLY
Install the rear shock absorber compressor as
the figure shown.
Install the rear shock absorber lower
joint into the rear shock absorber
compressor.
Compress the rear shock absorber spring. Loosen the lower joint lock nut.
Special Remove the lower joint.
Cushion Assemble & Disassemble Tool Remove the lock nut, rubber and damper.
Cushion Assemble & Disassemble Too
13-4
