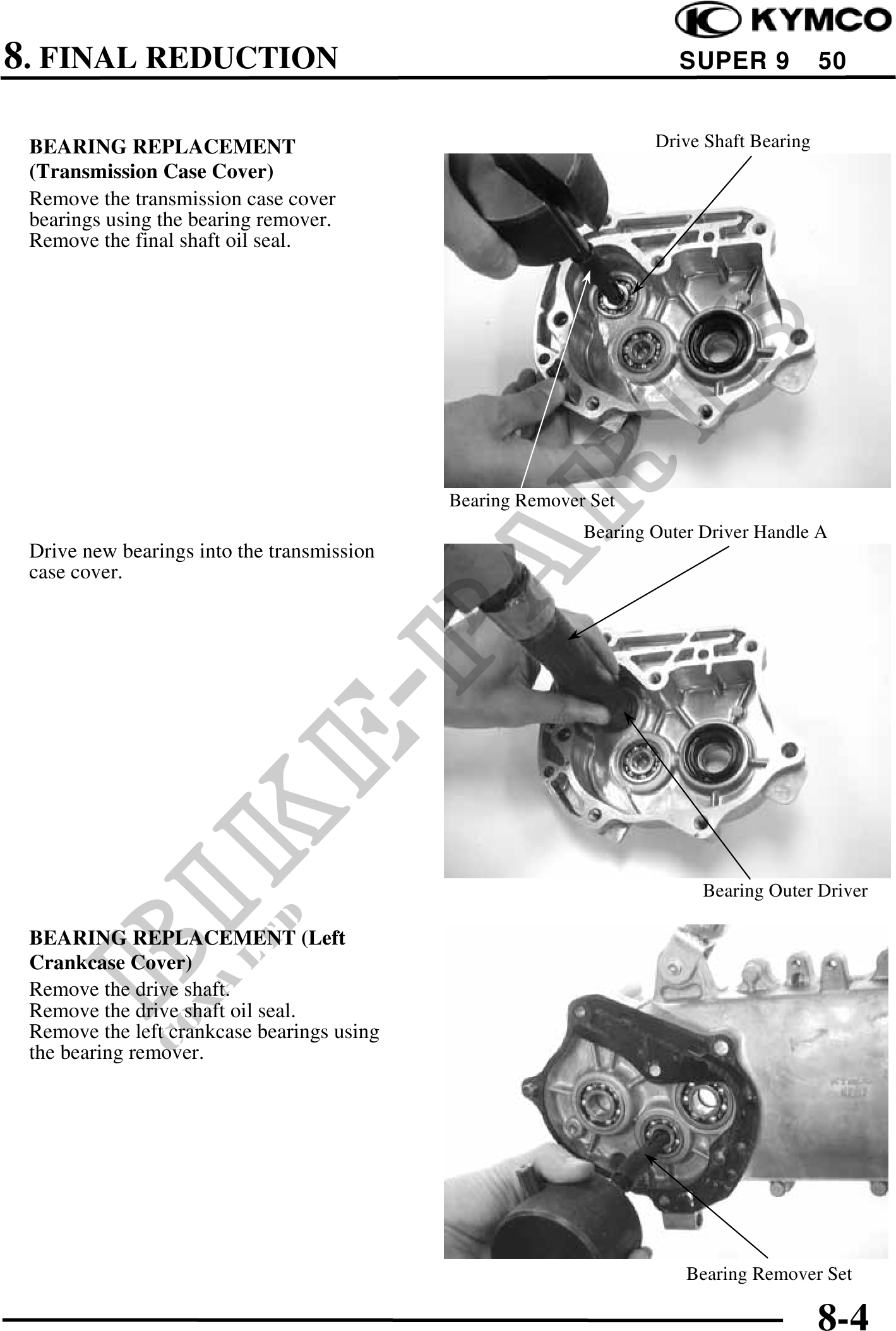

          8. FINAL REDUCTION                                                    SUPER 9            50


 BEARING REPLACEMENT                                               Drive Shaft Bearing
 (Transmission Case Cover)
 Remove the transmission case cover
 bearings using the bearing remover.
 Remove the final shaft oil seal.




                                            Bearing Remover Set
                                                           Bearing Outer Driver Handle A
 Drive new bearings into the transmission
 case cover.




                                                                         Bearing Outer Driver

 BEARING REPLACEMENT (Left
 Crankcase Cover)
 Remove the drive shaft.
 Remove the drive shaft oil seal.
 Remove the left crankcase bearings using
 the bearing remover.




                                                                       Bearing Remover Set

                                                                                         8-4
