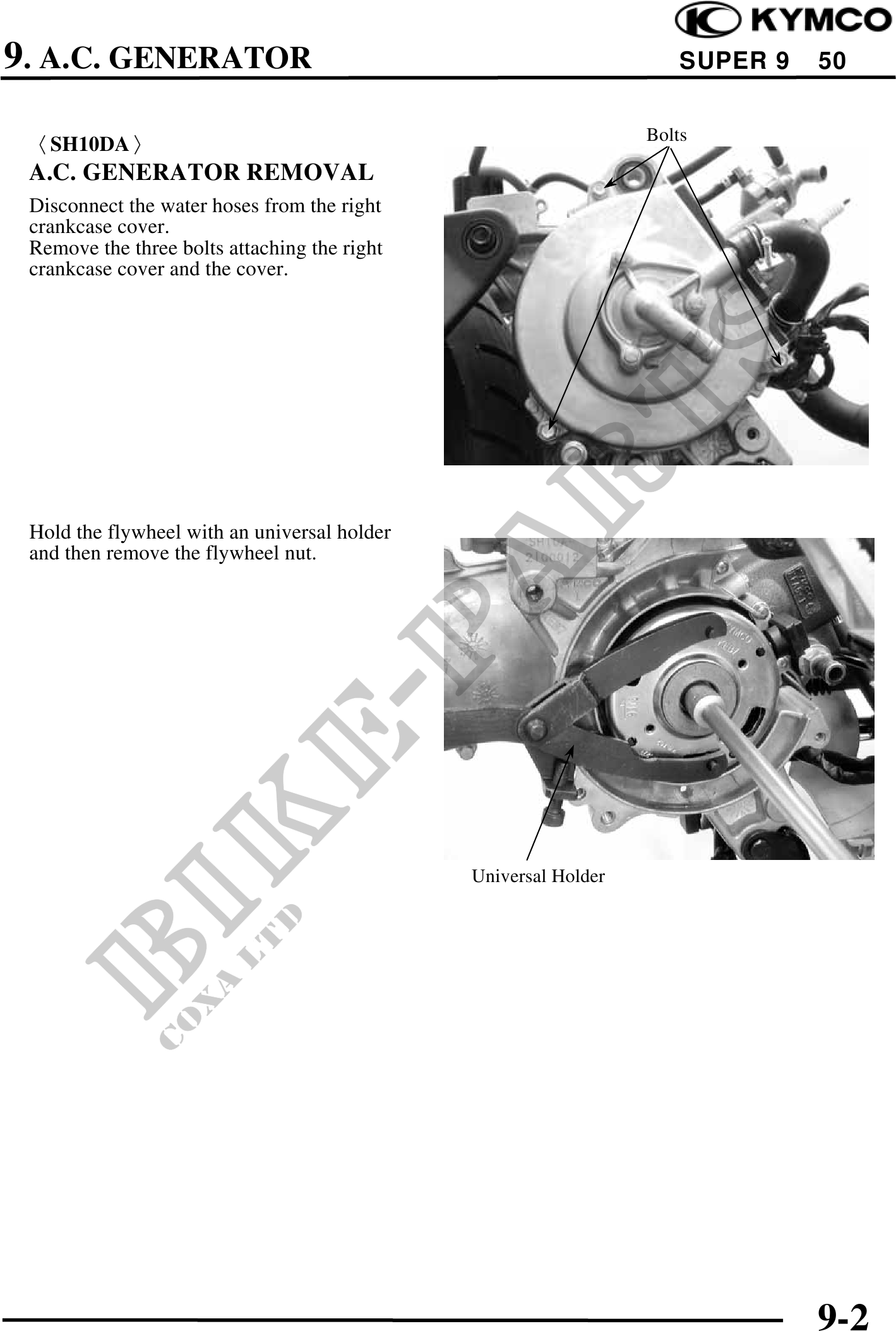

          9. A.C. GENERATOR                                                    SUPER 9   50

                                                                 Bolts
 SH10DA
 A.C. GENERATOR REMOVAL
 Disconnect the water hoses from the right
 crankcase cover.
 Remove the three bolts attaching the right
 crankcase cover and the cover.




 Hold the flywheel with an universal holder
 and then remove the flywheel nut.




                                              Universal Holder




                                                                               9-2
