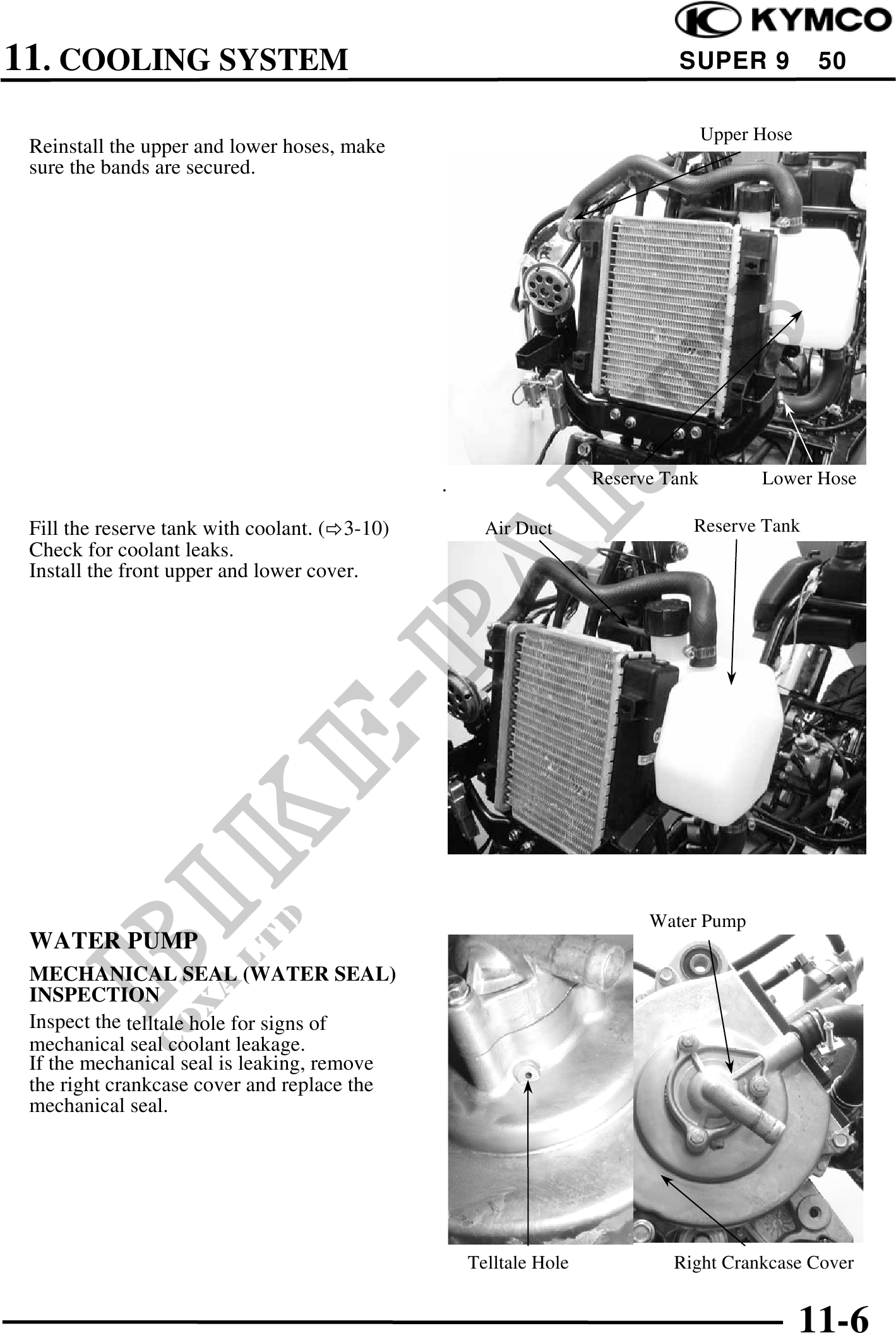

11. COOLING SYSTEM SUPER 9 50
Upper Hose
Reinstall the upper and lower hoses, make
sure the bands are secured.
. Reserve Tank Lower Hose
Fill the reserve tank with coolant. ( 3-10) Air Duct Reserve Tank
Check for coolant leaks.
Install the front upper and lower cover.
Water Pump
WATER PUMP
MECHANICAL SEAL (WATER SEAL)
INSPECTION
Inspect the telltale hole for signs of
mechanical seal coolant leakage.
If the mechanical seal is leaking, remove
the right crankcase cover and replace the
mechanical seal.
Telltale Hole Right Crankcase Cover
11-6
