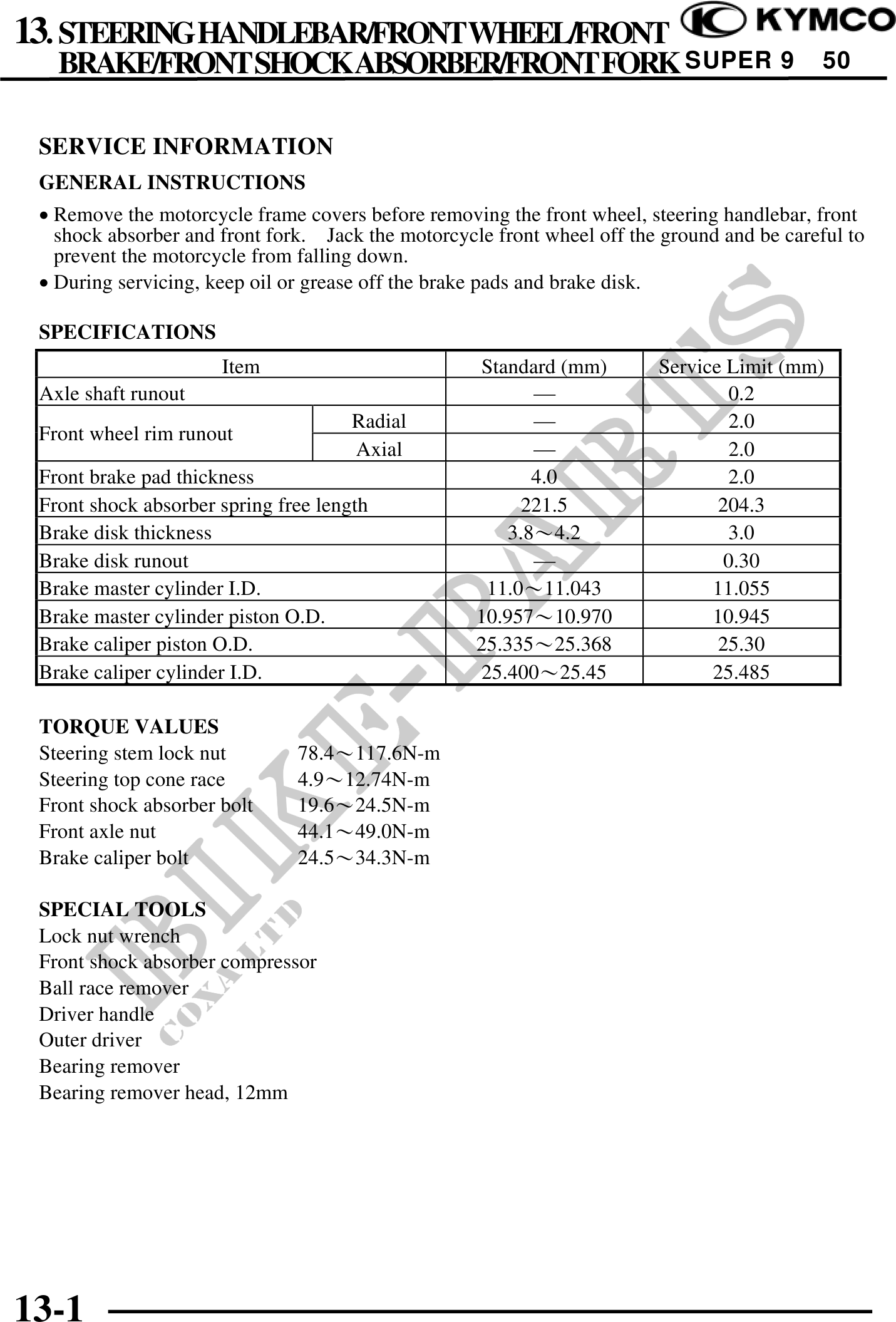

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· Remove the motorcycle frame covers before removing the front wheel, steering handlebar, front
shock absorber and front fork. Jack the motorcycle front wheel off the ground and be careful to
prevent the motorcycle from falling down.
· During servicing, keep oil or grease off the brake pads and brake disk.
SPECIFICATIONS
Item Standard (mm) Service Limit (mm)
Axle shaft runout 0.2
Radial 2.0
Front wheel rim runout
Axial 2.0
Front brake pad thickness 4.0 2.0
Front shock absorber spring free length 221.5 204.3
Brake disk thickness 3.84.2 3.0
Brake disk runout 0.30
Brake master cylinder I.D. 11.011.043 11.055
Brake master cylinder piston O.D. 10.95710.970 10.945
Brake caliper piston O.D. 25.33525.368 25.30
Brake caliper cylinder I.D. 25.40025.45 25.485
TORQUE VALUES
Steering stem lock nut 78.4117.6N-m
Steering top cone race 4.912.74N-m
Front shock absorber bolt 19.624.5N-m
Front axle nut 44.149.0N-m
Brake caliper bolt 24.534.3N-m
SPECIAL TOOLS
Lock nut wrench
Front shock absorber compressor
Ball race remover
Driver handle
Outer driver
Bearing remover
Bearing remover head, 12mm
13-1
