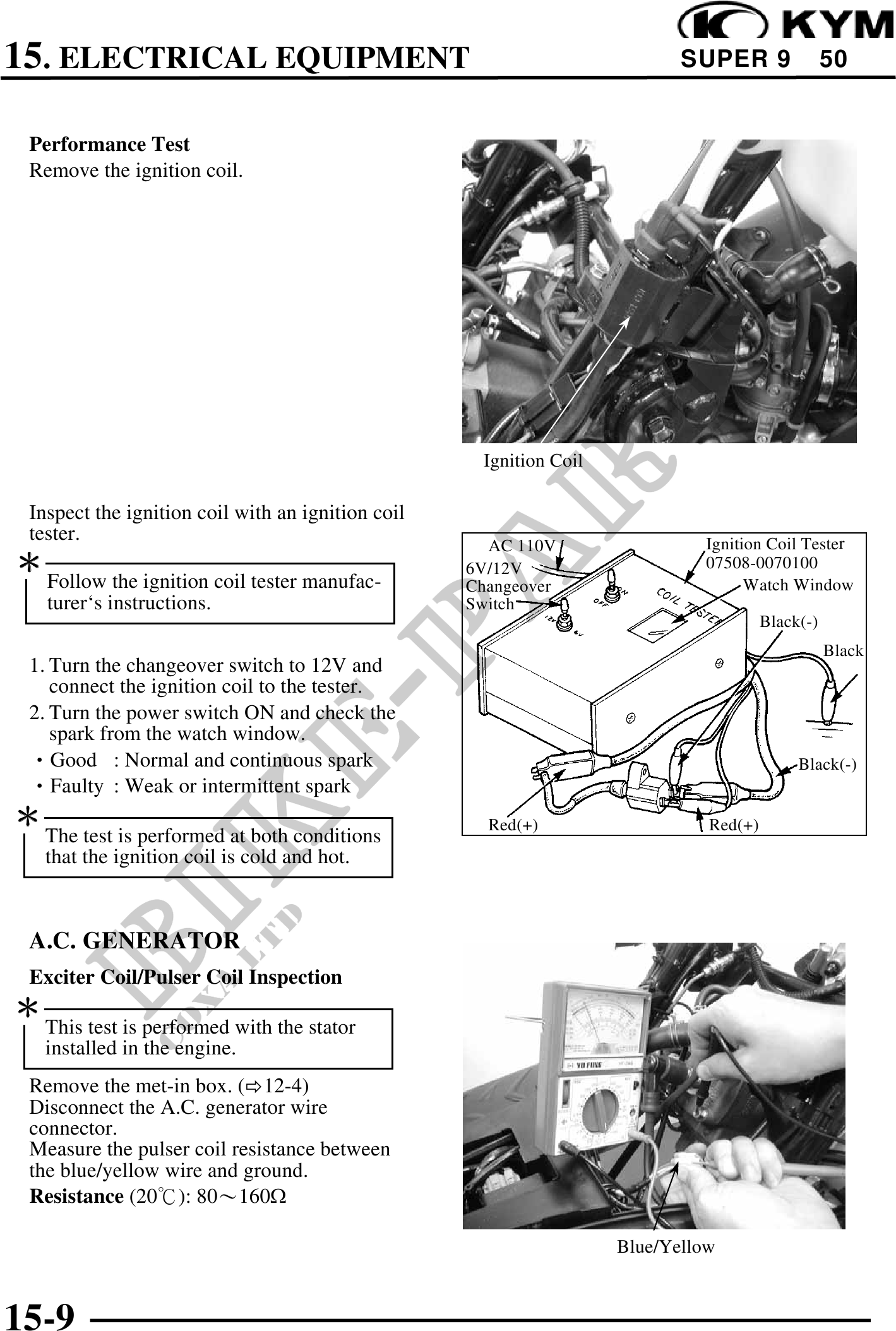

          15. ELECTRICAL EQUIPMENT                                                   SUPER 9                50


 Performance Test
 Remove the ignition coil.




                                                    Ignition Coil

 Inspect the ignition coil with an ignition coil
 tester.                                                                     Ignition Coil Tester
                                                     AC 110V
                                                   6V/12V                    07508-0070100
   Follow the ignition coil tester manufac-        Changeover                      Watch Window
   turer`s instructions.                           Switch
                                                                                       Black(-)
                                                                                                  Black
 1. Turn the changeover switch to 12V and
    connect the ignition coil to the tester.
 2. Turn the power switch ON and check the
    spark from the watch window.
 Good : Normal and continuous spark                                                         Black(-)
 Faulty : Weak or intermittent spark
                                                     Red(+)                   Red(+)
   The test is performed at both conditions
   that the ignition coil is cold and hot.



 A.C. GENERATOR
 Exciter Coil/Pulser Coil Inspection

   This test is performed with the stator
   installed in the engine.
 Remove the met-in box. ( 12-4)
 Disconnect the A.C. generator wire
 connector.
 Measure the pulser coil resistance between
 the blue/yellow wire and ground.
 Resistance (20): 80160

                                                                    Blue/Yellow



15-9
