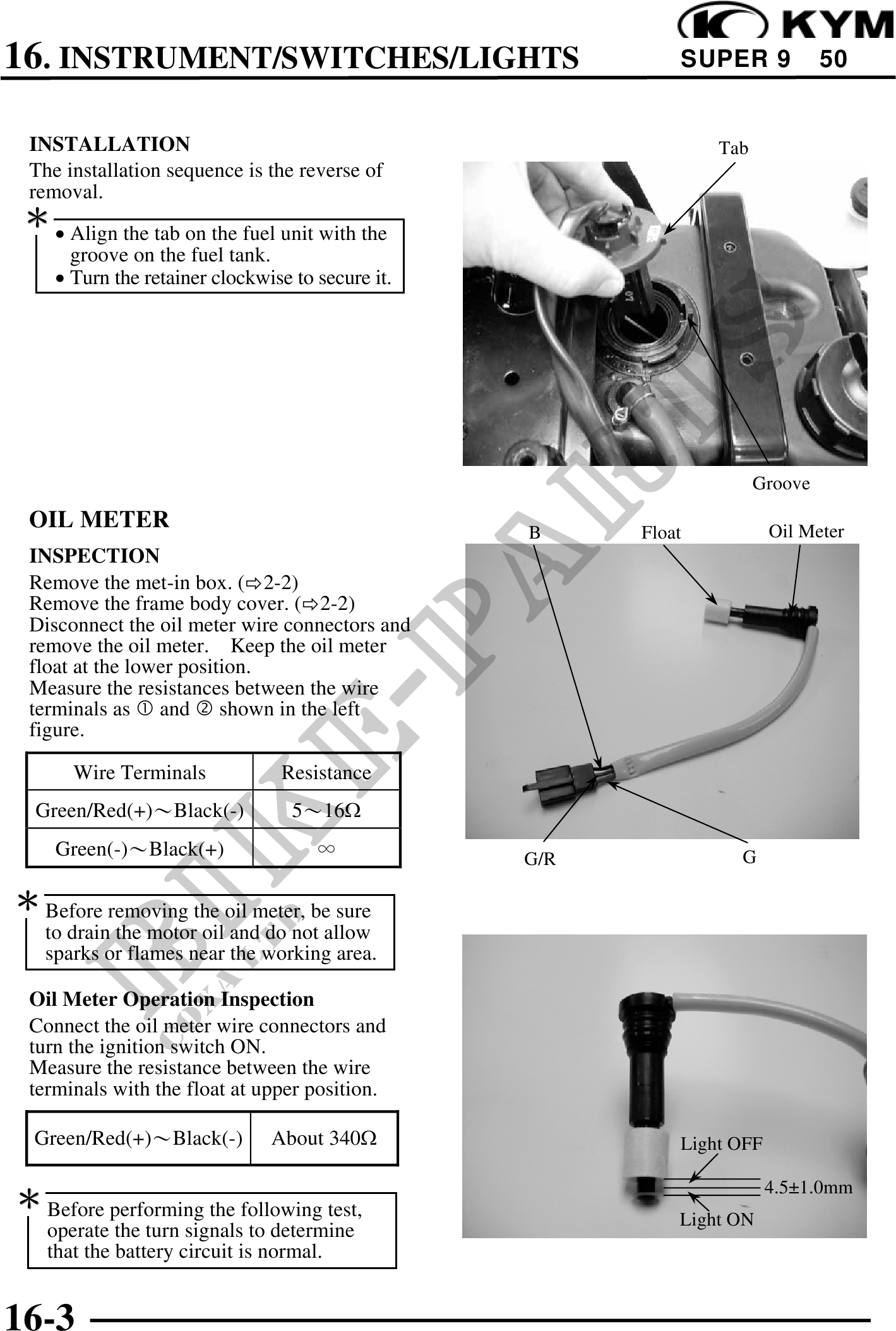

          16. INSTRUMENT/SWITCHES/LIGHTS                                  SUPER 9          50


 INSTALLATION                                                     Tab
 The installation sequence is the reverse of
 removal.
  · Align the tab on the fuel unit with the
      groove on the fuel tank.
    · Turn the retainer clockwise to secure it.




                                                                        Groove
 OIL METER                                        B     Float            Oil Meter
 INSPECTION
 Remove the met-in box. ( 2-2)
 Remove the frame body cover. ( 2-2)
 Disconnect the oil meter wire connectors and
 remove the oil meter. Keep the oil meter
 float at the lower position.
 Measure the resistances between the wire
 terminals as and shown in the left
 figure.

      Wire Terminals            Resistance
  Green/Red(+)Black(-)            516
    Green(-)Black(+)                              G/R               G

 Before removing the oil meter, be sure
   to drain the motor oil and do not allow
   sparks or flames near the working area.

 Oil Meter Operation Inspection
 Connect the oil meter wire connectors and
 turn the ignition switch ON.
 Measure the resistance between the wire
 terminals with the float at upper position.

  Green/Red(+)Black(-)         About 340                    Light OFF

                                                                         4.51.0mm
 Before performing the following test,
                                                            Light ON
   operate the turn signals to determine
   that the battery circuit is normal.


16-3
