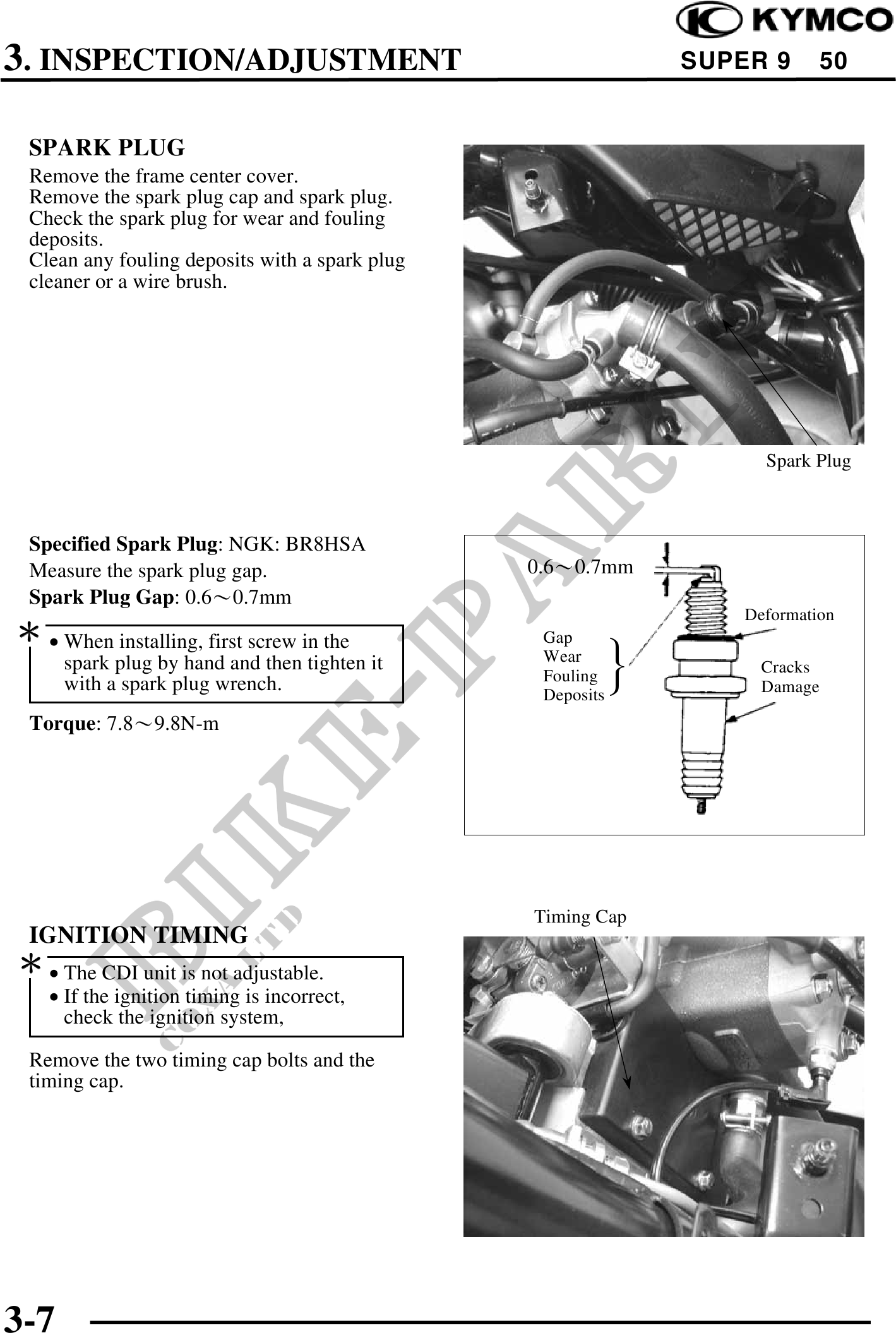

3. INSPECTION/ADJUSTMENT SUPER 9 50
SPARK PLUG
Remove the frame center cover.
Remove the spark plug cap and spark plug.
Check the spark plug for wear and fouling
deposits.
Clean any fouling deposits with a spark plug
cleaner or a wire brush.
Spark Plug
Specified Spark Plug: NGK: BR8HSA
Measure the spark plug gap. 0.60.7mm
Spark Plug Gap: 0.60.7mm
Deformation
· When installing, first screw in the Gap
spark plug by hand and then tighten it
with a spark plug wrench.
Wear
Fouling
Deposits
Cracks
Damage
Torque: 7.89.8N-m
Timing Cap
IGNITION TIMING
· The CDI unit is not adjustable.
· If the ignition timing is incorrect,
check the ignition system,
Remove the two timing cap bolts and the
timing cap.
3-7
