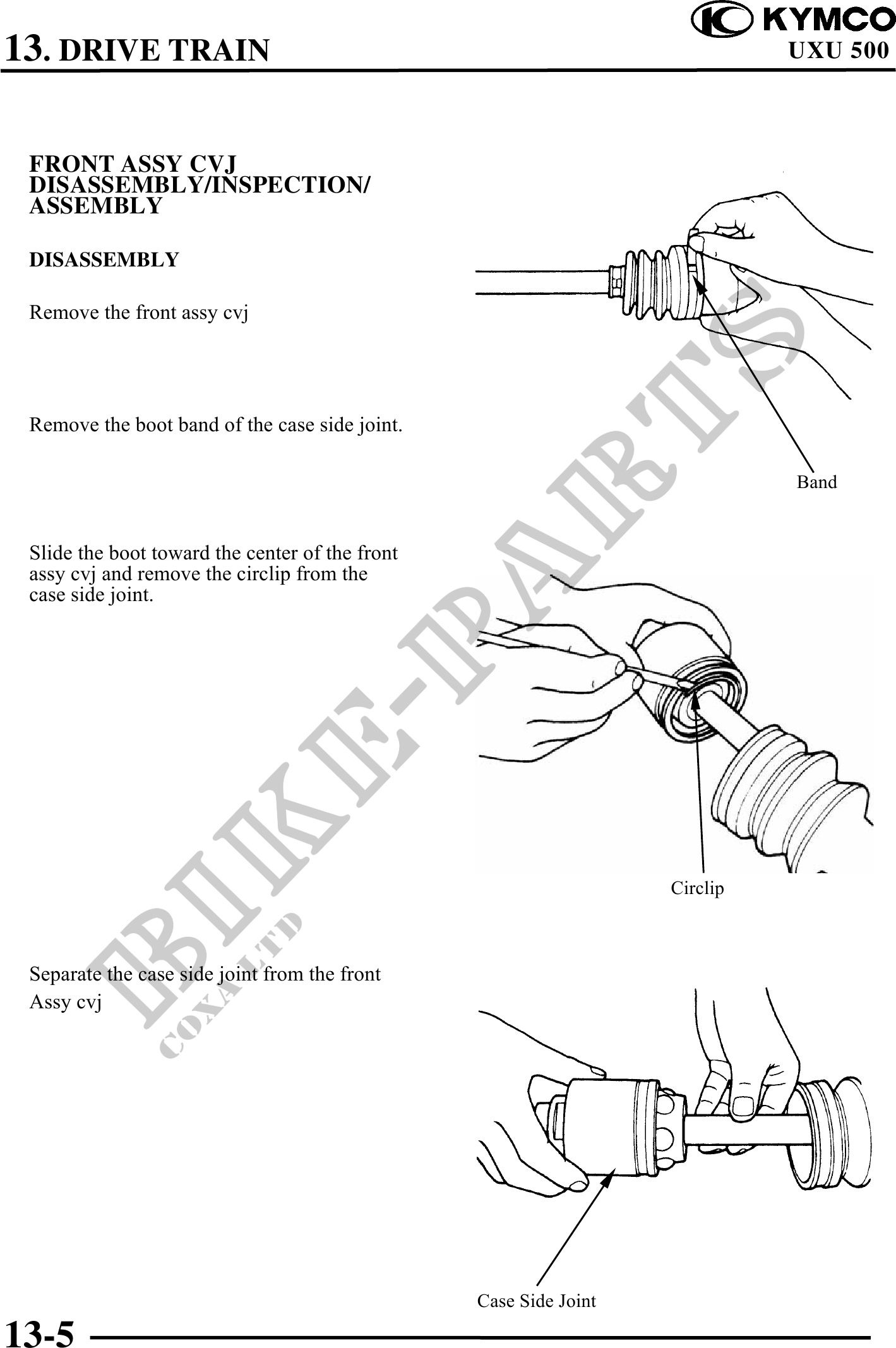

          13. DRIVE TRAIN                                                              UXU 500



 FRONT ASSY CVJ
 DISASSEMBLY/INSPECTION/
 ASSEMBLY

 DISASSEMBLY

 Remove the front assy cvj




 Remove the boot band of the case side joint.

                                                                             Band


 Slide the boot toward the center of the front
 assy cvj and remove the circlip from the
 case side joint.




                                                                   Circlip



 Separate the case side joint from the front
 Assy cvj




                                                 Case Side Joint
