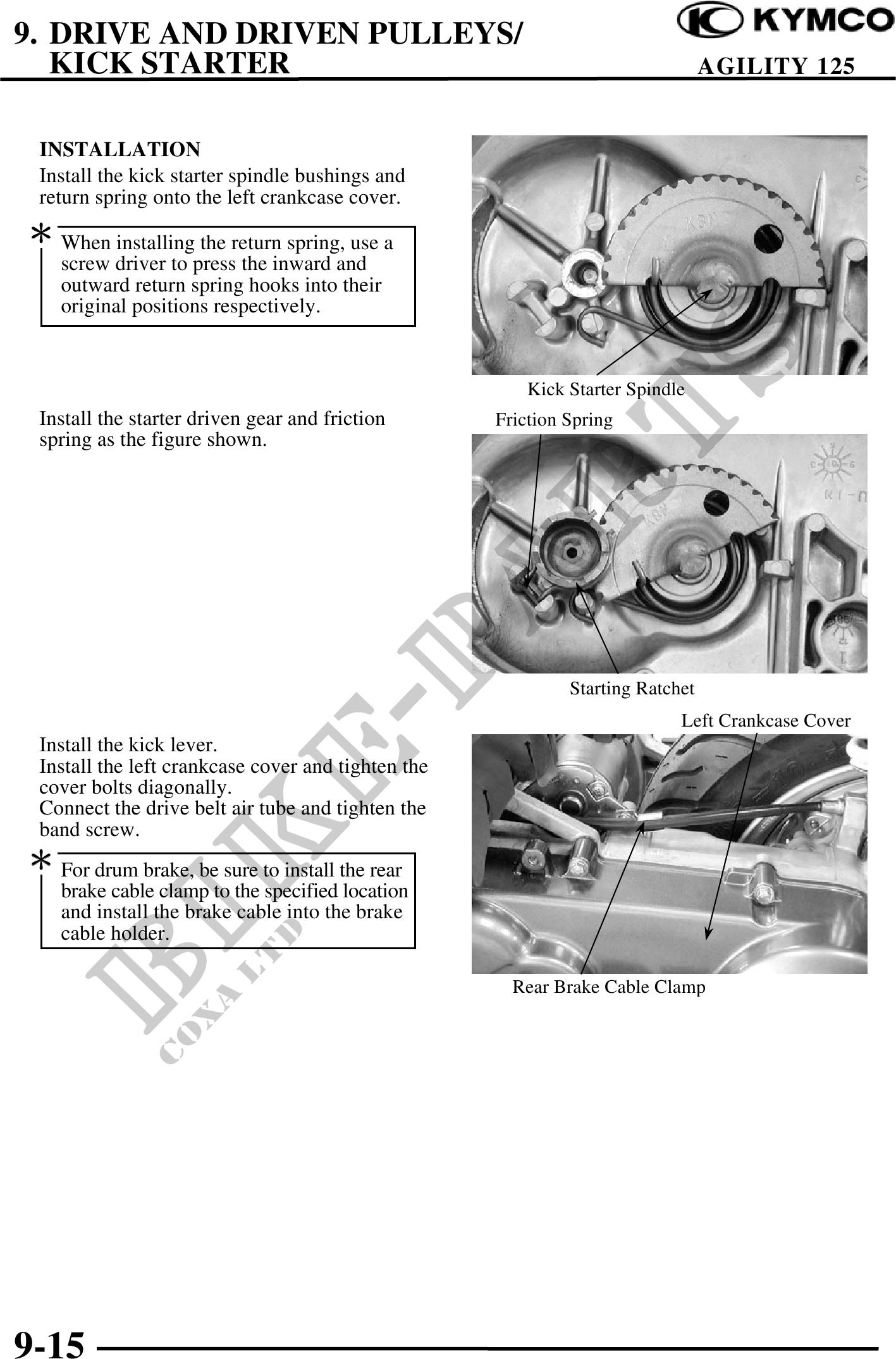

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER AGILITY 125
INSTALLATION
Install the kick starter spindle bushings and
return spring onto the left crankcase cover.
When installing the return spring, use a
screw driver to press the inward and
outward return spring hooks into their
original positions respectively.
Kick Starter Spindle
Install the starter driven gear and friction Friction Spring
spring as the figure shown.
Starting Ratchet
Left Crankcase Cover
Install the kick lever.
Install the left crankcase cover and tighten the
cover bolts diagonally.
Connect the drive belt air tube and tighten the
band screw.
For drum brake, be sure to install the rear
brake cable clamp to the specified location
and install the brake cable into the brake
cable holder.
Rear Brake Cable Clamp
9-15
