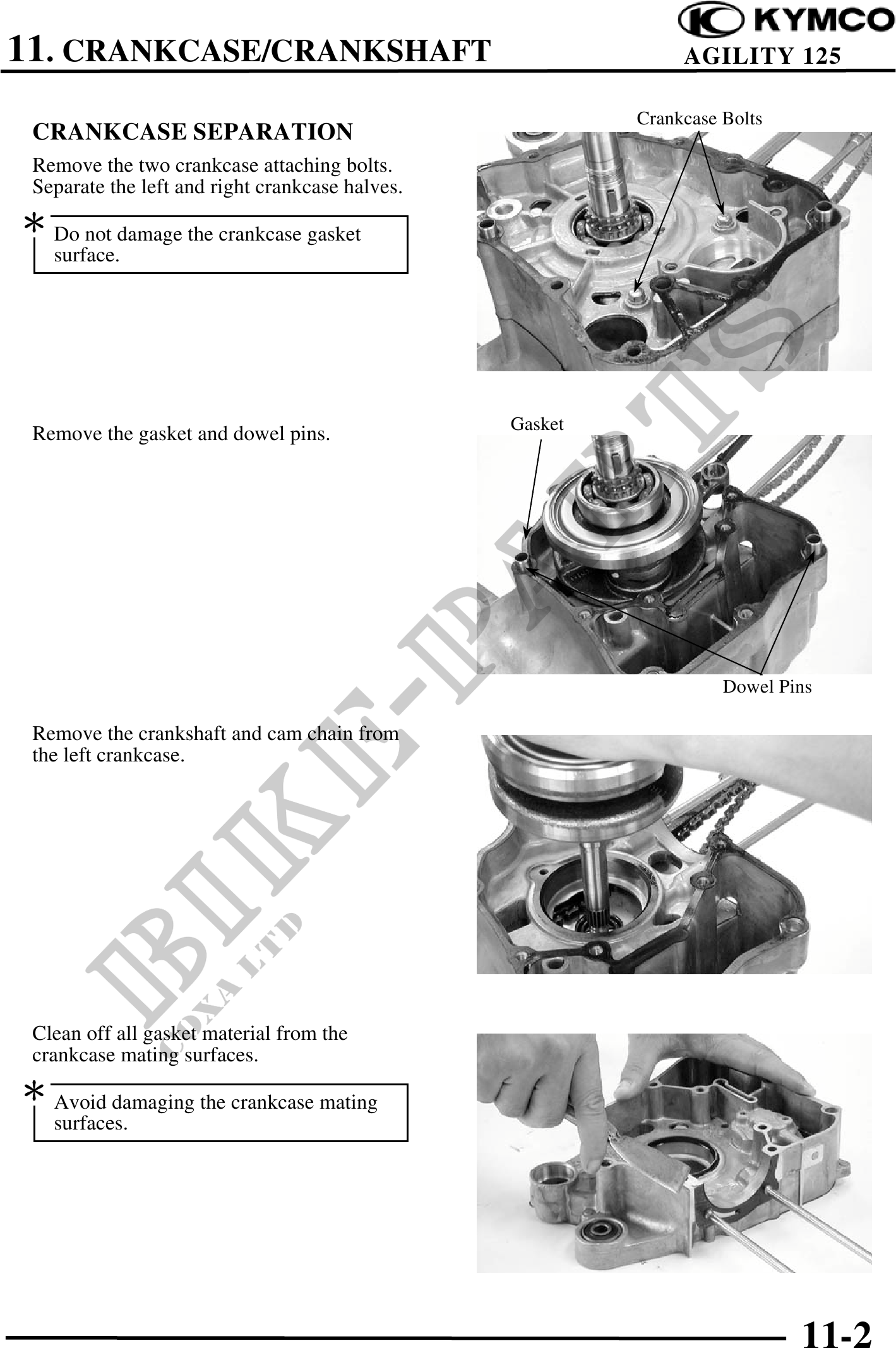

11. CRANKCASE/CRANKSHAFT AGILITY 125
Crankcase Bolts
CRANKCASE SEPARATION
Remove the two crankcase attaching bolts.
Separate the left and right crankcase halves.
Do not damage the crankcase gasket
surface.
Gasket
Remove the gasket and dowel pins.
Dowel Pins
Remove the crankshaft and cam chain from
the left crankcase.
Clean off all gasket material from the
crankcase mating surfaces.
Avoid damaging the crankcase mating
surfaces.
11-2
