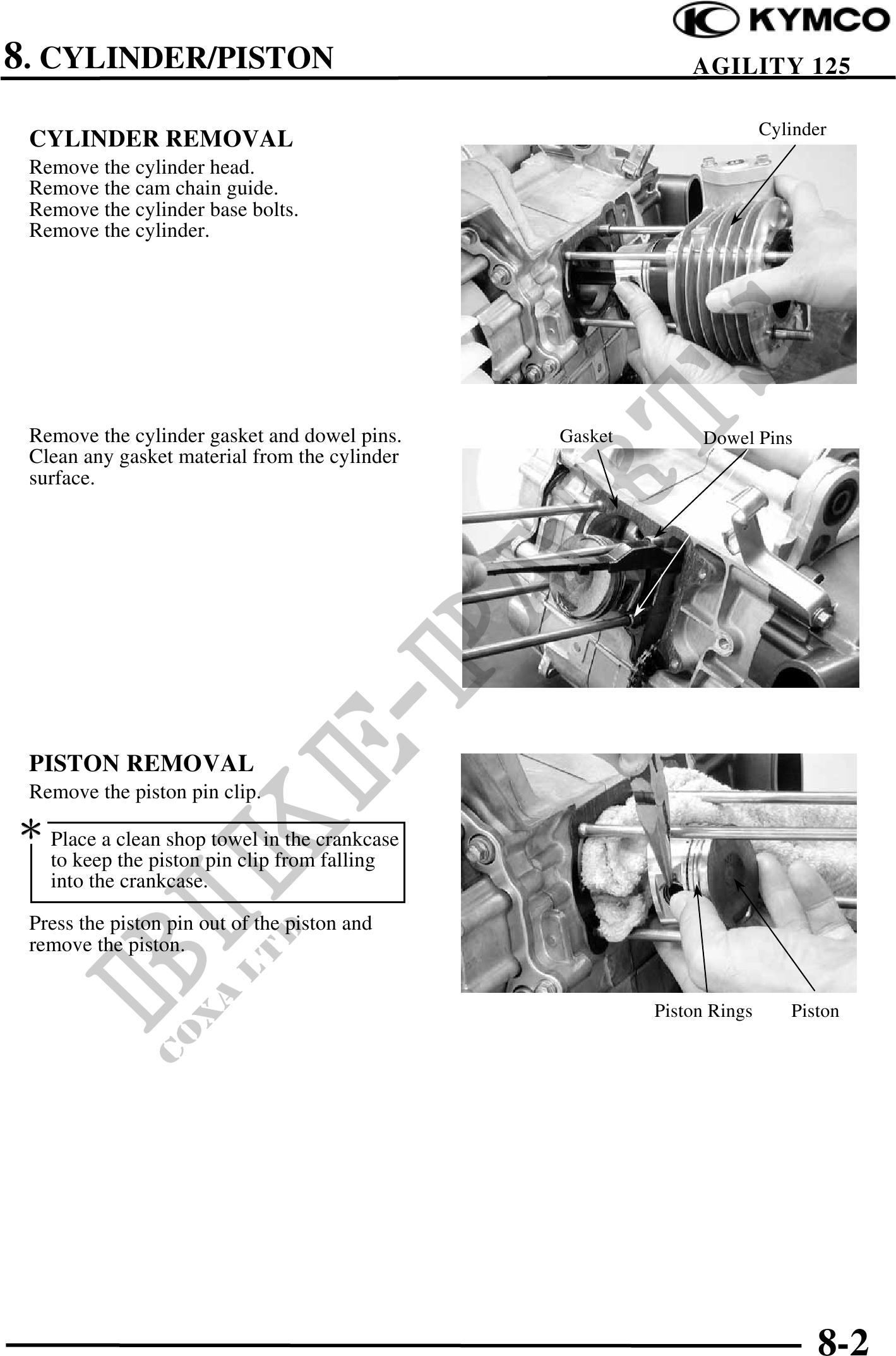

8. CYLINDER/PISTON AGILITY 125
Cylinder
CYLINDER REMOVAL
Remove the cylinder head.
Remove the cam chain guide.
Remove the cylinder base bolts.
Remove the cylinder.
Remove the cylinder gasket and dowel pins. Gasket Dowel Pins
Clean any gasket material from the cylinder
surface.
PISTON REMOVAL
Remove the piston pin clip.
Place a clean shop towel in the crankcase
to keep the piston pin clip from falling
into the crankcase.
Press the piston pin out of the piston and
remove the piston.
Piston Rings Piston
8-2
