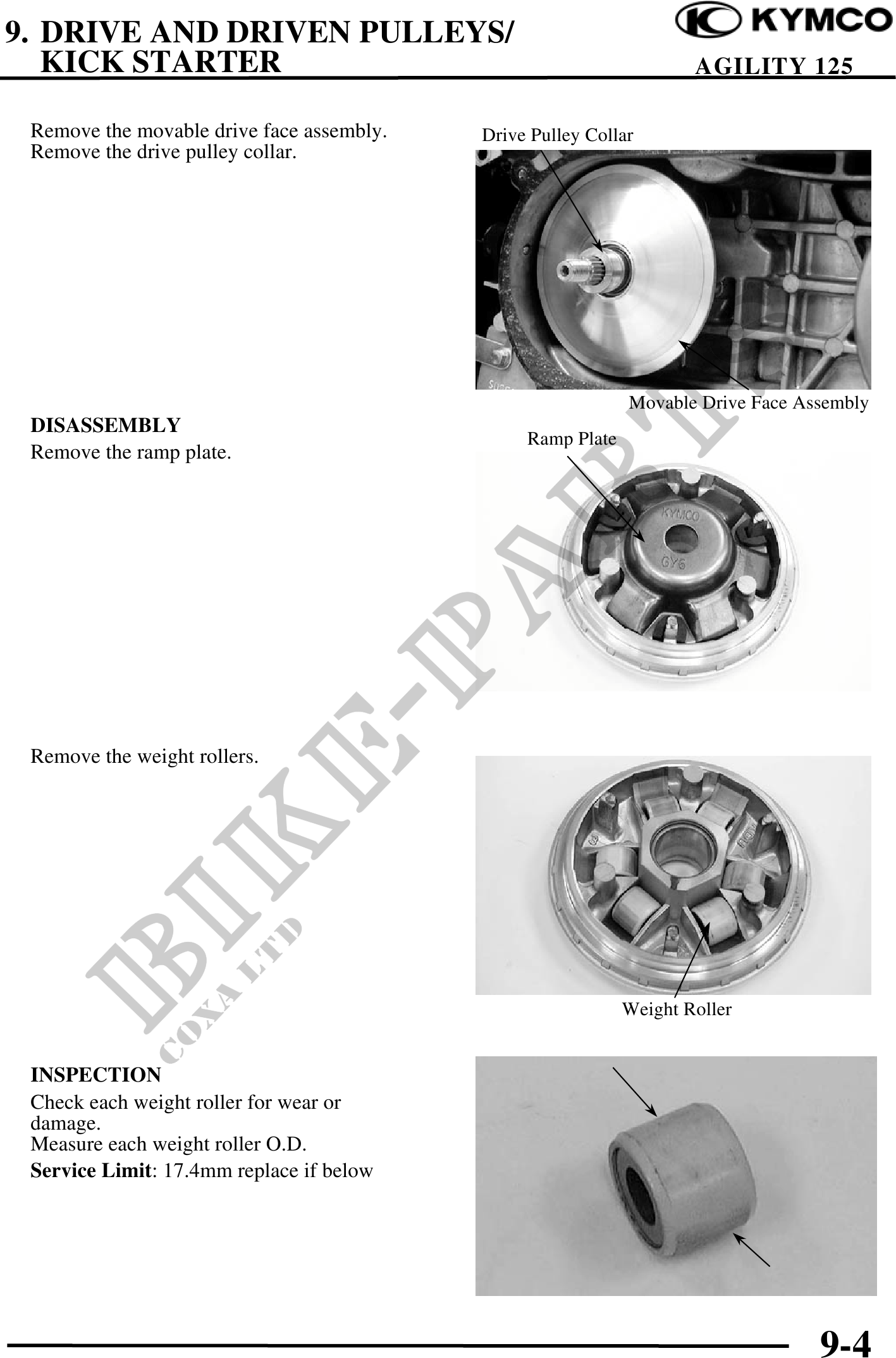

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER AGILITY 125
Remove the movable drive face assembly. Drive Pulley Collar
Remove the drive pulley collar.
Movable Drive Face Assembly
DISASSEMBLY
Ramp Plate
Remove the ramp plate.
Remove the weight rollers.
Weight Roller
INSPECTION
Check each weight roller for wear or
damage.
Measure each weight roller O.D.
Service Limit: 17.4mm replace if below
9-4
