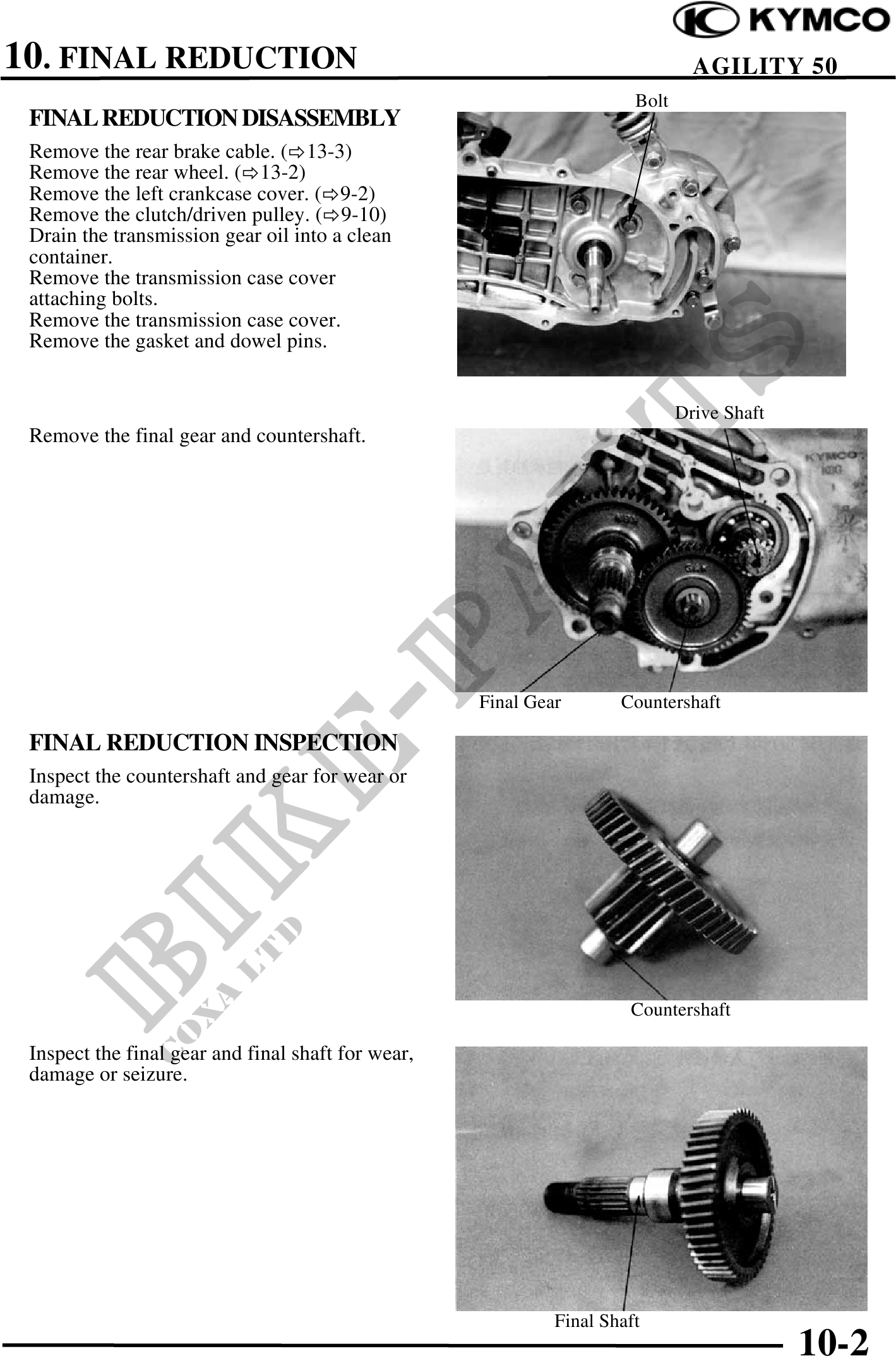

          10. FINAL REDUCTION                                                             AGILITY 50
                                                                       Bolt
 FINAL REDUCTION DISASSEMBLY
 Remove the rear brake cable. ( 13-3)
 Remove the rear wheel. ( 13-2)
 Remove the left crankcase cover. ( 9-2)
 Remove the clutch/driven pulley. ( 9-10)
 Drain the transmission gear oil into a clean
 container.
 Remove the transmission case cover
 attaching bolts.
 Remove the transmission case cover.
 Remove the gasket and dowel pins.


                                                                              Drive Shaft
 Remove the final gear and countershaft.




                                                    Final Gear       Countershaft

 FINAL REDUCTION INSPECTION
 Inspect the countershaft and gear for wear or
 damage.




                                                                      Countershaft

 Inspect the final gear and final shaft for wear,
 damage or seizure.




                                                             Final Shaft
                                                                                            10-2
