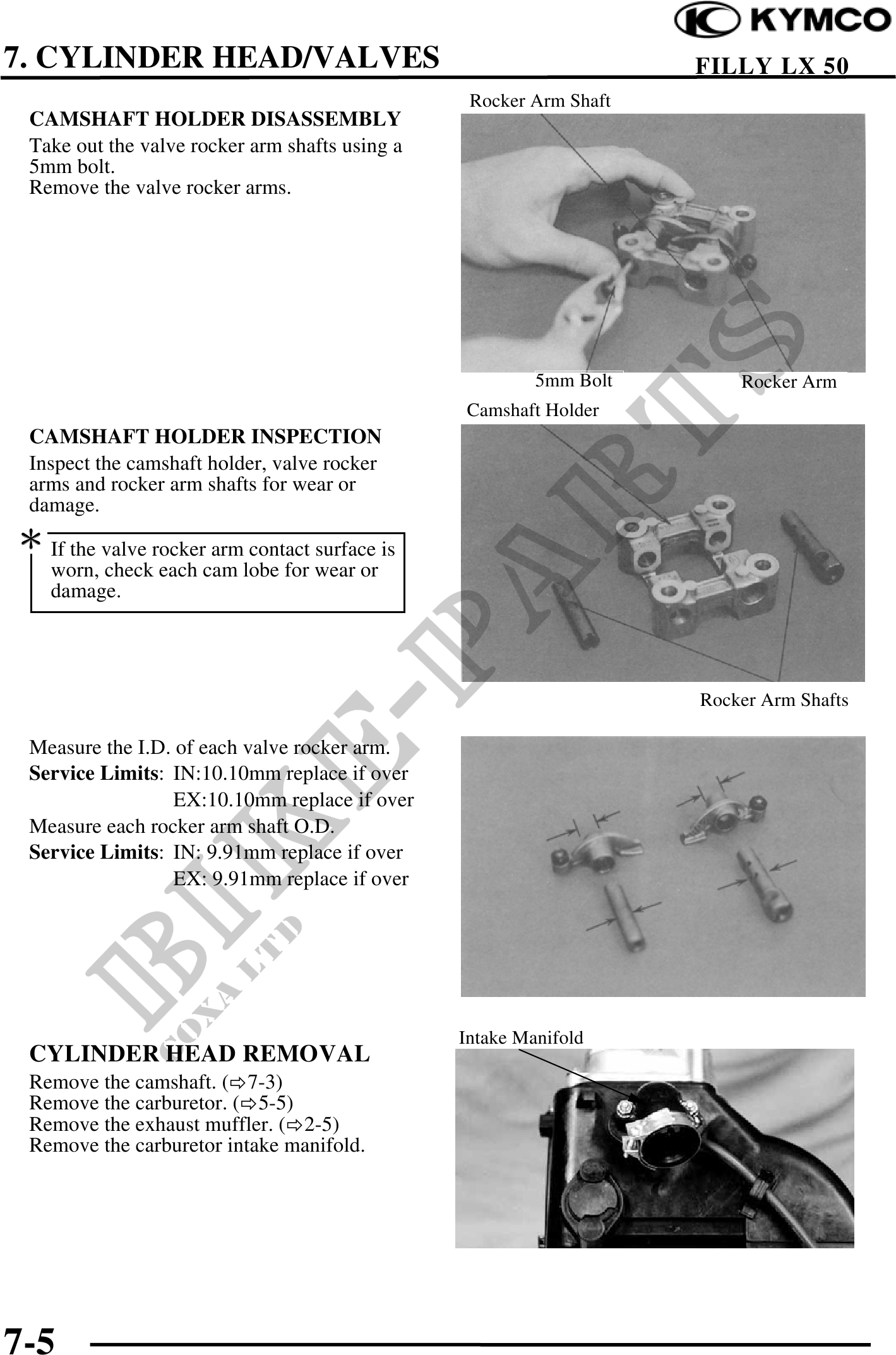

          7. CYLINDER HEAD/VALVES                                             FILLY LX 50
                                                 Rocker Arm Shaft
 CAMSHAFT HOLDER DISASSEMBLY
 Take out the valve rocker arm shafts using a
 5mm bolt.
 Remove the valve rocker arms.




                                                         5mm Bolt       Rocker Arm
                                                Camshaft Holder
 CAMSHAFT HOLDER INSPECTION
 Inspect the camshaft holder, valve rocker
 arms and rocker arm shafts for wear or
 damage.
 If the valve rocker arm contact surface is
    worn, check each cam lobe for wear or
    damage.




                                                                    Rocker Arm Shafts

 Measure the I.D. of each valve rocker arm.
 Service Limits: IN:10.10mm replace if over
                 EX:10.10mm replace if over
 Measure each rocker arm shaft O.D.
 Service Limits: IN: 9.91mm replace if over
                 EX: 9.91mm replace if over




                                                Intake Manifold
 CYLINDER HEAD REMOVAL
 Remove the camshaft. ( 7-3)
 Remove the carburetor. ( 5-5)
 Remove the exhaust muffler. ( 2-5)
 Remove the carburetor intake manifold.




7-5
