agility 50 3 Workshop-manual : Page 183

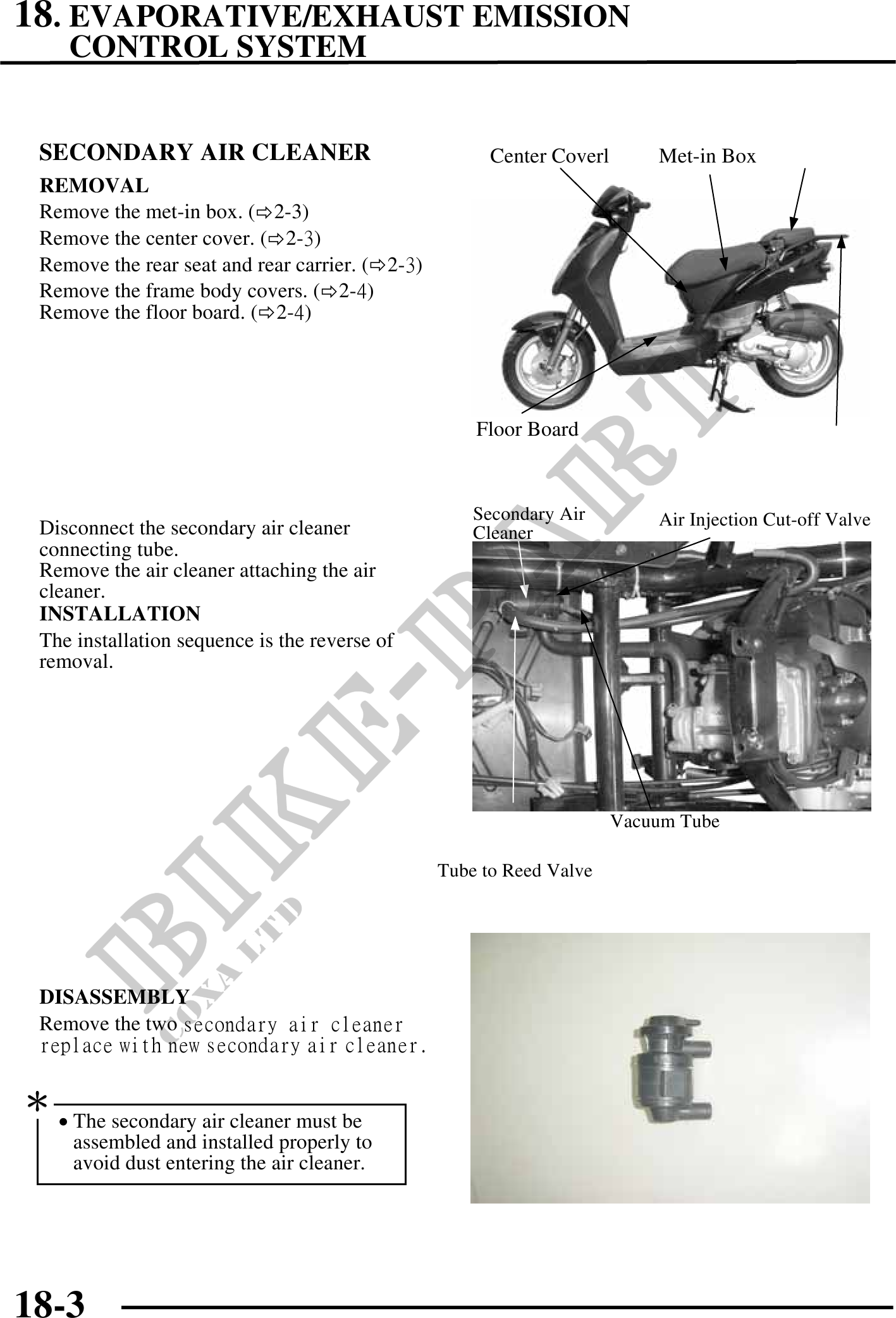

          18. EVAPORATIVE/EXHAUST EMISSION
    CONTROL SYSTEM


 SECONDARY AIR CLEANER                                 Center Coverl       Met-in Box
 REMOVAL
 Remove the met-in box. ( 2-3)
 Remove the center cover. ( 2-3)
 Remove the rear seat and rear carrier. ( 2-3)
 Remove the frame body covers. ( 2-4)
 Remove the floor board. ( 2-4)




                                                     Floor Board


                                                     Secondary Air         Air Injection Cut-off Valve
 Disconnect the secondary air cleaner                Cleaner
 connecting tube.
 Remove the air cleaner attaching the air
 cleaner.
 INSTALLATION
 The installation sequence is the reverse of
 removal.




                                                                       Vacuum Tube

                                                 Tube to Reed Valve




 DISASSEMBLY
 Remove the two secondary air cleaner
 replace with new secondary air cleaner.


   · The secondary air cleaner must be
     assembled and installed properly to
     avoid dust entering the air cleaner.




18-3
