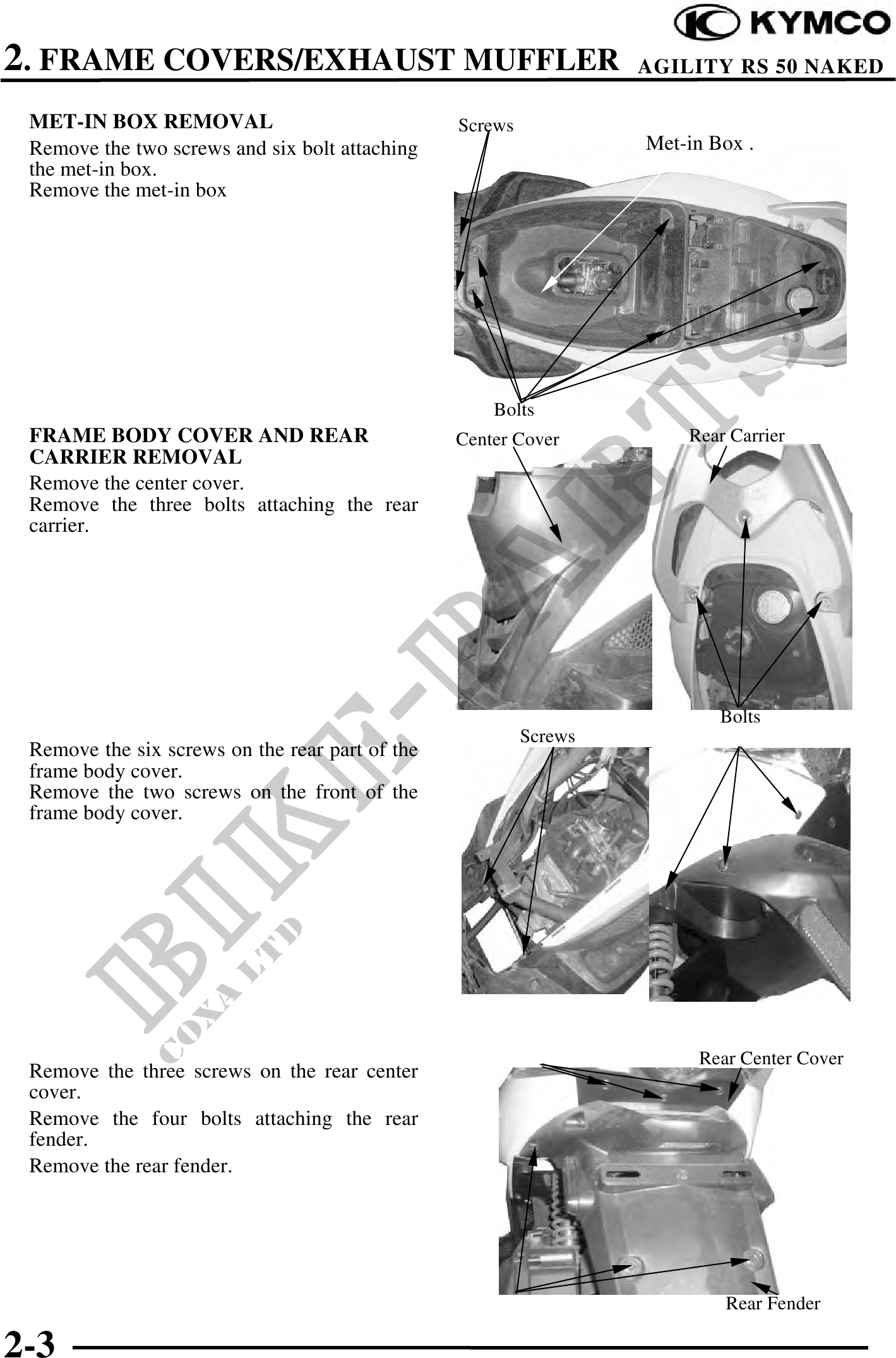

2. FRAME COVERS/EXHAUST MUFFLER AGILITY RS 50 NAKED
MET-IN BOX REMOVAL Screws
Remove the two screws and six bolt attaching Met-in Box .
the met-in box.
Remove the met-in box
Bolts
FRAME BODY COVER AND REAR Center Cover Rear Carrier
CARRIER REMOVAL
Remove the center cover.
Remove the three bolts attaching the rear
carrier.
Bolts
Screws
Remove the six screws on the rear part of the
frame body cover.
Remove the two screws on the front of the
frame body cover.
Rear Center Cover
Remove the three screws on the rear center
cover.
Remove the four bolts attaching the rear
fender.
Remove the rear fender.
Rear Fender
2-3
