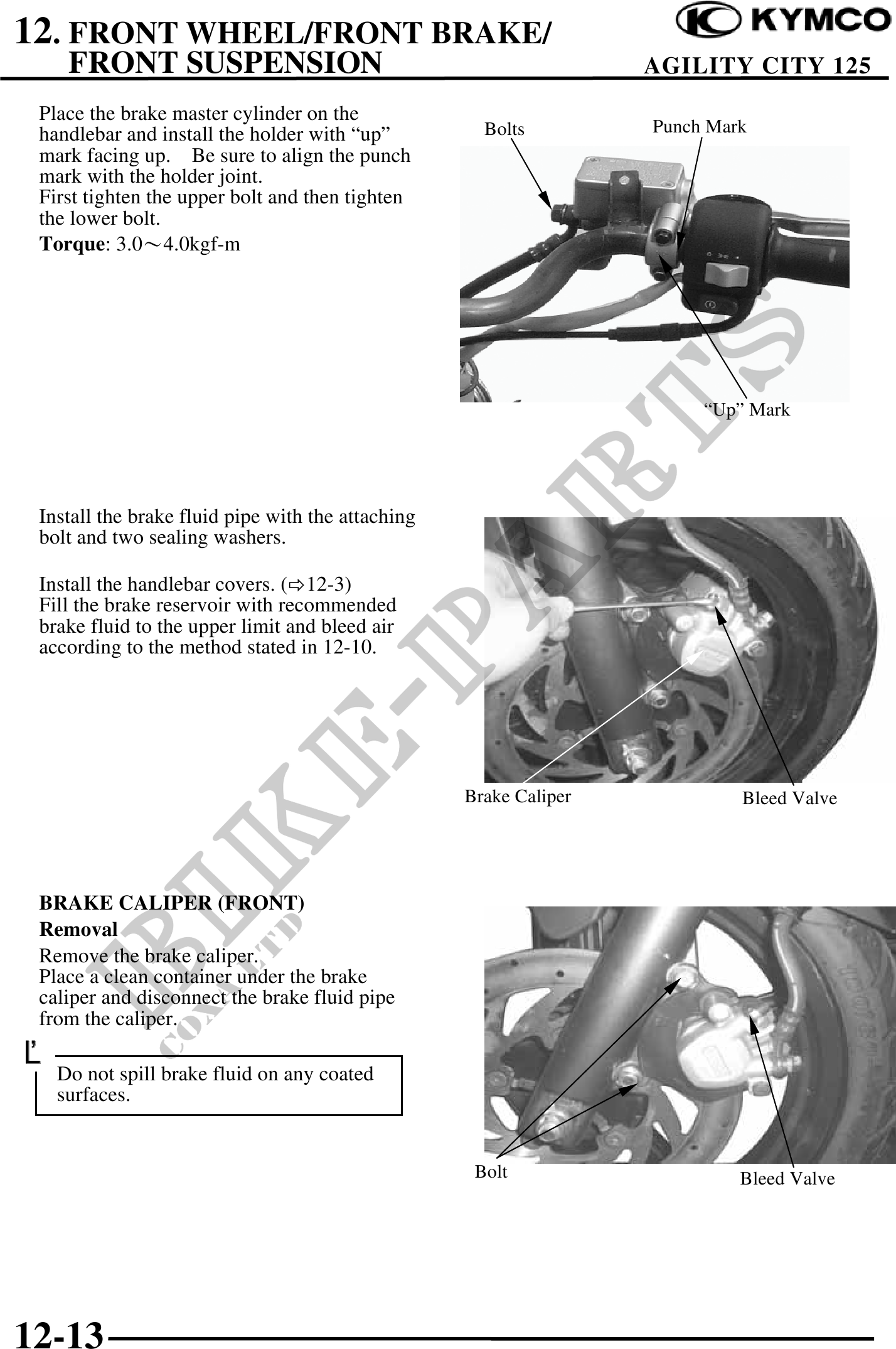

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                               AGILITY CITY 125
 Place the brake master cylinder on the
 handlebar and install the holder with "up"          Bolts         Punch Mark
 mark facing up. Be sure to align the punch
 mark with the holder joint.
 First tighten the upper bolt and then tighten
 the lower bolt.
 Torque: 3.04.0kgf-m




                                                                        "Up" Mark




 Install the brake fluid pipe with the attaching
 bolt and two sealing washers.

 Install the handlebar covers. ( 12-3)
 Fill the brake reservoir with recommended
 brake fluid to the upper limit and bleed air
 according to the method stated in 12-10.




                                                   Brake Caliper            Bleed Valve




 BRAKE CALIPER (FRONT)
 Removal
 Remove the brake caliper.
 Place a clean container under the brake
 caliper and disconnect the brake fluid pipe
 from the caliper.

   Do not spill brake fluid on any coated
   surfaces.


                                                    Bolt                    Bleed Valve




12-13
