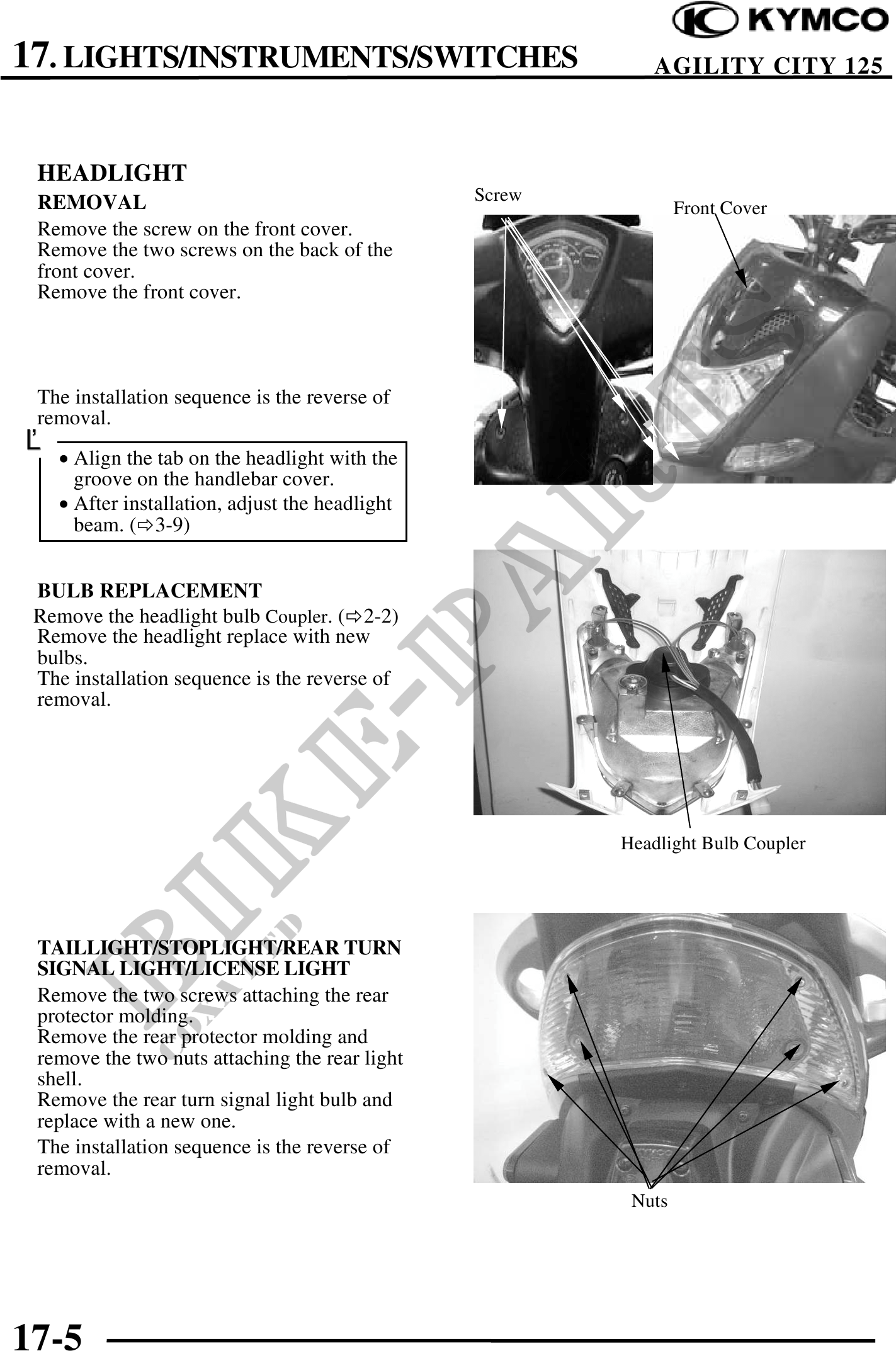

          17. LIGHTS/INSTRUMENTS/SWITCHES                              AGILITY CITY 125



 HEADLIGHT
 REMOVAL                                         Screw
                                                                 Front Cover
 Remove the screw on the front cover.
 Remove the two screws on the back of the
 front cover.
 Remove the front cover.




 The installation sequence is the reverse of
 removal.

    · Align the tab on the headlight with the
      groove on the handlebar cover.
    · After installation, adjust the headlight
      beam. ( 3-9)


 BULB REPLACEMENT
 Remove the headlight bulb Coupler. ( 2-2)
 Remove the headlight replace with new
 bulbs.
 The installation sequence is the reverse of
 removal.




                                                         Headlight Bulb Coupler




 TAILLIGHT/STOPLIGHT/REAR TURN
 SIGNAL LIGHT/LICENSE LIGHT
 Remove the two screws attaching the rear
 protector molding.
 Remove the rear protector molding and
 remove the two nuts attaching the rear light
 shell.
 Remove the rear turn signal light bulb and
 replace with a new one.
 The installation sequence is the reverse of
 removal.
                                                          Nuts




17-5
