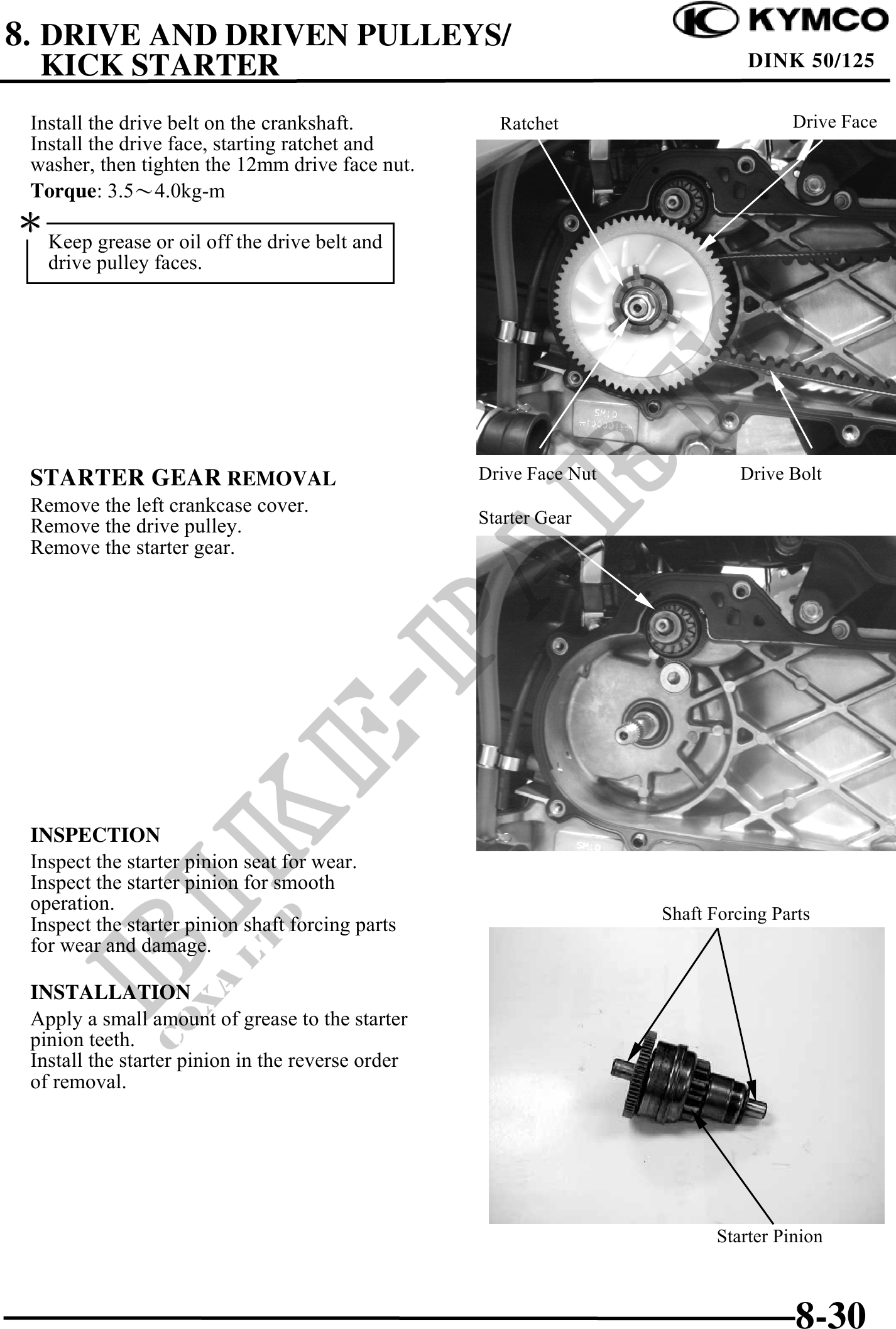

8. DRIVE AND DRIVEN PULLEYS/
KICK STARTER DINK 50/125
Install the drive belt on the crankshaft. Ratchet Drive Face
Install the drive face, starting ratchet and
washer, then tighten the 12mm drive face nut.
Torque: 3.54.0kg-m
Keep grease or oil off the drive belt and
drive pulley faces.
STARTER GEAR REMOVAL Drive Face Nut Drive Bolt
Remove the left crankcase cover.
Remove the drive pulley. Starter Gear
Remove the starter gear.
INSPECTION
Inspect the starter pinion seat for wear.
Inspect the starter pinion for smooth
operation. Shaft Forcing Parts
Inspect the starter pinion shaft forcing parts
for wear and damage.
INSTALLATION
Apply a small amount of grease to the starter
pinion teeth.
Install the starter pinion in the reverse order
of removal.
Starter Pinion
8-30
